Damper control unit for smoke control areas
A A
Bracket and screw
SECTION A-A
DETAIL B
SCALE 1 : 2
Bracket and screw
DETAIL C
SCALE 1 : 2
DETAIL D
SCALE 1 : 2
Bracket and screw
DETAIL E
SCALE 1 : 2
OPEN

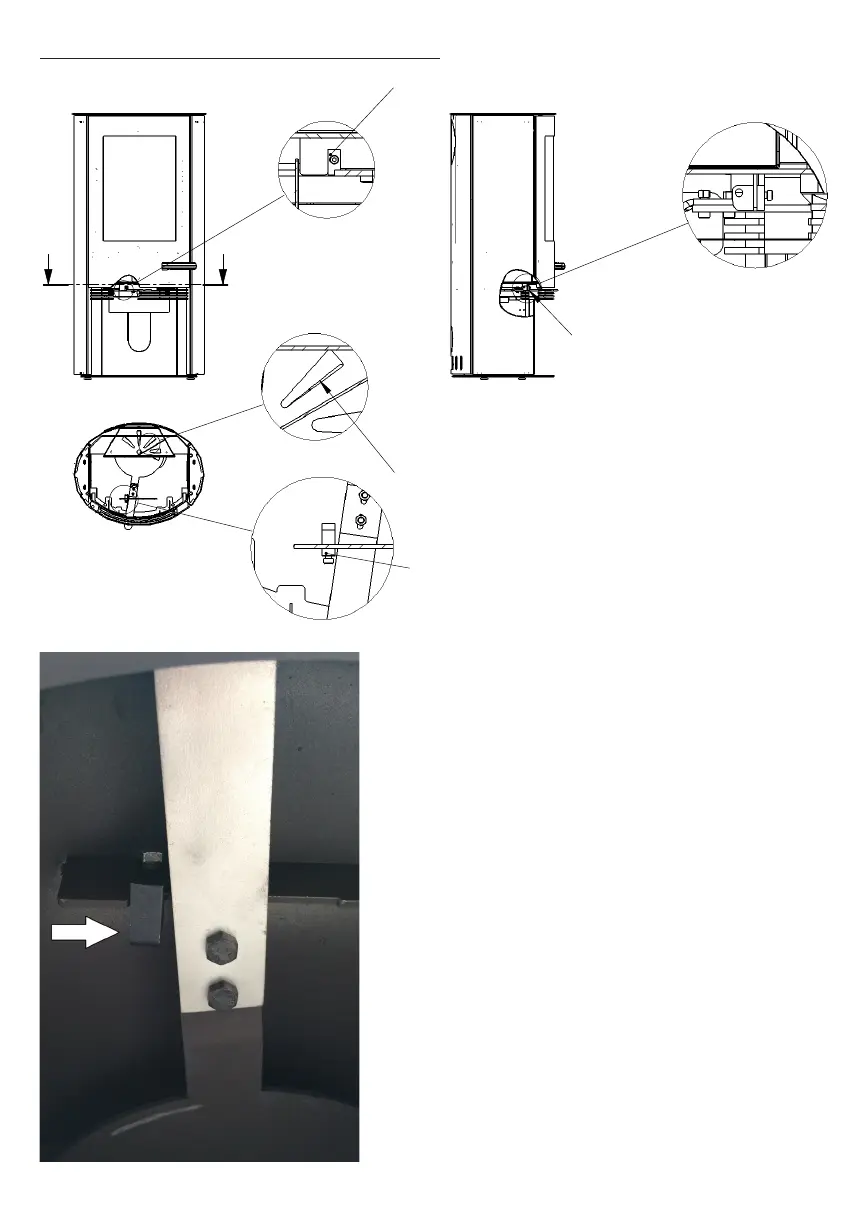

The Bracket make the secondary air open with ca. 40%
If you change the direction of the bracket the
secondary air will be open with ca. 30%.
