Termomont TOBY 20 - 7 Control Panel

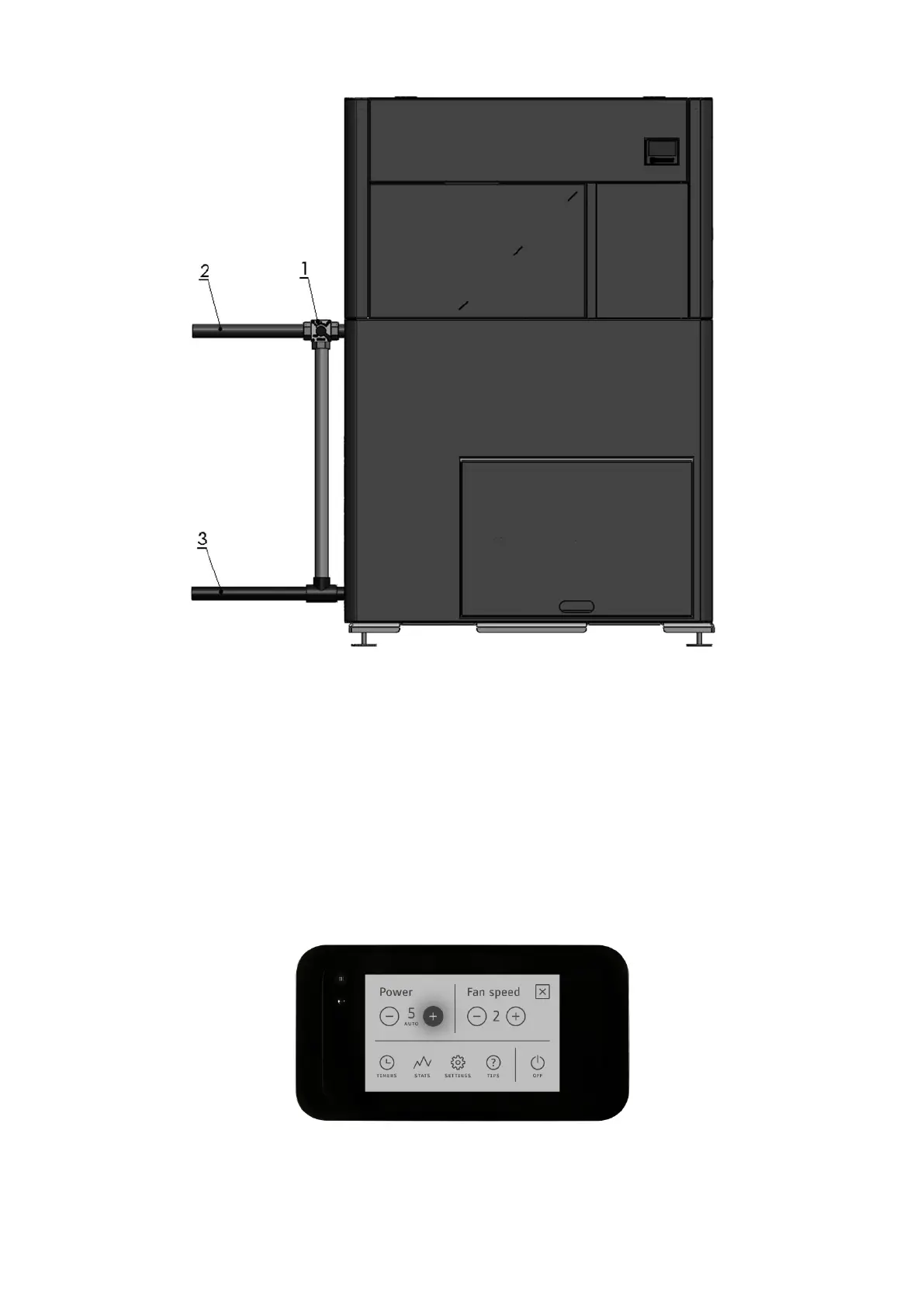

1. Mixing valve 2. FLow line 3. Return line
The purpose of the mixing valve is to raise the low temperature of the return line water which could
harm the boiler body.
7 Control panel
There is a user-friendly touch screen controller on the front side of the boiler.
Manual on the regulaiton of the boiler is attached to this manual as a separate document to be
delivered with the boiler.
14
