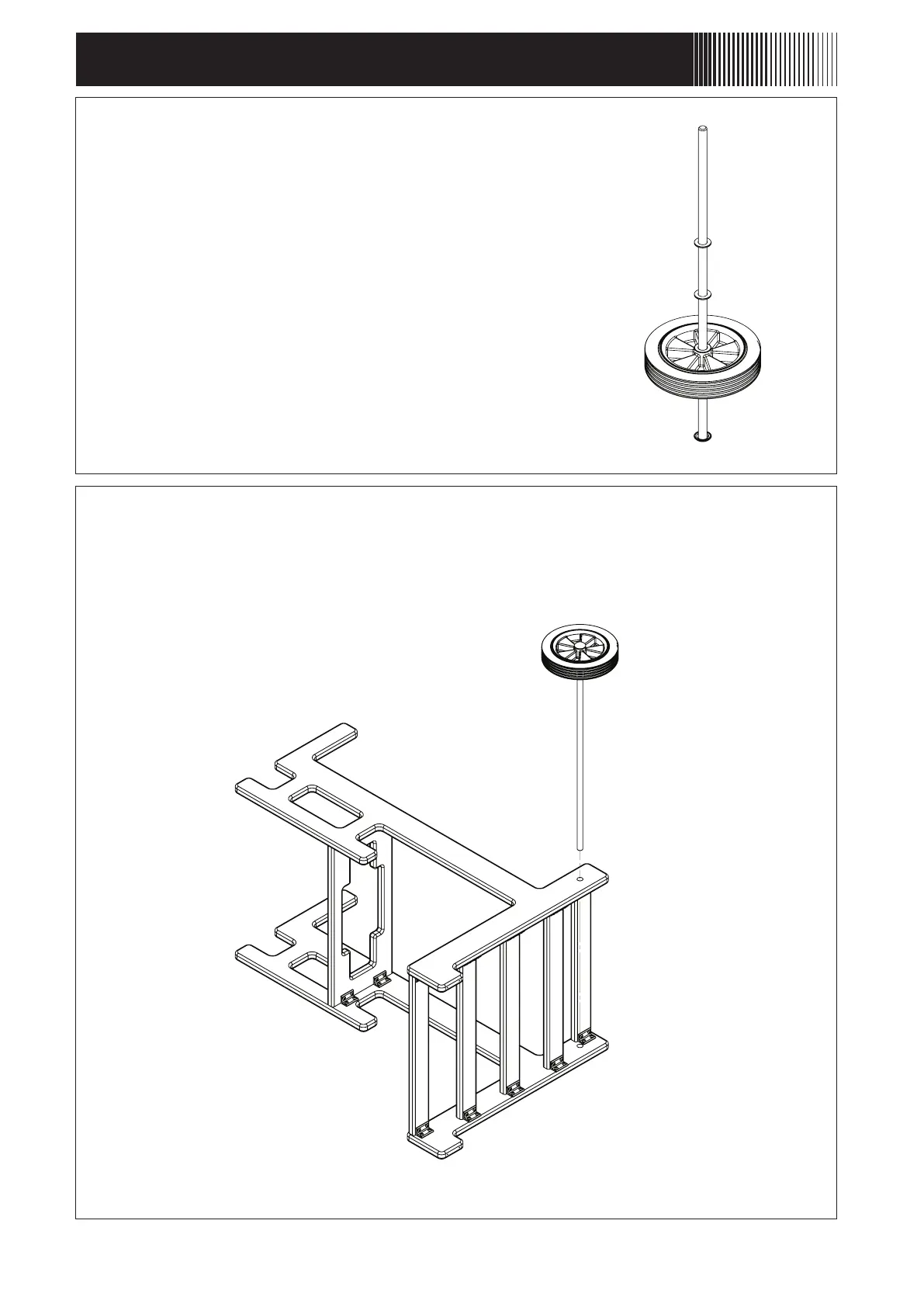

STEP 5

Slide a wheel and two axle washer over the axle

in the direction and order shown in the image.

STEP 6

With the caddy resting on its handles as shown, insert the wheel and

axle assembly from previous step through both axles holes on the

caddy’s body.

ASSEMBLY INSTRUCTIONS cont.

Assembly Instructions cont. - 6
