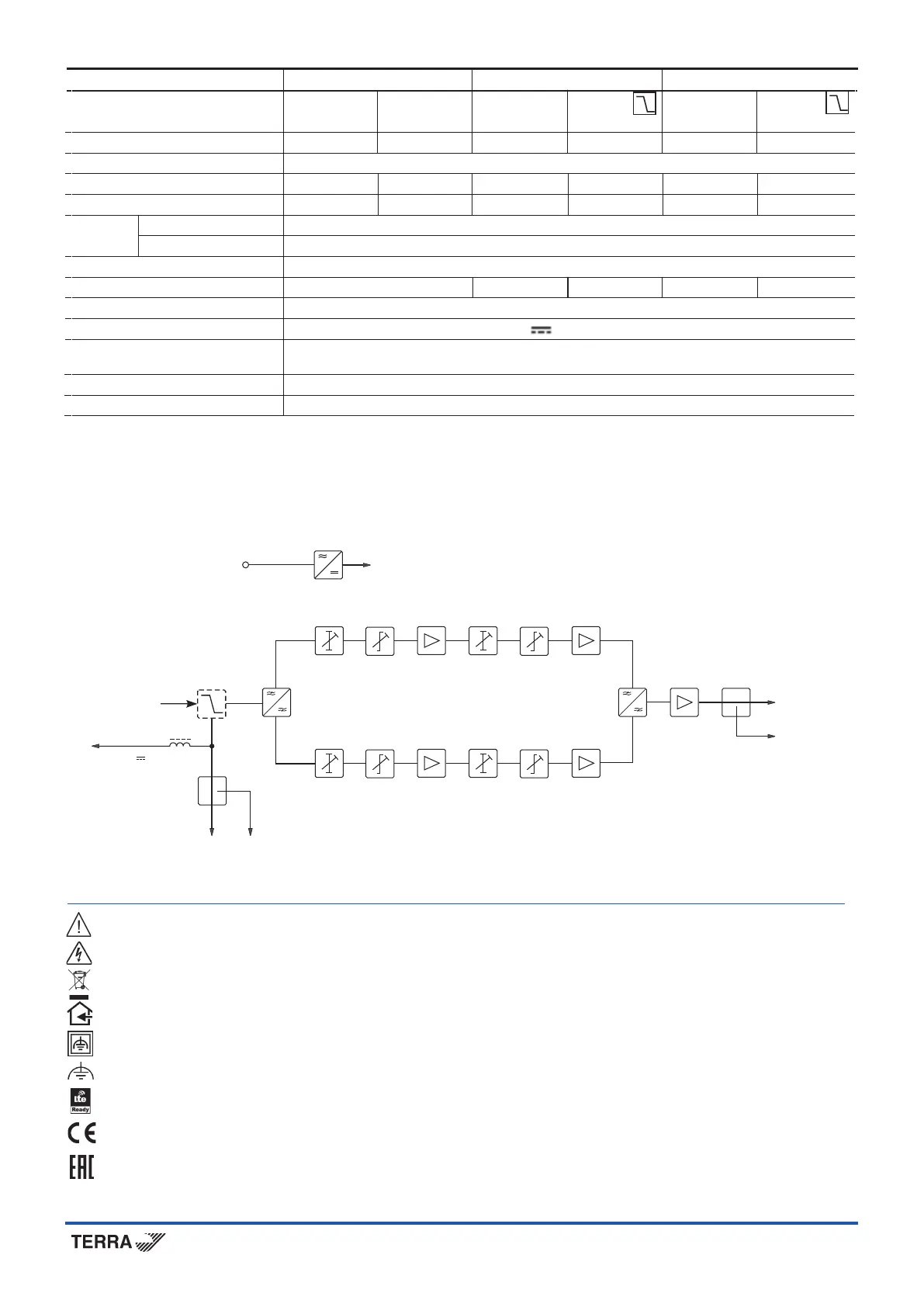

Technical characteristics
Structure diagram
HS004 HS004L HS004T
Frequency range VHF UHF VHF UHF VHF UHF
47-414 MHz 470-862 MHz 88-230 MHz 470-790 MHz 88-230 MHz 470-694 MHz
Gain 34-39 dB 39-44 dB 36-39 dB 39-44 dB 36-39 dB 39-44 dB
Flatness ± 1 dB
Gain adjustment 20 dB 14 dB 20 dB 14 dB 20 dB 14 dB
Slope adjustment 20 dB 10 dB 14 dB 10 dB 14 dB 10 dB
Maximal IMD3=60 dB (DIN45004B) 121 dBµV
output level IMD3=60 dB 118 dBµV
Input and output return loss > 10 dB
Noise gure < 6 dB < 6 dB < 6 dB (700 MHz) < 6 dB < 6 dB (600 MHz)
Test points input -20 dB, output -30 dB
DC output for external equipment 12 V 100 mA max.
Supply voltage limit values,
198-250 V~ 50/60 Hz 7 W
power consumption*
Operating temperature range -20
o
÷ +50
o
C
Dimensions/Weight (packed) 135x180x52 mm/0.7 kg
* with external DC loading
Caution.
Risk of electric shock.
This product complies with the relevant clauses of the European Directive 2002/96/EC. The unit must be recycled or discarded
according to applicable local and national regulations.
Equipment intended for indoor usage only.
Equipment is double insulated from the mains, with functional earthing.
Functional earthing. Connect to the main potential equalization.
The device has integrated LTE lter.
This product is in accordance to following norms of EU: EMC norm EN50083-2, safety norm EN IEC62368-1 and RoHS norm EN50581.
This product is in accordance with Custom Union Technical Regulations: “Electromagnetic compatibility of technical equipment“
CU TR 020/2011, “On safety of low-voltage equipment“ CU TR 004/2011.
DC
230 V~
RF OUT
Test -30 dB
-10/0 dB
0¸ -10 dB
DC 12 V 100 mA, max.
RF IN
Test -20 dB
LTE
-5/0 dB
0¸ -5 dB
for HS004L and
HS004T only
0¸ -7 dB
-7/0 dB
-7/0 dB
0¸ -7 dB
