TERRATEST 4000 USB User Manual

92

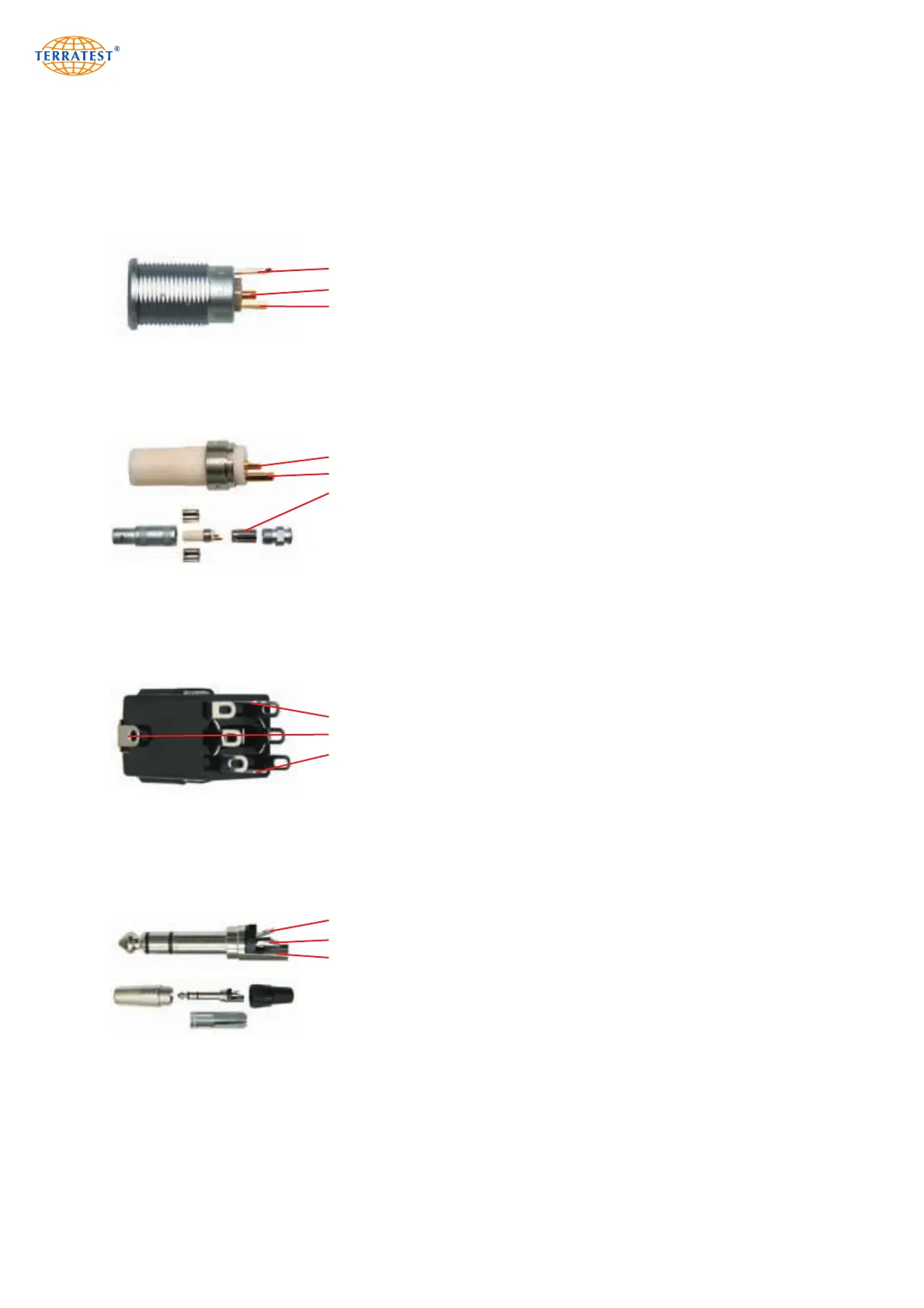

12. Cable Layout
12.1 LEMO Push-Pull Connection (‘TERRATEST 5000 BLU’ ONLY)
12.1.1 Female Socket
Codification Testing Computer Bluetooth
®
Sensor Dome
GND green black
+U white red
OUT brown green
12.1.1 Male Plug
Codification Wire
+U red
OUT white
GND yellow
12.2 Jack Connection (‘TERRATEST 4000 USB’ ONLY)
12.2.1 Female Socket
Codification Testing Computer Sensor Dome
OUT brown green
GND green black
+U white red
12.2.1 Male Plug
Codification Wire
OUT white
+U red
GND yellow
