KATC-C1 Instructions Page 5 04/14
KATC-C1 and the “5” terminal should be connected to E-bar on the KATC-C1. Ensure
that the jumper from E-bar to the red binding post (DM) remains in place. It is important
that all connections are clean and tight and that wire of sufficient gauge (#6) is used.
d) Connect the lead marked “S” to the S terminal on the KATC-C1. Double check that all
connections have been made correctly and that they are all tight.

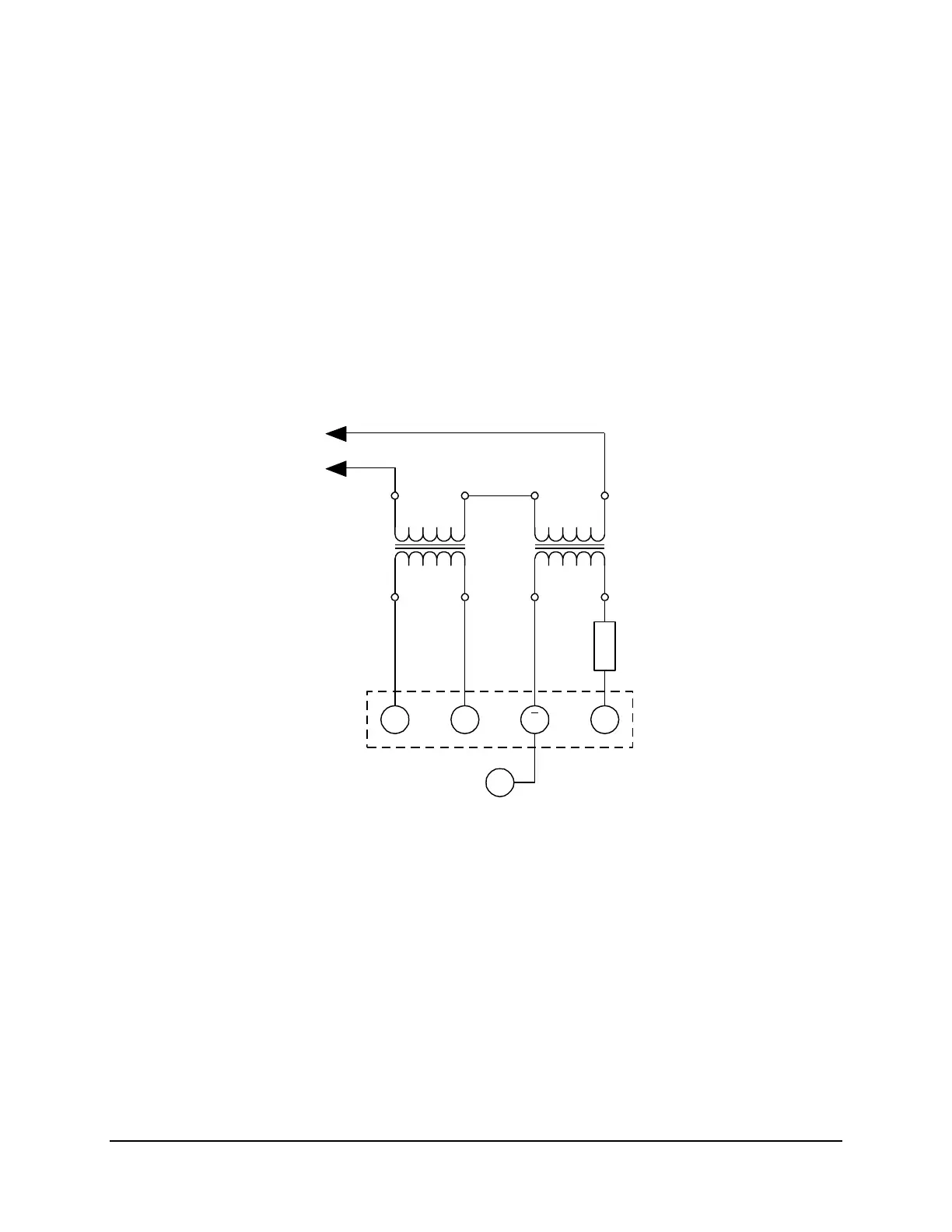

The drawing below shows the transformer connections to be made to the terminal board on the rear
panel of the KATC-C1 if the KATC-C1 is not used as a part of a test system. This connection allows
the KATC-C1 to be used with a standard transformer and burden in a “bench-top” situation. The "AC
Supply" shown on the drawing should be controlled by a variac — so that current can be applied
gradually.
PRIPRI
SEC SEC
S E E U
Burden
KATC-C1
Terminal
Board
Demag
Terminal
(Red)
±
±
±
±
Standard
Transformer
Transformer
Under Test
AC Supply
To Next Page
