7
ENG

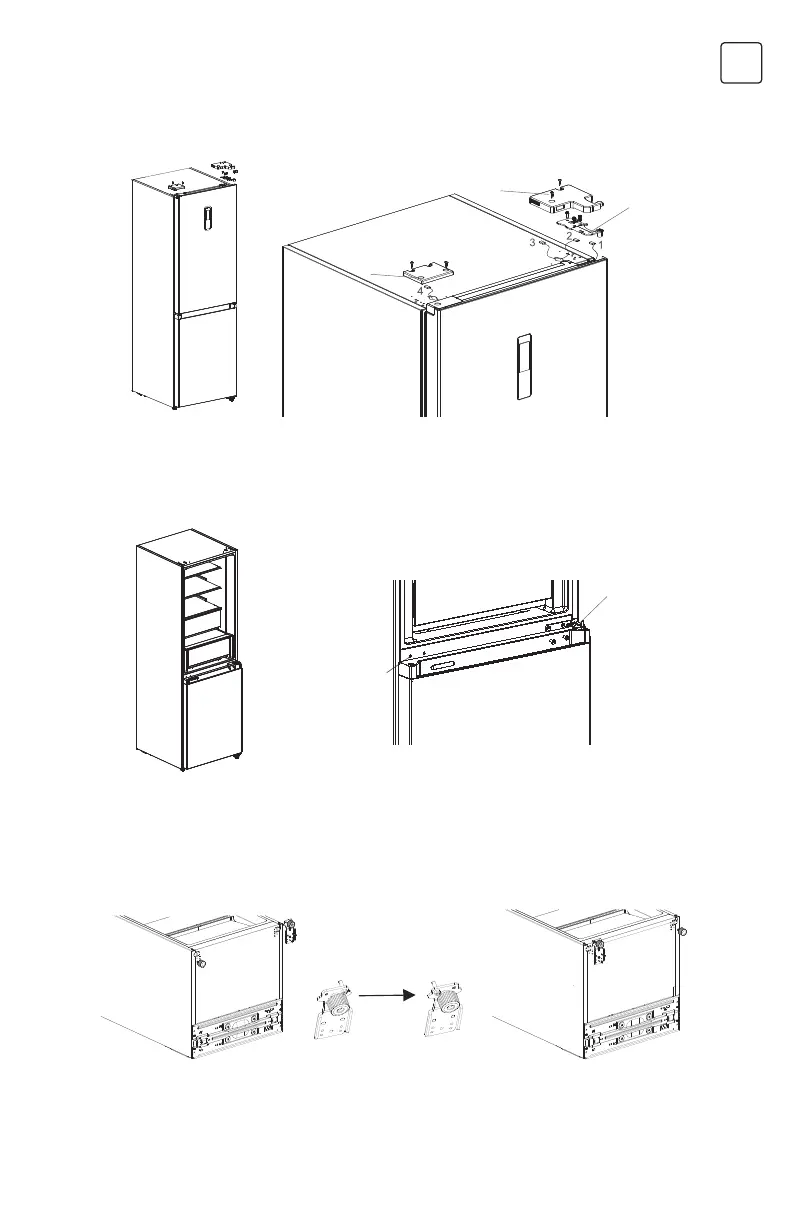

1.Remove all food from the inner door liner.
2. Remove the upper left hinge cover decorative cover, upper right hinge cover and upper right hinge,
and disconnect the right signal line terminal 1 and signal line terminal 2 at the top of the box body.
3. Remove the refrigerated door body (be careful not to lose small parts such as the shaft sleeve and stop
on the door);
Remove the middle hinge and remove the decorative cover of hinge hole on the other side.
4. Remove the freezing door body (be careful not to lose small parts such as the shaft sleeve and stop on
the door);
Remove the hinge and adjust the angle. Remove and install the lower hinge shaft to the other side of
the hinge, and install the modified lower hinge to the other side of the box.
upper hinge cover
upper hinge
decorative cover
decorative
cover
middle hinge
To Next Page
