PULLER-TENSIONER
Model: AFB506
Manual: MI-AFB506-149-00-GB

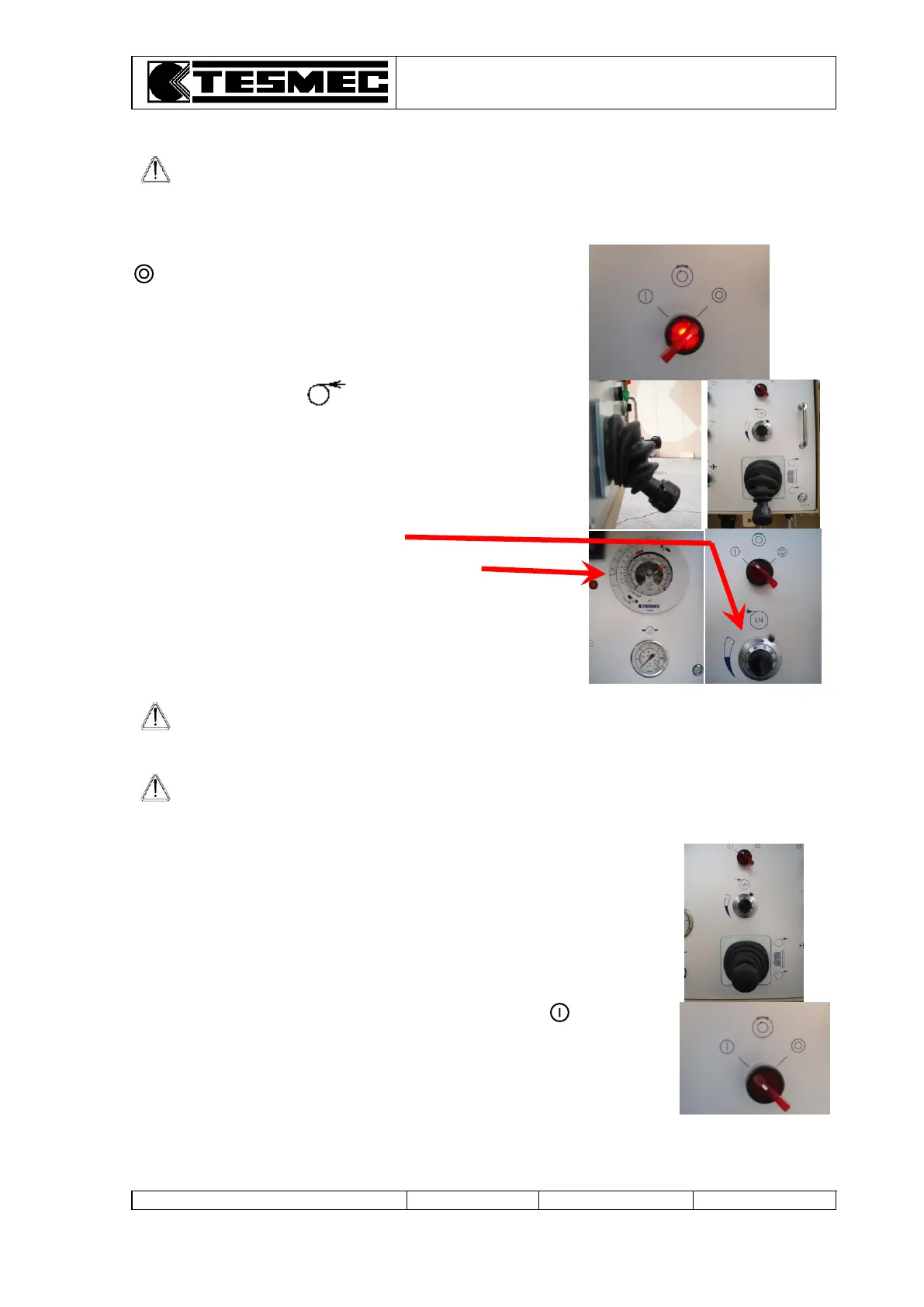

4.7.2 PULL PROGRAMMING DEVICE SETTING
ATTENTION: THE OPERATIONS TO SET THE PULL MUST BE CARRIED OUT WITH
STARTED DIESEL ENGINE BUT WITH STOPPED MACHINE.
Start the diesel engine and set the engine at about 1600
rpm.
Move the selectors (table 1, pos. 32-38) on position
(rightwards – red light on).
Gently move towards (downwards) the levers (table 1,
pos. 34-40).
Turn the knobs (table 1, pos. 33-39)
till on the manometer ring nut (table 1, pos. 30-36) can be
read the pull value that must not be exceeded.
ATTENTION: the red arrow of the pull limiting device (paragraph 4.7.1) has to be
positioned at a higher value than the one pre-set with the PULL PROGRAMMING
DEVICE to avoid the machine stop.
DANGER: when using the machine as a tensioner set the automatic pull limiting device
on the maximum bottom of scale value to avoid dangerous stopping that could be
extremely dangerous and generate serious damages.
Gently move the levers (table 1, pos. 34-40) to central position (neutral
position).
Re-place the selectors (table 1, pos. 32-38) on position (leftwards).
Once reached the pre-set pull, the bull-wheels automatically slow down, stop or reverse the
movement keeping the pull.
