Testboy 20 PLUS User Manual

Operation
22 Testboy
®
20 Plus
Acoustic continuity testing
Insert the test leads (as shown
in Figure 1b).
An acoustic signal can be
heard between 0 – 250 Ω. The
green
LED illuminates at
the same time.
If an unexpected voltage is ap-
plied to the object being meas-
ured, the
light will illuminate
and the buzzer will issue a
warning tone!
If a phase is active on one of
the wires being tested, the red
V~ LED will illuminate!
The Testboy
®
20 Plus is pro-
tected against external volt-
ages of up to 300 V~ (for max.
30 seconds)!
You can carry out a continuity
test while the flashlight is on!

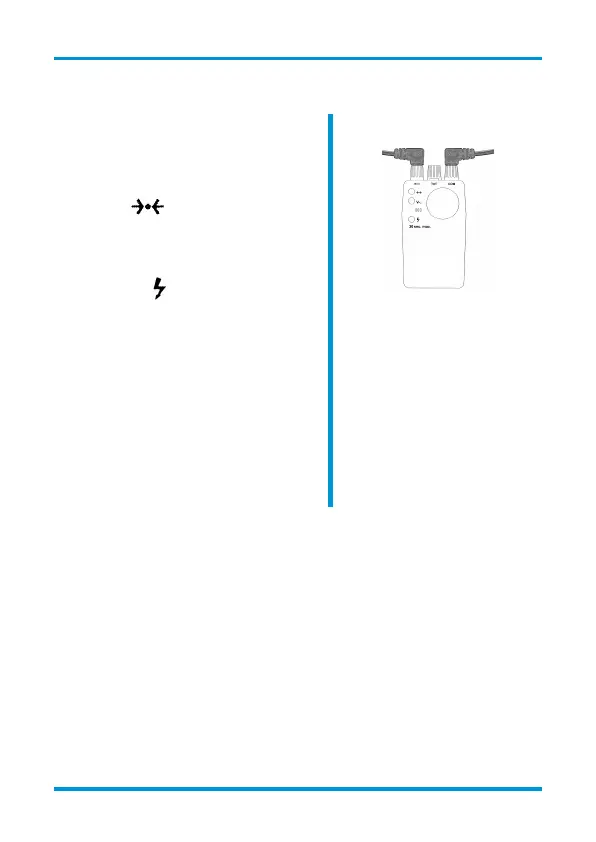

Figure 1b

Testboy 20 PLUS Specifications

General

Brand	Testboy
Model	20 PLUS
Category	Measuring Instruments
Language	English
