1 Mounting Standard hood (610x610 mm)
3

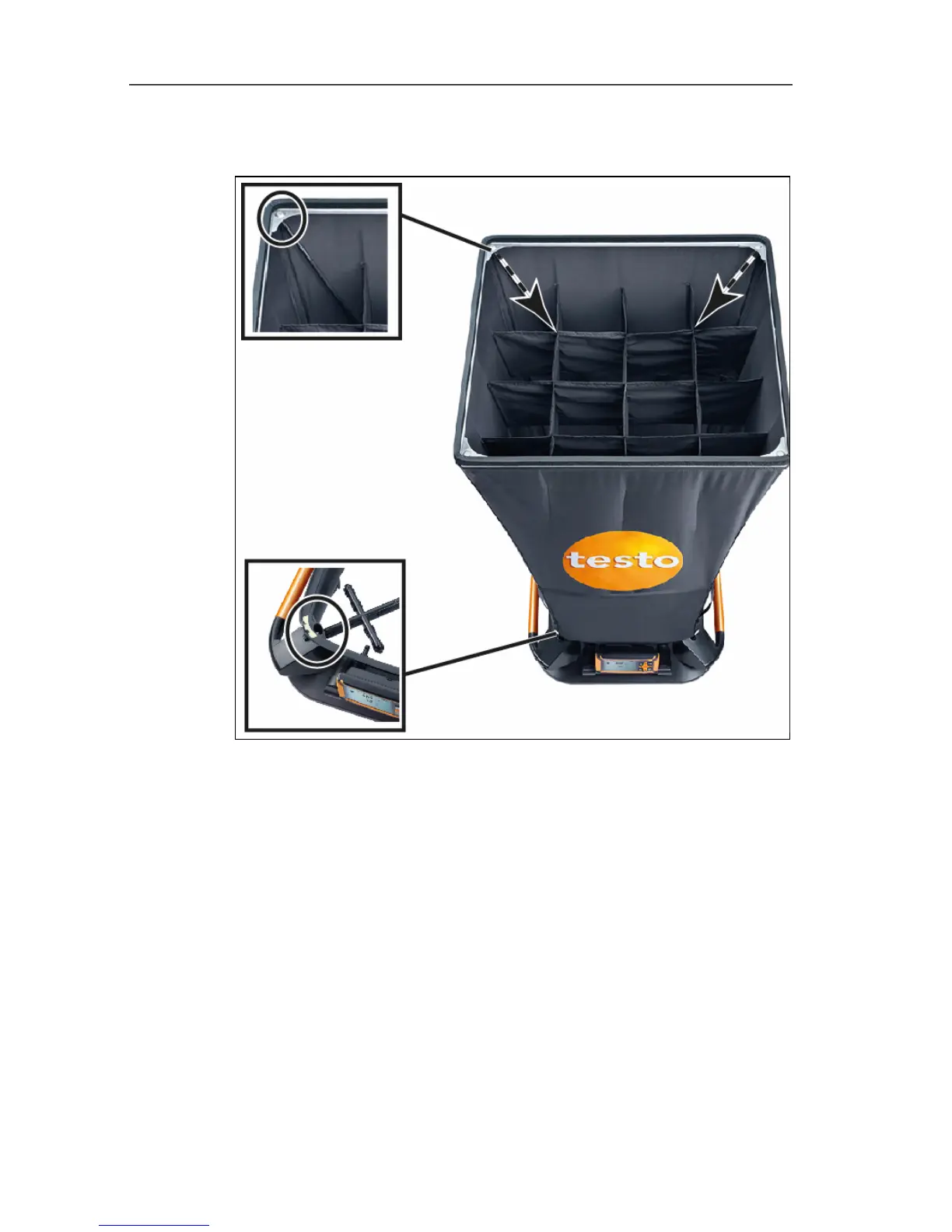

1 Mounting Standard hood (610x610 mm)
1. Lift the hood at the aluminum frame on
2. Push the support rods through the hood, along the markings
and into the funnel in the measurement base.
3. Push the support rods on the top of the hood into the brackets.
4. Screw together a short and long section of the support rods (4x)
at the silver ends.
5. Push the support rods (4x) through the hood, along the
markings and into the funnel in the measurement base.
6. Push the support rods (4x) on the top of the hood into the
bracket
- The hood is installed.
