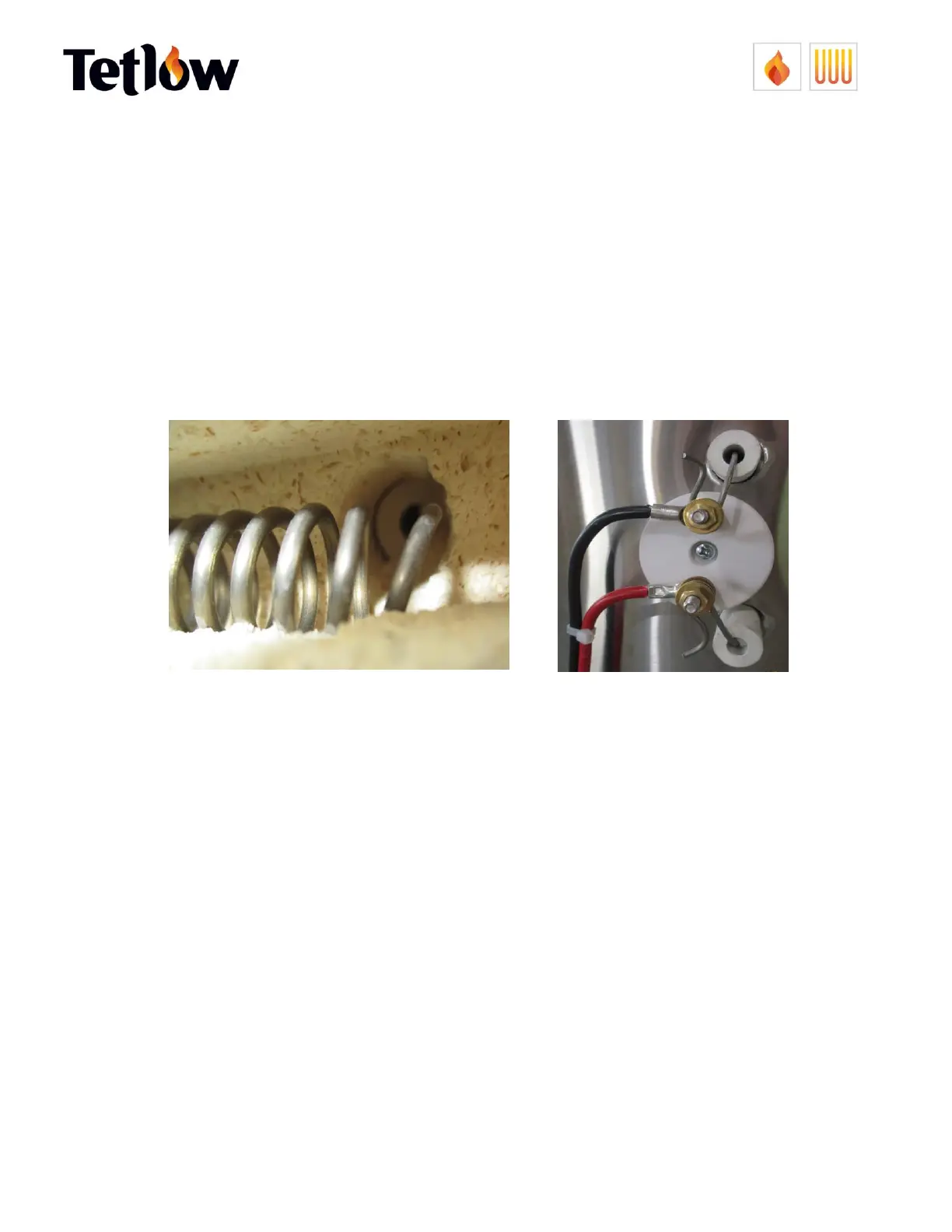

Install new elements in channels feeding tails through holes in the brick wall into termination
areas. Slide the ceramic insulating tubes back on to the element tails, push insulating material
back into tube, terminate each end of the element around brass screw, making sure all washers
are replaced. Cut off any excess length of element tail as pictured, and make sure that the cut-off
end of the element does not come back in contact with itself or another element wire, the casing
or the cover as per diagram.
Tighten terminal nuts and test fire kiln.
