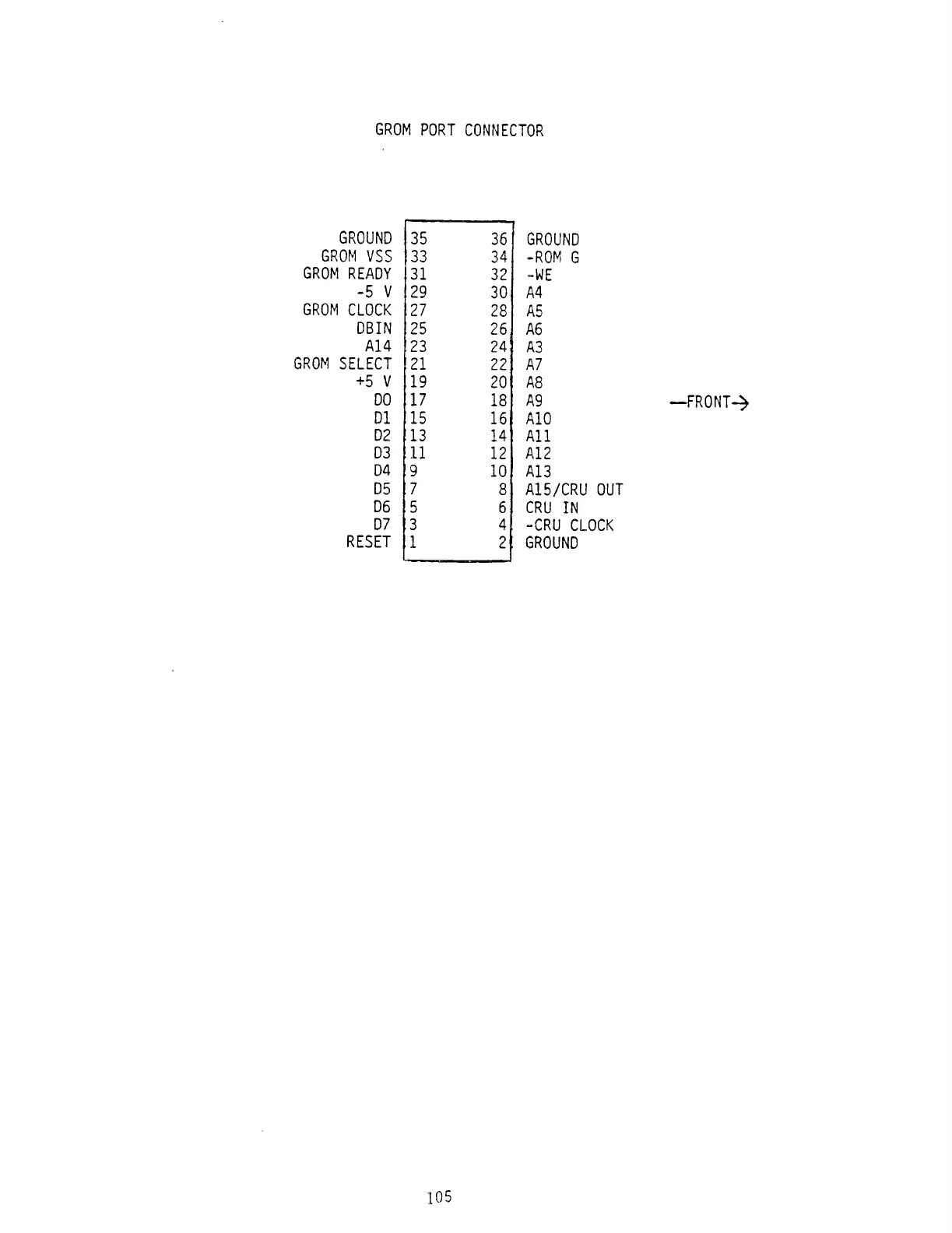

GROM PORT CONNECTOR
GROUND
GROM VSS
GROM READY
-5 V
GROM CLOCK
DBIN
A14
GROM SELECT
+5 V
DO
DI
D2
D3
D4
D5
D6
D7
RESET
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
GROUND
-ROM G
-WE
A4
A5
A6
A3
A7
A8
A9
A10
All
A12
A13
A15/CRU OUT
CRU IN
-CRU CLOCK
GROUND
— FRONT-}
