LS2M
'OCTAL (8) BUS DRIVER'
'NON-INVERT I NG'
'1-WAY COMMUNICATION'
'3 STATE OUTPUT': 1) HIGH
2) LOW
3) HIGH IMPEDANCE
G IS ENABLE ACTIVE - LOW
INPUT/OUTPUT/ENABLE
INPUT
2A0
OUTPUT
2YM
Illi HI-Z III III III III II11
//////////////////////////

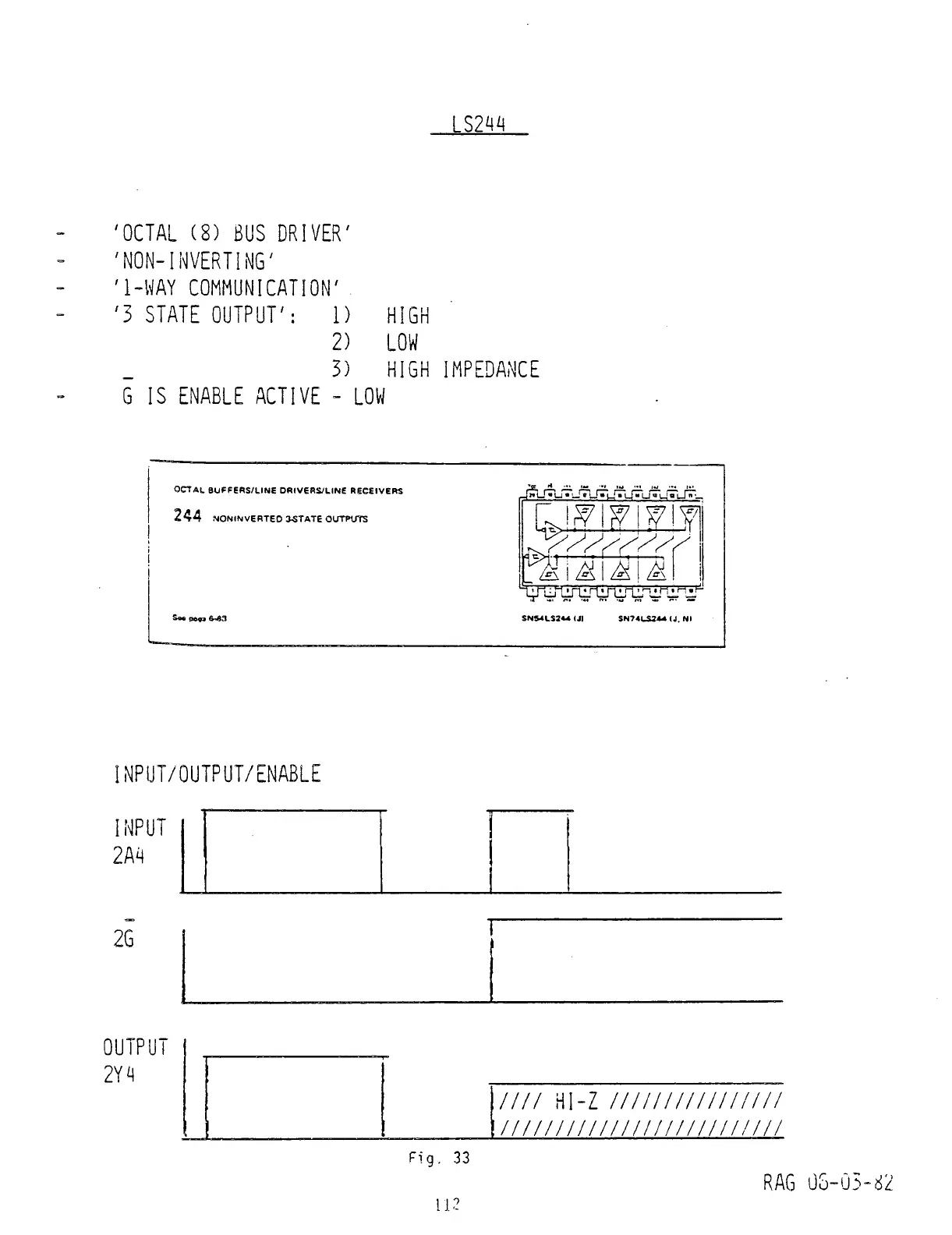

Fig. 33
RAG 03-05-82
