Method 0: Make device enter BSL

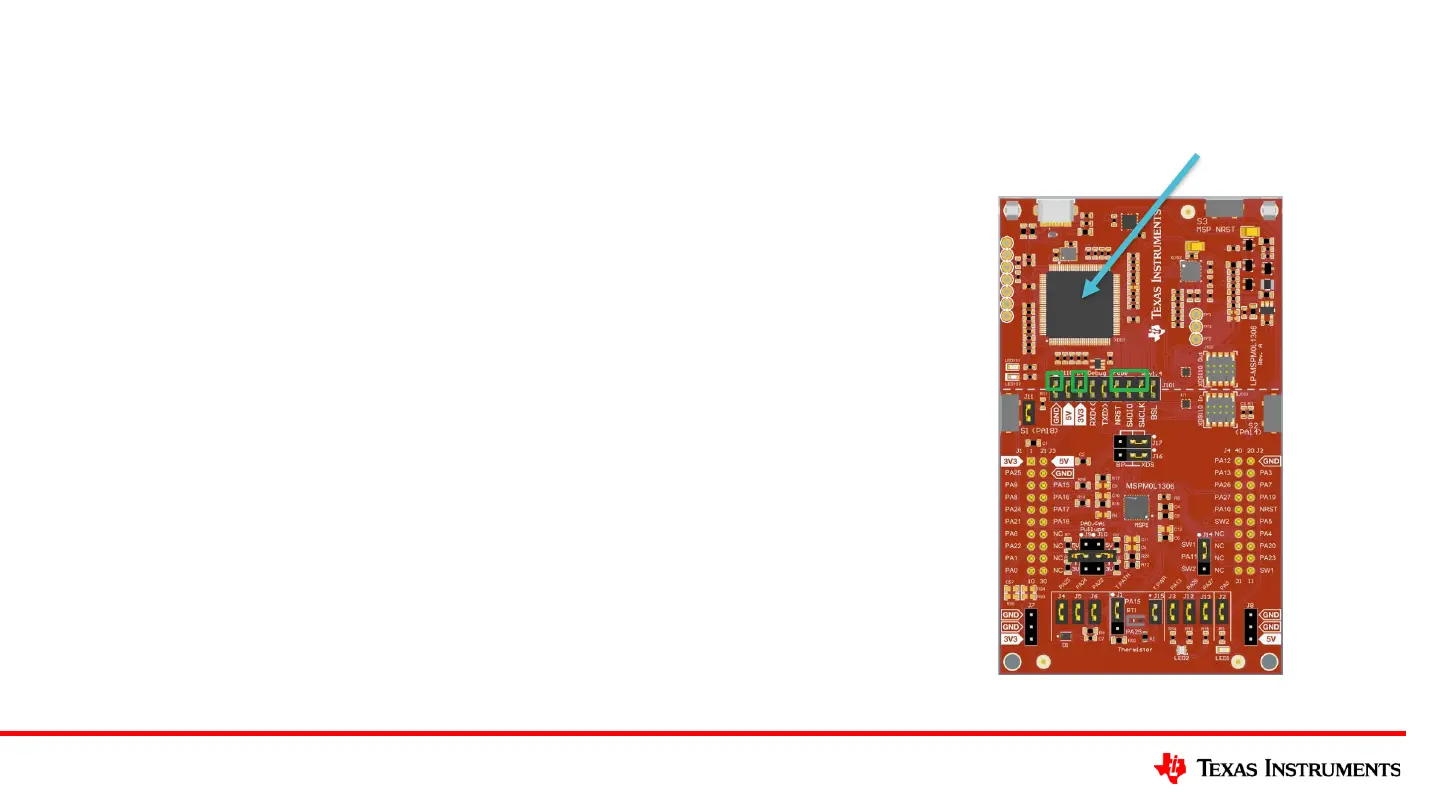

• Hardware connection (based on XDS110)
• Step 0: Use a DuPont cable to connect the GND,
DIO, and CLK on one side of the burner to the target
board.
• Step 1: Power down the MCU (unplug the power
cord of the burner).
• Step 2: Pull PA18 up. Press the PA18 button on
Launchpad to ensure that the jumper cap is secure.
• Step 3: Power on the MCU (plug in the power cord
of the burner).
• Step 5: Burn within 10 seconds without releasing
PA18. No, look at method1.
2
XDS110
