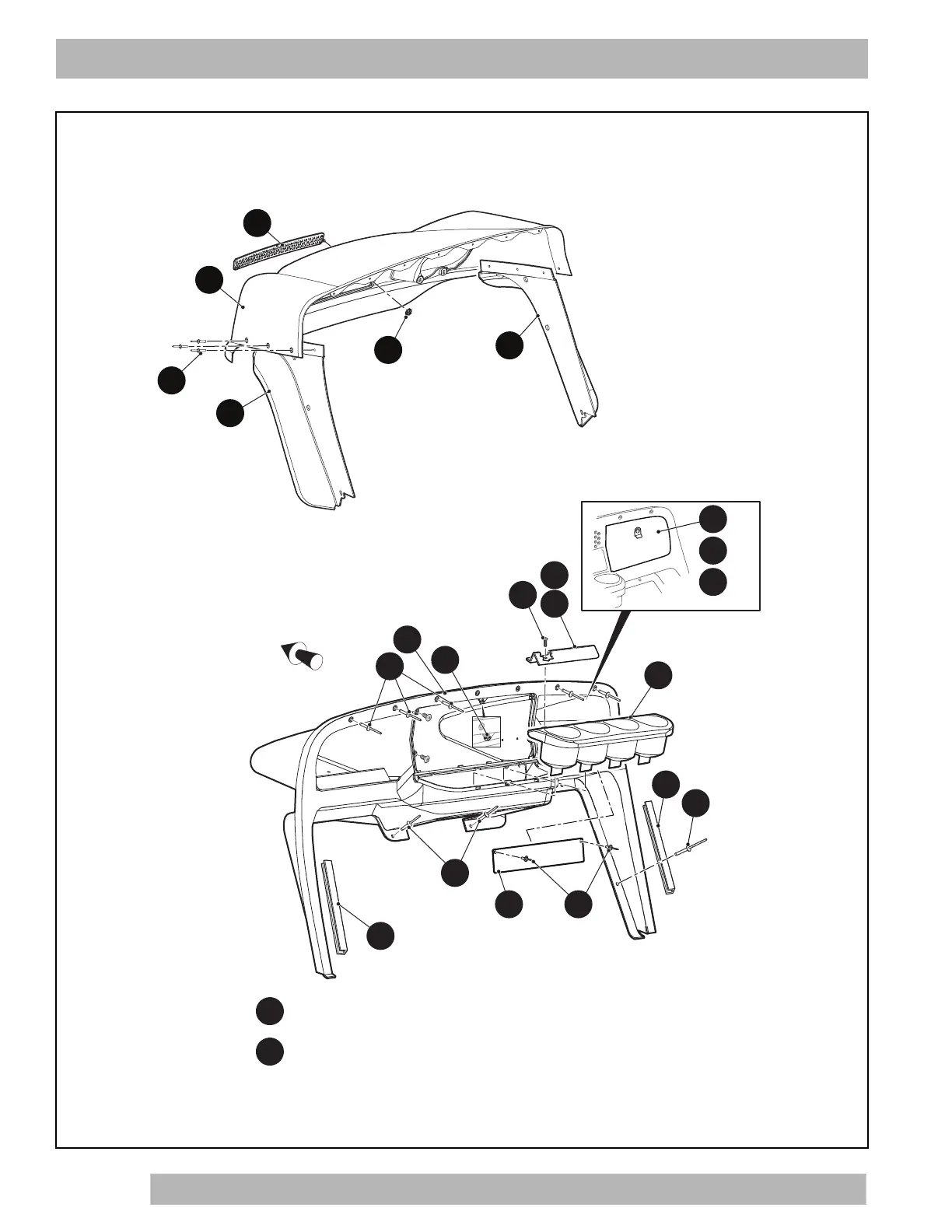

Page C-3
699361 Service Parts Manual
BODY
7
Instrument Panel Assembly includes items 8 - 16
8
Instrument Panel Assembly with Ball Deflector
includes items 9 - 13
17
18
19
22
15
12
13
21
23
22
10
11
9
14
16
4
3
6
5
4
2
1
23
Front of Vehicle
19
21
