SECTION 5 LYCOMING OPERATOR’S MANUAL
MAINTENANCE PROCEDURES O-360 AND ASSOCIATED MODELS
(b) Remove shims, and using the same sequence, tighten the ½ inch cylinder base nuts to 600 in.-
lbs. (50 ft.-lbs.) torque.
NOTE
Cylinder assemblies not using hold-down plate are tightened in the same manner as above
omitting the shims.

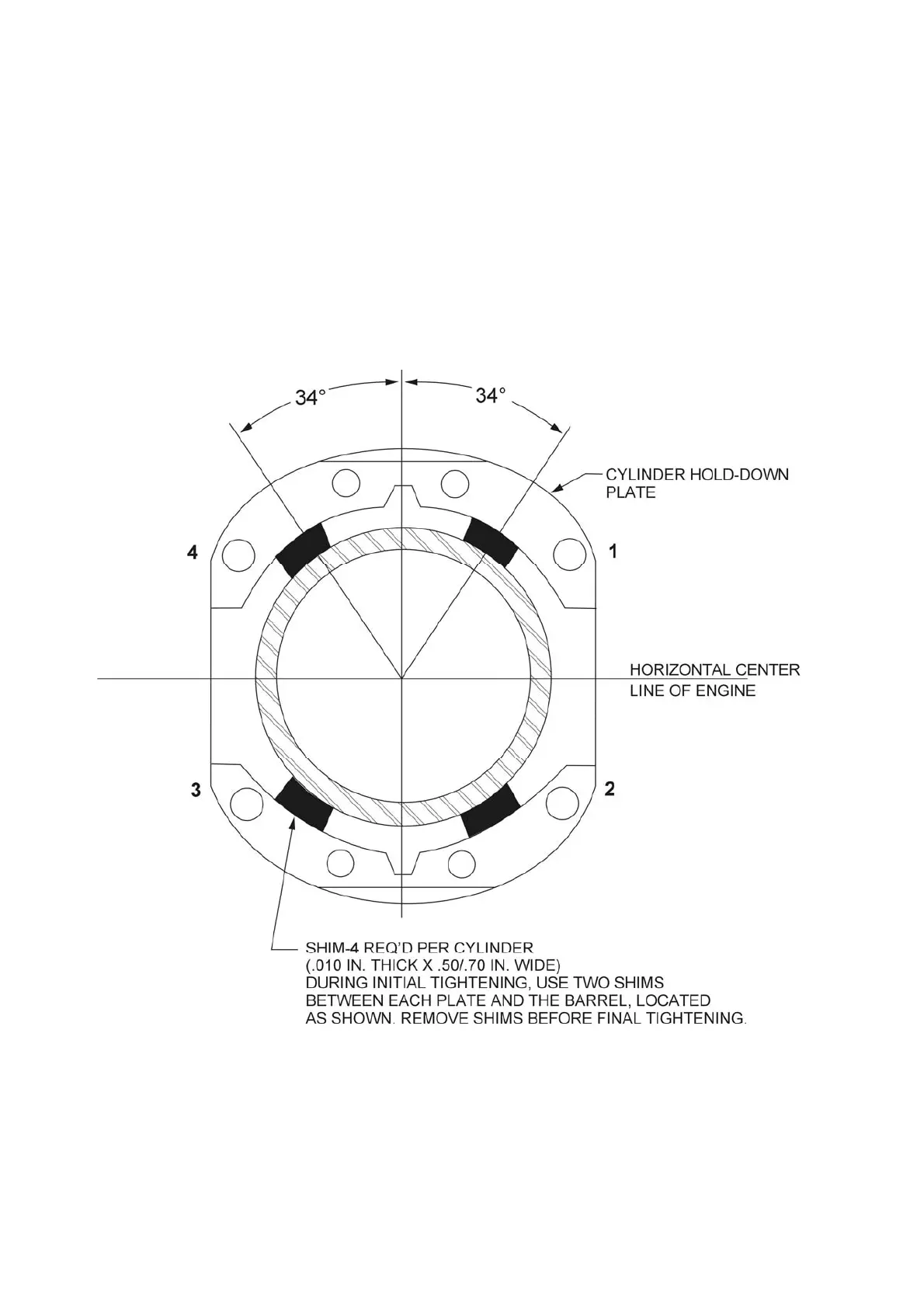

Figure 5-3. Location of Shims Between Cylinder Barrel and
Hold-Down Plates (where applicable) and Sequence of Tightening
Cylinder Base Hold-Down Nuts
