7
OPERATION section 4.2
Controls Continued
10. Rear Transaxle Range Se lec tor Le ver - See
sec tion 4.5 for HI - LO Range Se lec tion
11. Parking Brake Le ver - Set park ing brake be -
fore dis mount ing.
12. Key Switch - Starting and ig ni tion.
13. Light Switch - Lights.
14. PTO Le ver - Con trols Power Take Off front belt
drive for at tach ments.
15. Transaxle Range Selector Lever(s)
Serial No. (1001 - 3172)Front and Rear Transaxle
Range Selector Levers Not illustrated - Shifts
transaxles into “HIGH” (2) or “LOW” (1) range.
Note: Always shift front and rear transaxles to the
same range on units with 2 selector levers.
Serial No. (3173 - 4630) Transaxle Range Selector
Lever Not illustrated - Uses one lever mounted on
the front transaxle to shift both front and rear
transaxles into “HIGH” (2) or “LOW” (1) range by
means of a cable to the rear transaxle. See
(Section 4, HI - LO Range Selection)
Serial No. (4631 - )
Front and rear selector levers have a locking
device. Shifts transaxle into “HIGH” (2) or “LOW”
(1) range. (See Section 4, HI - LO Selection)
Note: Always shift front and rear transaxles to the
same range on units with 2 selector levers.
16. Front Hitch Release Lever - Releases quick
hitch latch for attachments.

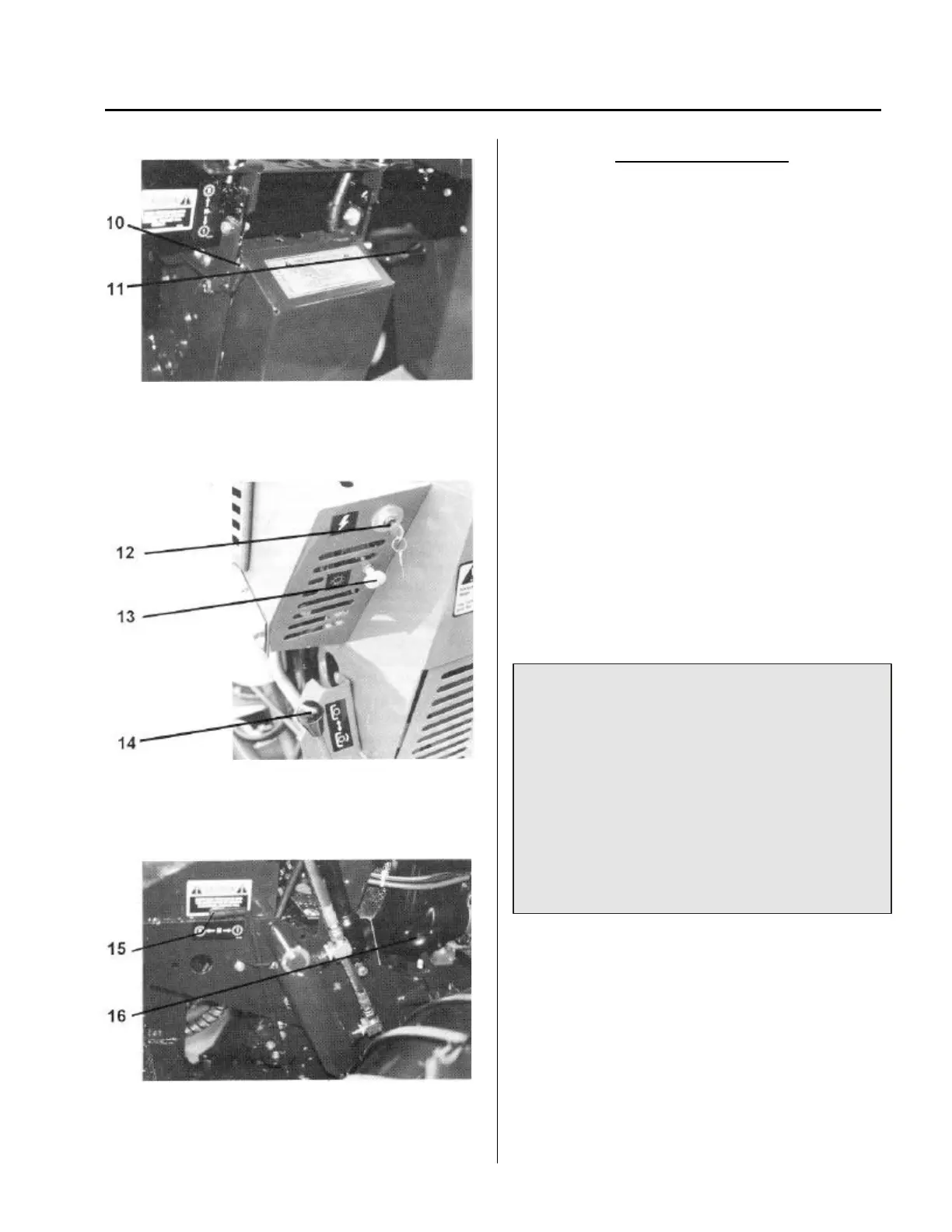

Photo 3 - Rear Transaxle Range Selector Lever
and Parking Brake (Serial No. 4631 - )
Photo 4 - Key Switch...Light Switch...PTO Lever
Photo 5 - Front Transaxle Range Selector (Serial
No. 4631 - ) and FrontHitch Release Lever.
