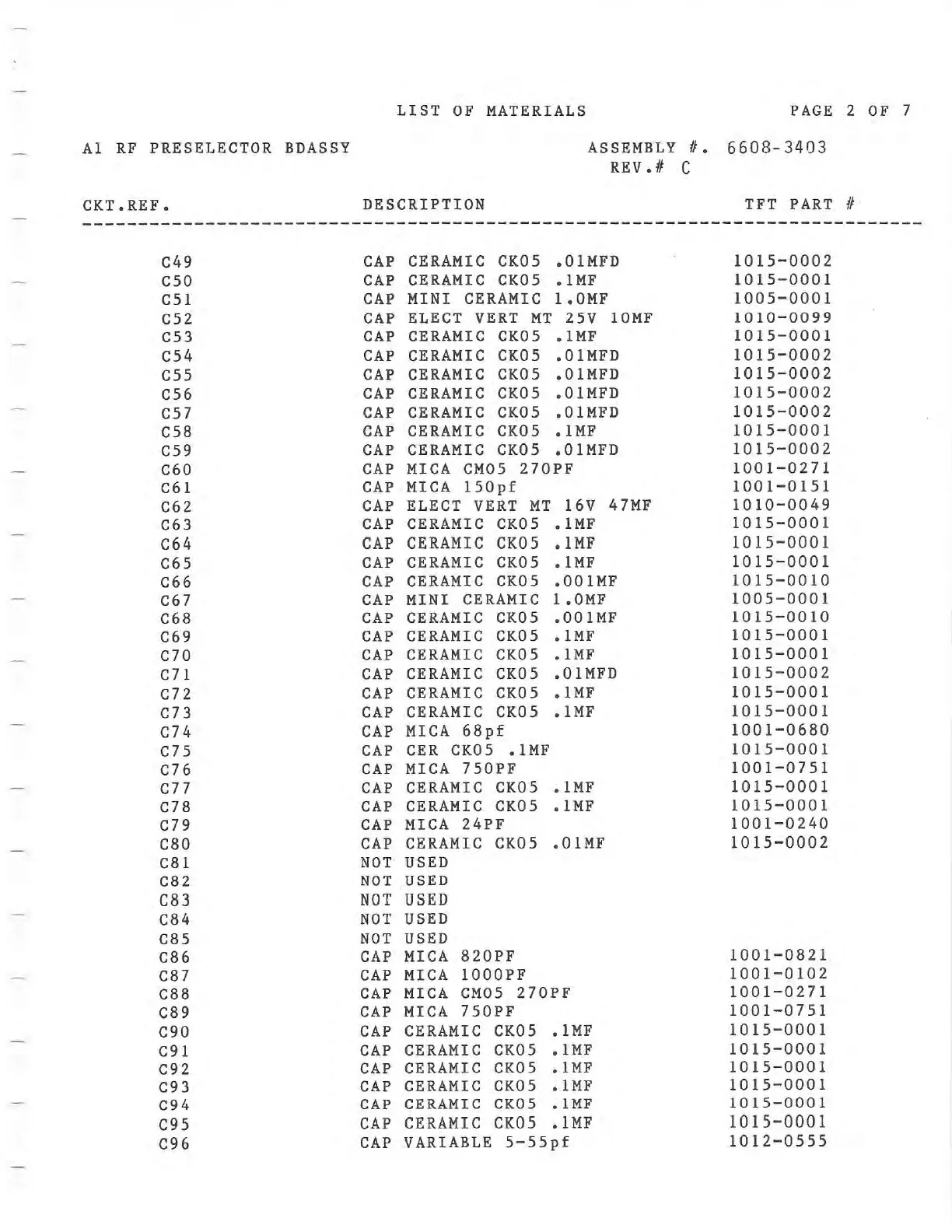

LIST OF
MATERIALS
PAGE
2 OF
7
Al
RF PRESELECTOR BDASSY ASSEMBLY ti.
6608-3403
REV. It
C
CKT.REF.
DESCRIPTION TFT PART It
---------------------------------------------------------------------------
C49
CAP CERAMIC CK05 .OlMFD
1015-0002
cso
CAP CERAMIC CK05 • lMF
1015-0001
C51
CAP MINI CERAMIC 1.0MF
1005-0001
C52
CAP
ELECT VERT MT
25V
lOMF
1010-0099
C53
CAP
CERAMIC CKOS .lMF
1015-0001
C54 CAP
CERAMIC CK05 .OlMFD
1015-0002
C55
CAP
CERAMIC CK05 .OlMFD
1015-0002
C56
CAP CERAMIC CK05
.OlMFD
1015-0002
C57
CAP CERAMIC CK05 • 01 MFD
1015-0002
C58
CAP CERAMIC CK05 • !MF 1015-0001
C59
CAP CERAMIC CK05 .OlMFD
1015-0002
C60
CAP
MICA CMOS 270PF
1001-0271
C61
CAP MICA 150pf
1001-0151
C62
CAP ELECT VERT MT 16V
47MF
1010-0049
C63
CAP
CERAMIC CK05 • IMF 1015-0001
C64
CAP
CERAMIC CKOS
• lMF
1015-0001
C65
CAP
CERAMIC CK05
•
IMF
1015-0001
C66
CAP
CERAMIC CKOS .OOlMF
1015-0010
C67
CAP
MINI
CERAMIC l.OMF 1005-0001
C68
CAP CERAMIC CKOS
.OOlMF
1015-0010
C69
CAP
CERAMIC CK05
.IMF 1015-0001
C70
CAP
CERAMIC CK05 .IMF
1015-0001
C71
CAP CERAMIC CK05
.OlMFD
1015-0002
C72
CAP
CERAMIC
CK05
• IMF 1015-0001
C73
CAP
CERAMIC CK05
• IMF
1015-0001
C74
CAP
MICA 68pf
1001-0680
C75
CAP
GER CK05
• IMF
1015-0001
C76
CAP MICA 750PF
1001-0751
C77
CAP
CERAMIC CK05 .IMF 1015-0001
C78
CAP
CERAMIC CKOS • IMF 1015-0001
C79
CAP MICA 24PF
1001-0240
C80
CAP
CERAMIC CK05 .OlMF
1015-0002
C81
NOT
USED
C82
NOT
USED
C83
NOT USED
C84
NOT USED
C85
NOT USED
C86
CAP MICA 820PF
1001-0821
C87
CAP MICA lOOOPF
1001-0102
C88
CAP
MICA CMOS 270PF
1001-0271
C89
CAP MICA 750PF
1001-0751
C90
CAP CERAMIC CKOS .IMF
1015-0001
C91
CAP
CERAMIC CK05 • lMF
1015-0001
C92
CAP
CERAMIC CK05
.1 MF 1015-0001
C93
CAP CERAMIC CK05
• IMF
1015-0001
C94
CAP
CERAMIC CK05 • lMF
1015-0001
C95
CAP
CERAMIC CK05 .lMF
1015-0001
C96
CAP
VARIABLE 5-55pf
1012-0555
