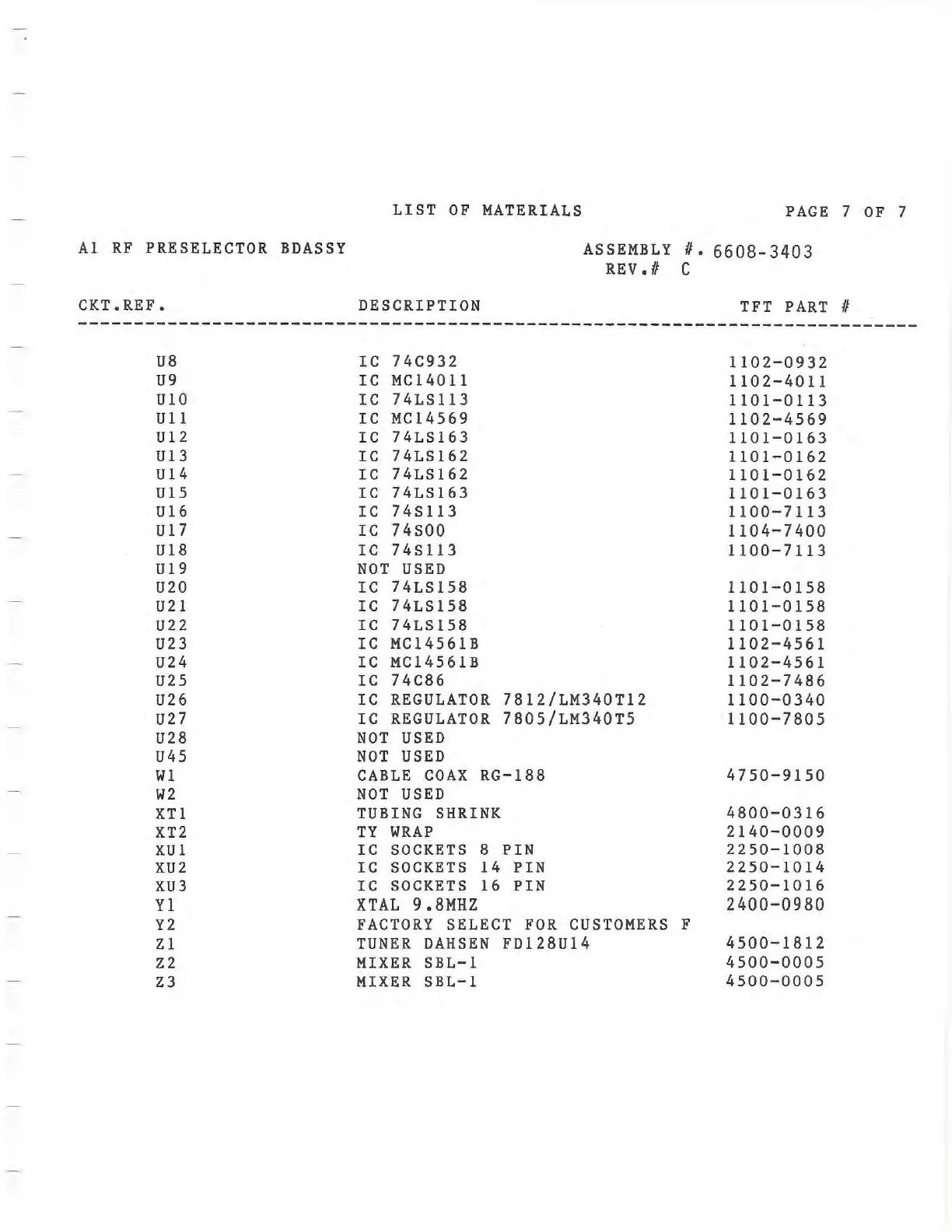

LIST OF MATERIALS PAGE 7 OF 7
Al RF PRESELECTOR BDASSY ASSEMBLY# . 6608-3403
REV.II C
CKT.REF. DESCRIPTION
TFT PART
II
---------------------------------------------------------- ------ - --- - -- ----
U8
U9
UlO
Ull
Ul2
Ul3
Ul4
Ul5
Ul6
017
018
019
U20
021
U22
023
U24
U25
U26
027
028
045
Wl
W2
XTl
XT2
XUl
XU2
XU3
Yl
Y2
Zl
Z2
Z3
IC 74C932
IC MC14011
IC 74LS113
IC MC14569
IC 74LS163
IC 74LS162
IC 74LS162
IC 74LS163
IC 74Sll3
IC 74S00
IC 74Sll3
NOT USED
IC 74LS158
IC 74LS158
IC 74LS158
IC MC14561B
IC MC14561B
IC 74C86
IC REGULATOR 7812/LM340Tl2
IC REGULATOR 7805/LM340T5
NOT USED
NOT USED
CABLE COAX RG-188
NOT USED
TUBING SHRINK
TY WRAP
IC SOCKETS 8 PIN
IC SOCKETS 14 PIN
IC SOCKETS 16 PIN
XTAL 9.8MHZ
FACTORY SELECT FOR CUSTOMERS F
TUNER DAHSEN FD128Ul4
MIXER SBL-1
MIXER SBL-1
1102-0932
1102-4011
1101-0113
1102-4569
1101-0163
1101-0162
1101-0162
1101-0163
1100-7113
1104-7400
1100-7113
1101-0158
1101-0158
1101-0158
1102-4561
1102-4561
1102-7486
1100-0340
1100-7805
4750-9150
4800-0316
2140-0009
2250-1008
2250-1014
2250-1016
2400-0980
4500-1812
4500-0005
4500 - 0005
