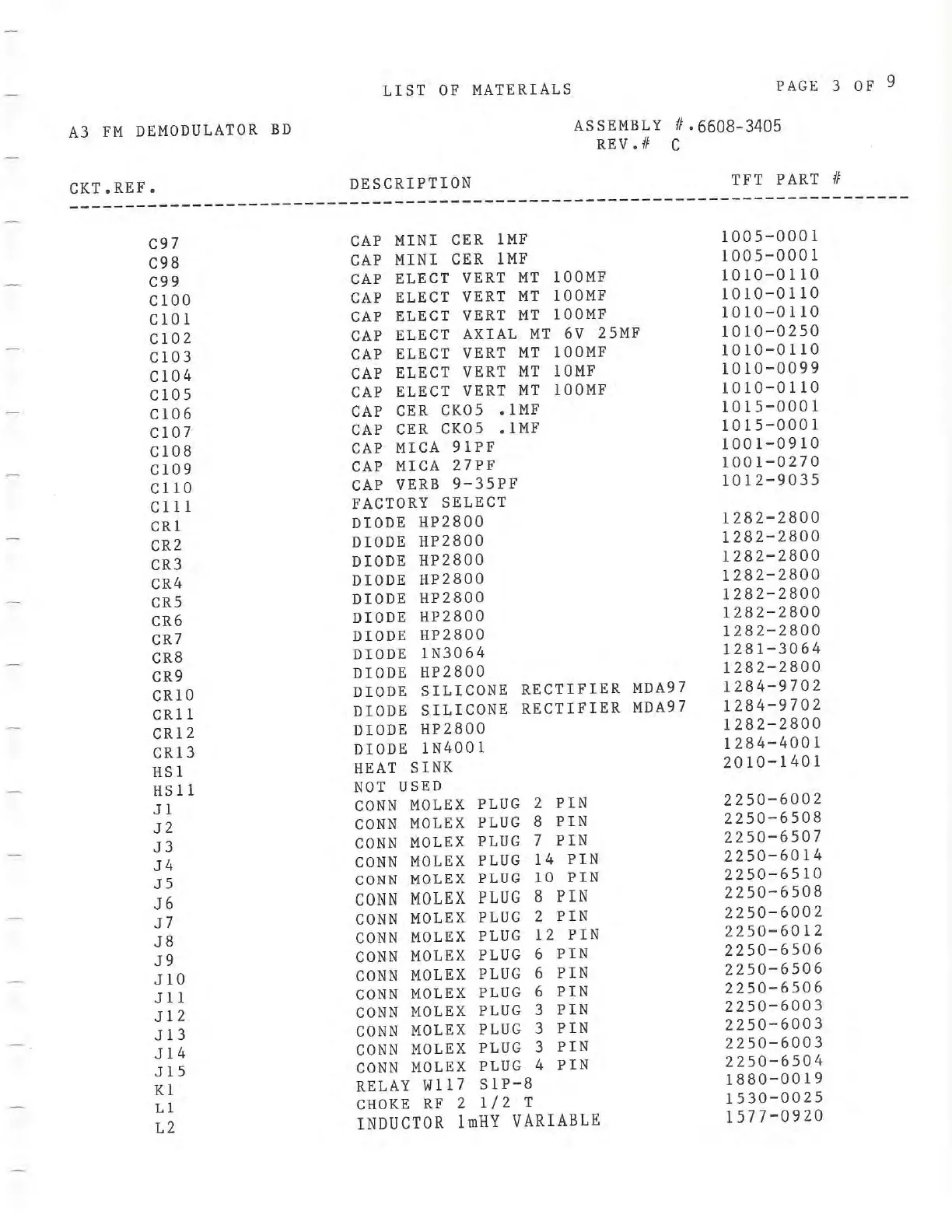

LIST OF MATERIALS PAGE 3 OF 9
A3 FM DEMODULATOR BD ASSEMBLY #.6608-3405
REV • II C
CKT.REF.
DESCRIPTION
TFT PART II
---------------------------------------------------------------------------
C97
C98
C99
ClOO
ClOl
Cl02
Cl03
Cl04
Cl05
Cl06
Cl07
Cl08
Cl09
CllO
C 111
CRl
CR2
CR3
CR4
CR5
CR6
CR7
CR8
CR9
CRlO
CRll
CR12
CR13
HSl
HSll
Jl
J2
J3
J4
JS
J6
J7
J8
J9
Jl0
Jll
Jl2
Jl3
Jl4
Jl5
Kl
Ll
12
CAP MINI CER lMF
CAP MINI CER lMF
CAP ELECT VERT MT lOOMF
CAP ELECT VERT MT lOOMF
CAP ELECT VERT MT 100MF
CAP ELECT AXIAL MT 6V 25MF
CAP ELECT VERT MT lOOMF
CAP ELECT VERT MT lOMF
CAP ELECT VERT MT lOOMF
CAP CER CK05 .lMF
CAP GER CK05 .lMF
CAP MICA 91PF
CAP MICA 27PF
CAP VERB 9-35PF
FACTORY SELECT
DIODE
HP2800
DIODE HP2800
DIODE HP2800
DIODE HP2800
DIODE HP2800
DIODE HP2800
DIODE HP2800
DIODE 1N3064
DIODE HP2800
DIODE SILICONE RECTIFIER MDA97
DIODE SILICONE RECTIFIER MDA97
DIODE HP2800
DIODE 1N4001
HEAT SINK
NOT USED
CONN MOLEX PLUG 2 PIN
CONN MOLEX PLUG 8 PIN
CONN MOLEX PLUG 7 PIN
CONN MOLEX PLUG 14 PIN
CONN MOLEX PLUG 10 PIN
CONN MOLEX PLUG 8 PIN
CONN MOLEX PLUG 2 PIN
CONN MOLEX PLUG 12 PIN
CONN MOLEX PLUG 6 PIN
CONN MOLEX PLUG 6 PIN
CONN MOLEX PLUG 6 PIN
CONN MOLEX PLUG 3 PIN
CONN MOLEX PLUG 3 PIN
CONN MOLEX PLUG 3 PIN
CONN MOLEX PLUG 4 PIN
RELAY Wll7 SlP-8
CHOKE RF 2 1/2 T
INDUCTOR lmHY VARIABLE
1005-0001
1005-0001
1010-0110
1010-0110
1010 - 0110
1010-0250
1010-0110
1010-0099
1010-0110
1015-0001
1015-0001
1001-0910
1001-0270
1012-9035
1282-2800
1282-2800
1282-2800
1282-2800
1282-2800
1282-2800
1282-2800
1281-3064
1282-2800
1284-9702
1284-9702
1282-2800
1284-4001
2010-1401
2250-6002
2250-6508
2250-6507
2250-6014
2250-6510
2250-6508
2250-6002
2250-6012
2250-6506
2250-6506
2250-6506
2250-6003
2250-6003
2250-6003
2250-6504
1880-0019
1530-0025
1577-0920
