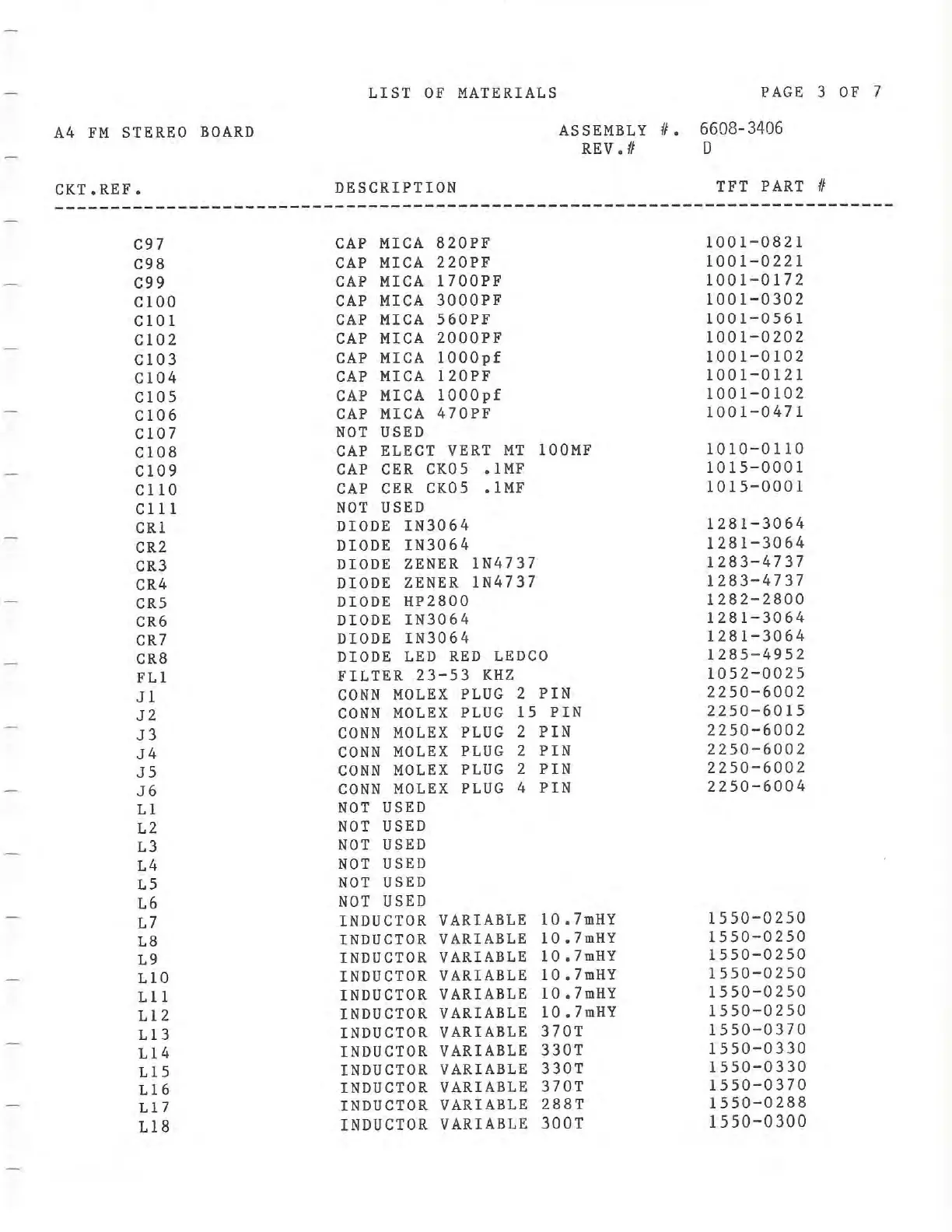

A4 FM STEREO BOARD
CKT.REF.
LIST OF MATERIALS
PAGE 3
OF 7
ASSEMBLY
fl. 6608-3406
REV.II D
DESCRIPTION TFT PART II
---------------------------------------------------------------------------
C97
C98
C99
ClOO
ClOl
Cl02
Cl03
Cl04
Cl05
Cl06
Cl07
Cl08
Cl09
CllO
Clll
CRl
CR2
CR3
CR4
CRS
CR6
CR7
CR8
FLl
Jl
J2
J3
J4
JS
J6
Ll
L2
L3
L4
LS
L6
L7
L8
L9
LlO
Lll
112
113
114
115
Ll6
Ll7
Ll8
CAP MICA 820PF
CAP MICA 220PF
CAP MICA 1700PF
CAP MICA 3000PF
CAP MICA 560PF
CAP MICA 2000PF
CAP MICA lOOOpf
CAP MICA 120PF
CAP MICA lOOOpf
CAP MICA 470PF
NOT USED
CAP ELECT VERT MT lOOMF
CAP CER CK05 .lMF
CAP CER CK05 .lMF
NOT USED
DIODE
IN3064
DIODE IN3064
DIODE ZENER 1N4737
DIODE ZENER 1N4737
DIODE HP2800
DIODE IN3064
DIODE IN3064
DIODE LED RED LEDCO
FILTER 23-53 KHZ
CONN MOLEX PLUG 2 PIN
CONN MOLEX PLUG 15 PIN
CONN MOLEX PLUG 2 PIN
CONN MOLEX PLUG 2 PIN
CONN MOLEX PLUG 2 PIN
CONN MOLEX PLUG 4 PIN
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
INDUCTOR VARIABLE
10.7mHY
INDUCTOR VARIABLE 10.7mHY
INDUCTOR VARIABLE l0.7mHY
INDUCTOR VARIABLE 10.7mHY
INDUCTOR VARIABLE 10.7mHY
INDUCTOR VARIABLE 10.7mHY
INDUCTOR VARIABLE 370T
INDUCTOR VARIABLE 330T
INDUCTOR VARIABLE 330T
INDUCTOR VARIABLE 370T
INDUCTOR VARIABLE 288T
INDUCTOR VARIABLE 300T
1001-0821
1001-0221
1001-0172
1001-0302
1001-0561
1001-0202
1001-0102
1001-0121
1001-0102
1001-0471
1010-0110
1015-0001
1015-0001
1281-3064
1281-3064
1283-4737
1283-4737
1282-2800
1281-3064
1281-3064
1285-4952
1052-0025
2250-6002
2250-6015
2250-6002
2250-6002
2250-6002
2250-6004
1550-0250
1550-0250
1550-0250
1550-0250
1550-0250
1550-0250
1550-0370
1550-0330
1550-0330
1550 - 0370
1550-0288
1550-0300
