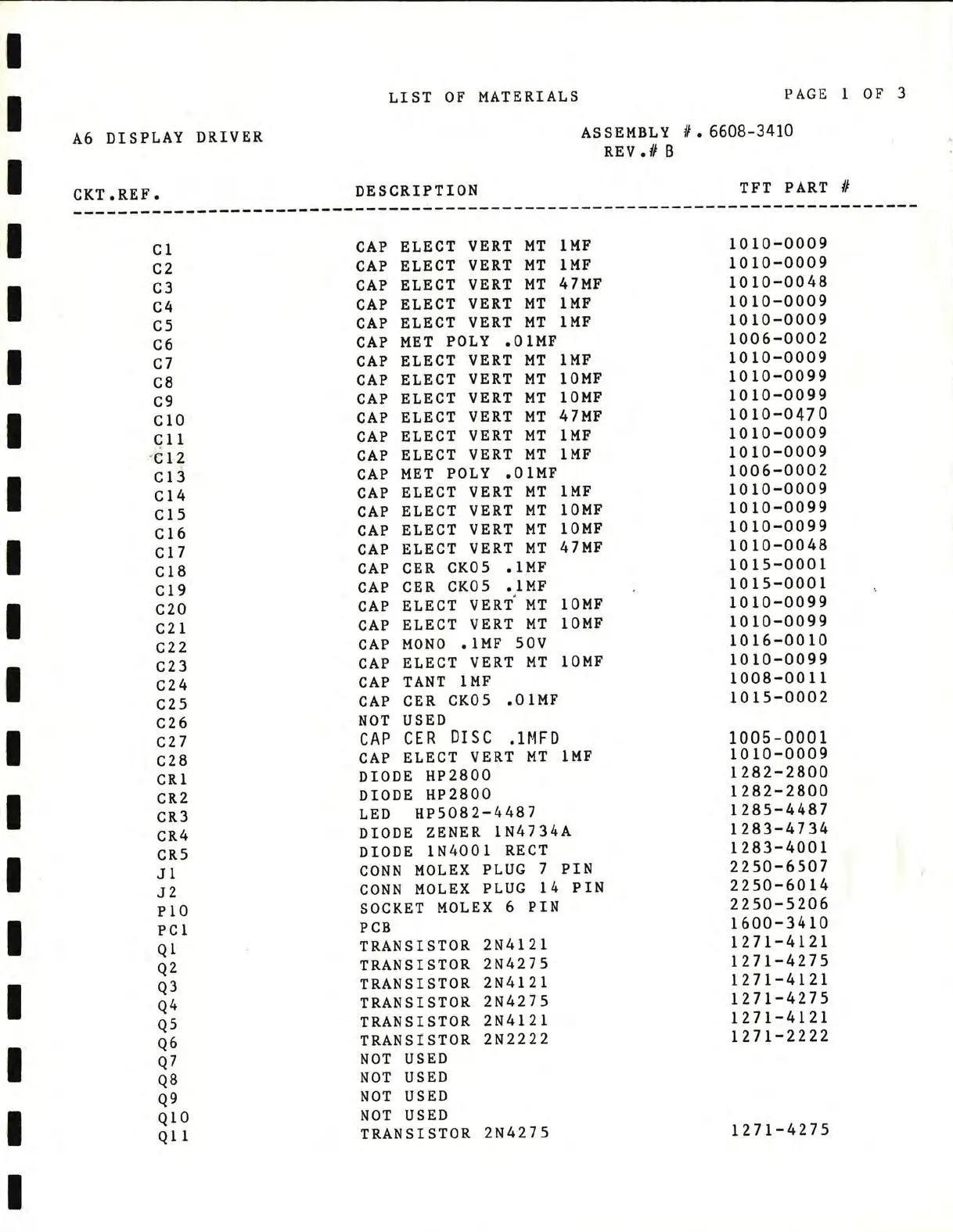

LIST OF MATERIALS PAGE l OF 3
A6 DISPLAY DRIVER
ASSEMBLY II. 6608-3410
REV .II B
CKT.REF.
DESCRIPTION TFT PART II
---------------------------------------------------------------------------
Cl
C2
C3
C4
cs
C6
C7
ca
C9
ClO
Cll
-c 12
Cl3
Cl4
ClS
Cl6
Cl7
Cl8
Cl9
C20
C21
C22
C23
C24
C25
C26
C27
C28
CRl
CR2
CR3
CR4
CRS
Jl
J2
PlO
PCl
Ql
Q2
Q3
Q4
QS
Q6
Q7
QB
Q9
QlO
Qll
CAP ELECT VERT MT lMF
CAP ELECT VERT MT lMF
CAP ELECT VERT MT 47MF
CAP ELECT VERT MT lMF
CAP ELECT VERT MT lMF
CAP MET POLY .OlMF
CAP ELECT VERT MT lMF
CAP ELECT VERT MT lOMF
CAP ELECT VERT MT lOMF
CAP ELECT VERT MT 47MF
CAP ELECT VERT MT lMF
CAP ELECT VERT MT lMF
CAP MET POLY .OlMF
CAP ELECT VERT MT lMF
CAP ELECT VERT MT lOMF
CAP ELECT VERT MT lOMF
CAP ELECT VERT MT 47MF
CAP CER CKOS .lMF
CAP CER CKOS .lMF
CAP ELECT VERi MT lOMF
CAP ELECT VERT MT lOMF
CAP MONO . lMF SOV
CAP ELECT VERT MT lOMF
CAP TANT lMF
CAP CER CKOS . OlMF
NOT USED
CAP CER DISC .lMFD
CAP ELECT VERT MT lMF
DIODE
HP2800
DIODE HP2800
LED HP5082-4487
DIODE ZENER 1N4734A
DIODE 1N4001 RECT
CONN MOLEX PLUG 7 PIN
CONN MOLEX PLUG 14 PIN
SOCKET MOLEX 6 PIN
PCB
TRANSISTOR
2N4121
TRANSISTOR 2N4275
TRANSISTOR 2N4 121
TRANSISTOR 2N4275
TRANSISTOR 2N4121
TRANSISTOR 2N2222
NOT USED
NOT USED
NOT USED
NOT USED
TRANSISTOR
2N4275
1010-0009
1010-0009
1010-0048
1010-0009
1010-0009
1006-0002
1010-0009
1010-0099
1010-0099
1010-0470
1010-0009
1010-0009
1 006 -0002
1010-0009
1010-0099
1010-0099
1010-0048
1015-0001
1015-0001
1010-0099
1010-0099
1016-0010
1010-0099
1008-0011
1015-0 002
1005-0001
1010-0009
1282-2800
1282-2800
1285-4487
1283-4734
1283-4001
2250-6507
2250-6014
2250-5206
16 00-34 10
1271-4121
1271-4275
1271-4121
1271-4275
1271-4121
1271-2222
1271-4275
