The Fire Brick D105 - Layout Drawing

13

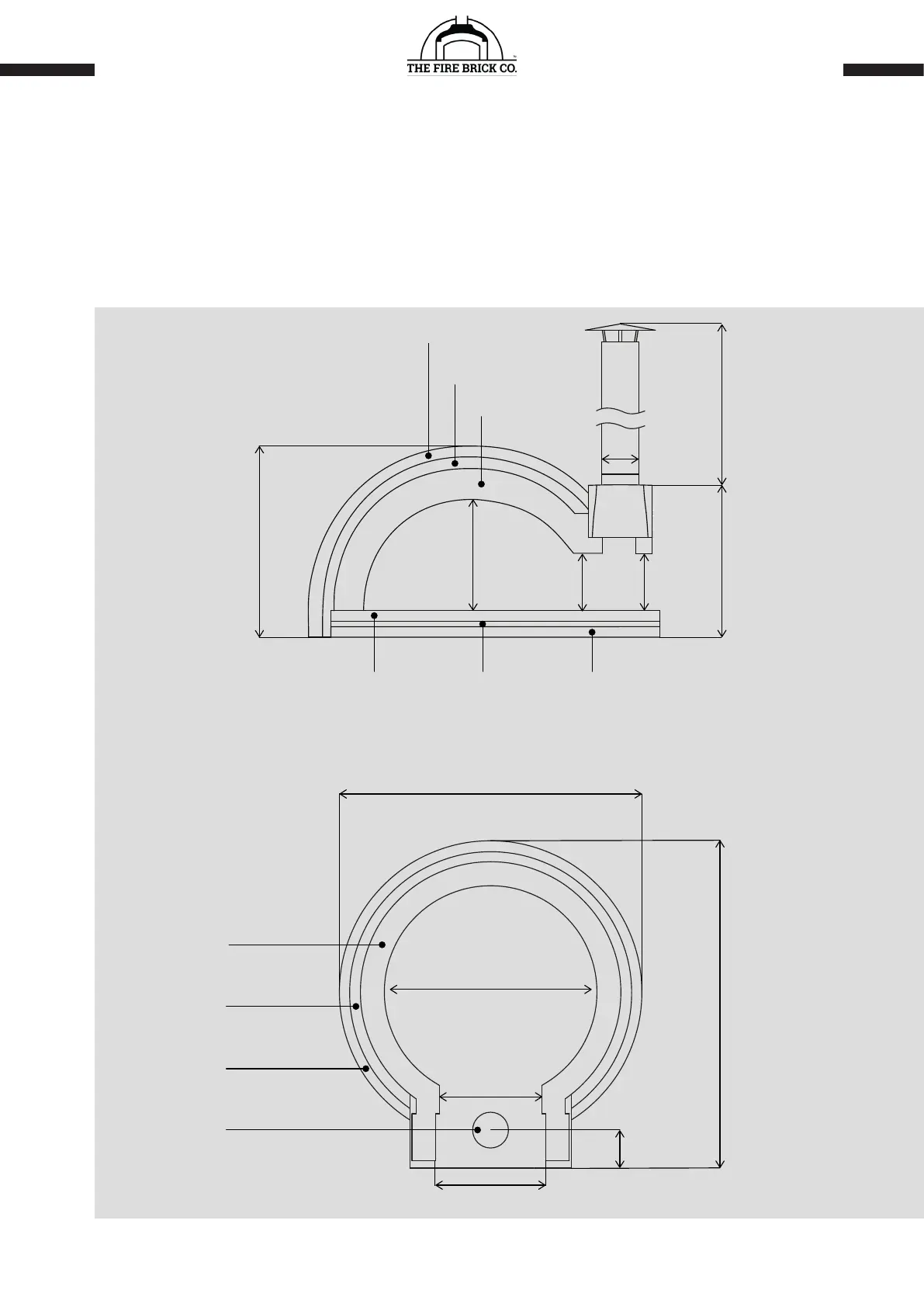

D105 Layout Drawing
115 mm
Fire Brick Dome Wall
50 mm
Ceramic Fibre Insulation
50 mm
Perlite Render Insulation
7 inch
Stainless Steel Flue
50 mm
Fire Brick Tile Floor
PreCast Flue
Gallery
50 mm
Calcium Silicate Board
25 mm
Castable Heat Bank
50 mm
Ceramic Fibre Insulation
50 mm
Perlite Render Insulation
115 mm
Fire Brick Dome Wall
1050 mm
Internal Diameter
500 mm
540 mm
~150 mm
Center of Flue
1480mm
Overall Width
1565 mm
Overall Length
1050 mm
Flue Height
720 mm
Oven Height
~ 865 mm
External Dome Height
525 mm
Internal
Dome Height
335 mm 345 mm
7 inch
Layout Drawing
