The Singing Machine ISM2040 - Location of Controls

— E5 —

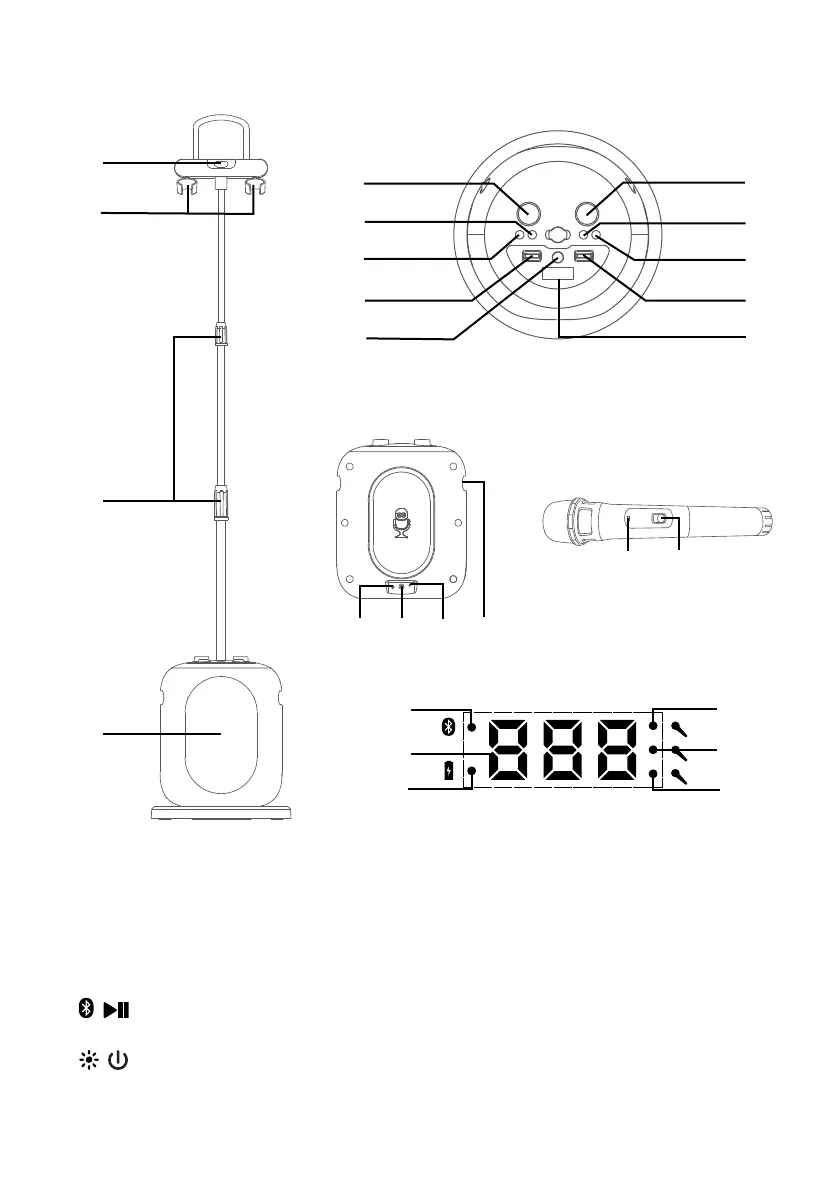

Location of Controls
1. Cradle
2. Mic Holders
3. MIC stand locks
4. Speaker
5. Mic Volume/VOCAL OFF
Control
6. / (Bluetooth/ Play/
Pause Button
7. / (LIGHTS/On/
Standby) button
8. VOCAL EFFECTS Control
9. PERFECT PITCH Button
10. MUSIC VOLUME
Control
11. RECORD Button
12. PLAYBACK Button
13. EFFECTS STRENGTH
Control
14 Display
15. DC In Jack
16. Mic 3 Jack
17. AUX In Jack
18. Handle
19. Wireless Mic battery
indicator
20. Wireless Mic ON/OFF
button
21. Bluetooth indicator
22. Battery indicator
23. Mic 1 indicator
(wireless)
24. Mic 2 indicator
(wireless)
25. Mic 3 indicator (wired)
