4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.

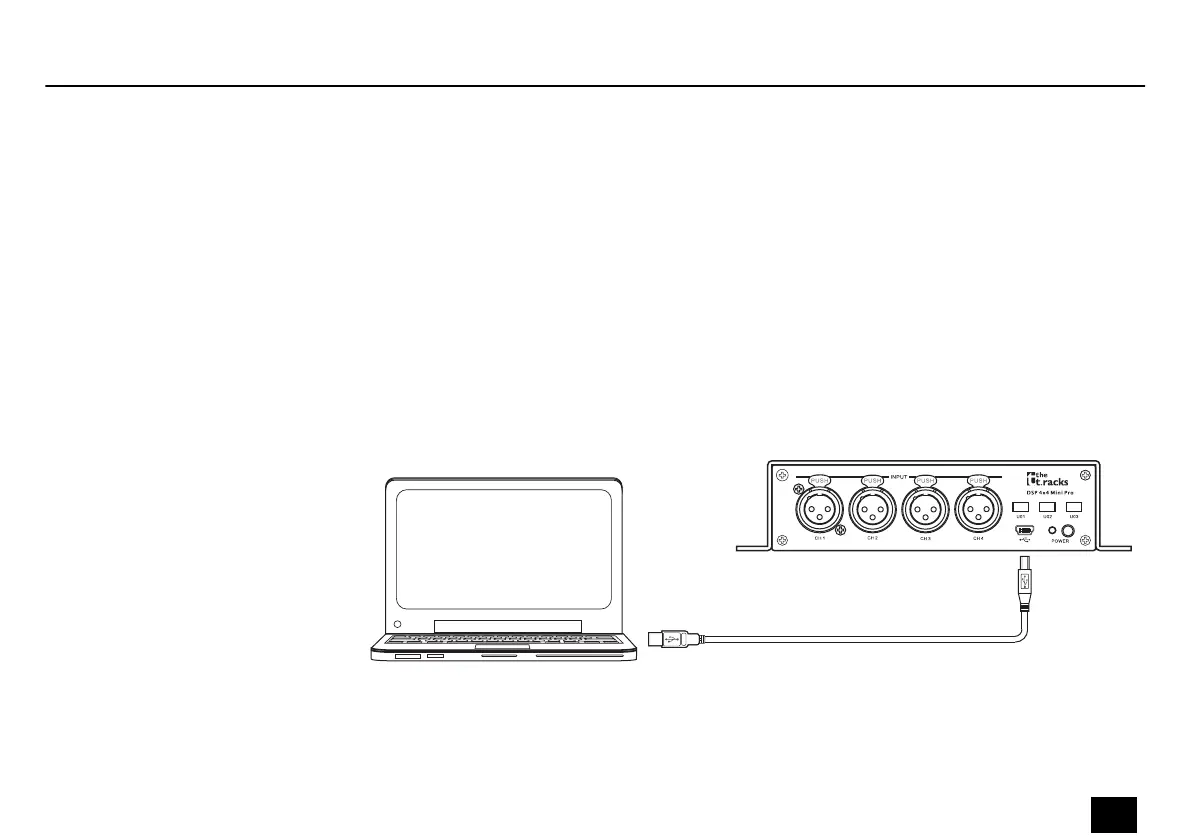

The gure schematically shows how the device can be controlled via a computer's USB port.
The gure shows two dierent ways to attach the left and right rack angles for rack mounting.
Conguration example
1 RU for rack mounting
Installation and starting up
DSP 4x4 Mini Pro
