The Wings Maker Flyboy 50 - Page 3

P.2

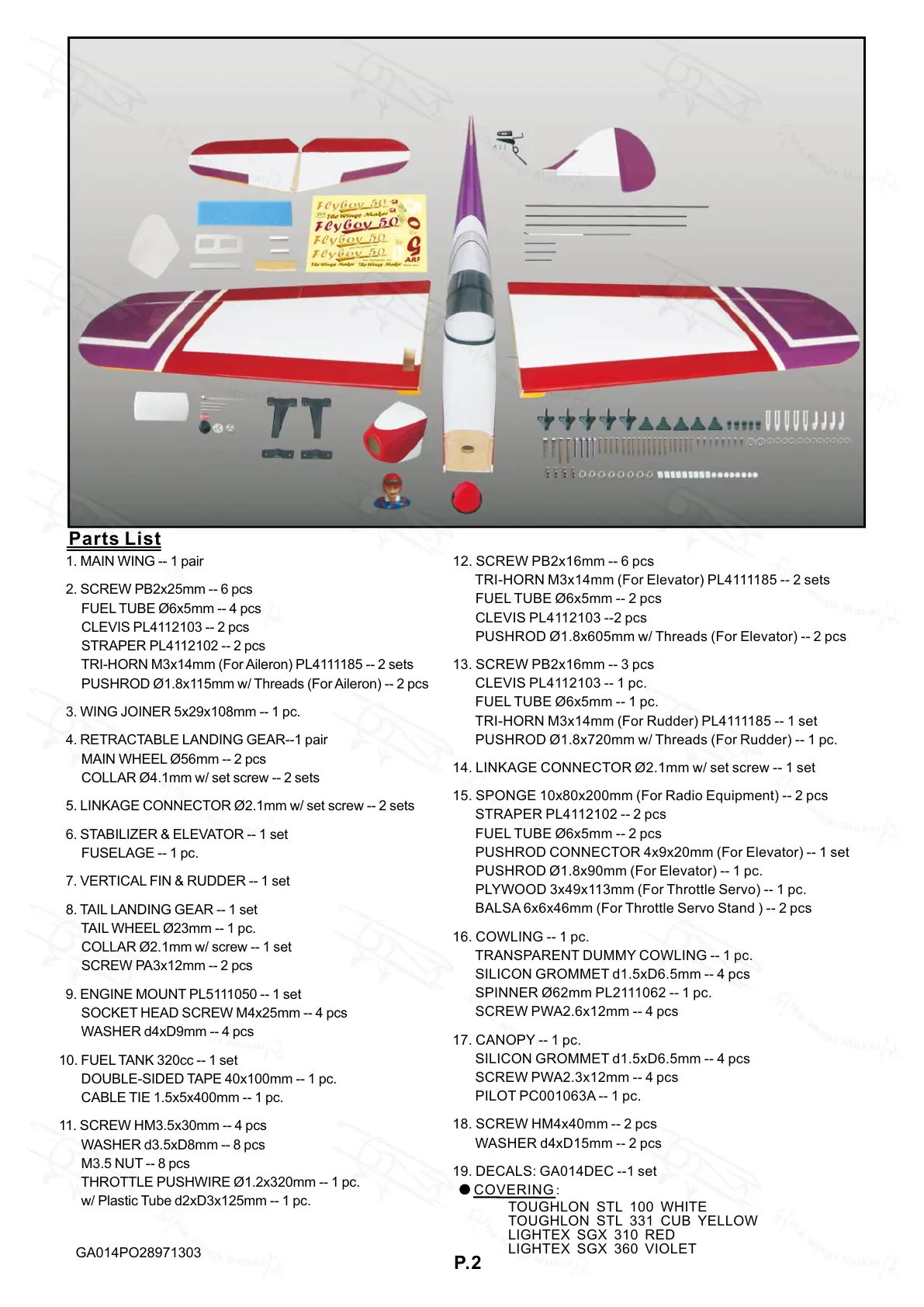

Parts List
COVERING:
TOUGHLON STL 100 WHITE
TOUGHLON STL 331 CUB YELLOW
LIGHTEX SGX 310 RED
LIGHTEX SGX 360 VIOLET
1. MAIN WING -- 1 pair
2. SCREW PB2x25mm -- 6 pcs
FUEL TUBE Ø6x5mm -- 4 pcs
CLEVIS PL4112103 -- 2 pcs
STRAPER PL4112102 -- 2 pcs
TRI-HORN M3x14mm (For Aileron) PL4111185 -- 2 sets
PUSHROD Ø1.8x115mm w/ Threads (For Aileron) -- 2 pcs
3. WING JOINER 5x29x108mm -- 1 pc.
4. RETRACTABLE LANDING GEAR--1 pair
MAIN WHEEL Ø56mm -- 2 pcs
COLLAR Ø4.1mm w/ set screw -- 2 sets
5. LINKAGE CONNECTOR Ø2.1mm w/ set screw -- 2 sets
6. STABILIZER & ELEVATOR -- 1 set
FUSELAGE -- 1 pc.
7. VERTICAL FIN & RUDDER -- 1 set
8. TAIL LANDING GEAR -- 1 set
TAIL WHEEL Ø23mm -- 1 pc.
COLLAR Ø2.1mm w/ screw -- 1 set
SCREW PA3x12mm -- 2 pcs
9. ENGINE MOUNT PL5111050 -- 1 set
SOCKET HEAD SCREW M4x25mm -- 4 pcs
WASHER d4xD9mm -- 4 pcs
10. FUEL TANK 320cc -- 1 set
DOUBLE-SIDED TAPE 40x100mm -- 1 pc.
CABLE TIE 1.5x5x400mm -- 1 pc.
11. SCREW HM3.5x30mm -- 4 pcs
WASHER d3.5xD8mm -- 8 pcs
M3.5 NUT -- 8 pcs
THROTTLE PUSHWIRE Ø1.2x320mm -- 1 pc.
w/ Plastic Tube d2xD3x125mm -- 1 pc.
12. SCREW PB2x16mm -- 6 pcs
TRI-HORN M3x14mm (For Elevator) PL4111185 -- 2 sets
FUEL TUBE Ø6x5mm -- 2 pcs
CLEVIS PL4112103 --2 pcs
PUSHROD Ø1.8x605mm w/ Threads (For Elevator) -- 2 pcs
13. SCREW PB2x16mm -- 3 pcs
CLEVIS PL4112103 -- 1 pc.
FUEL TUBE Ø6x5mm -- 1 pc.
TRI-HORN M3x14mm (For Rudder) PL4111185 -- 1 set
PUSHROD Ø1.8x720mm w/ Threads (For Rudder) -- 1 pc.
14. LINKAGE CONNECTOR Ø2.1mm w/ set screw -- 1 set
15. SPONGE 10x80x200mm (For Radio Equipment) -- 2 pcs
STRAPER PL4112102 -- 2 pcs
FUEL TUBE Ø6x5mm -- 2 pcs
PUSHROD CONNECTOR 4x9x20mm (For Elevator) -- 1 set
PUSHROD Ø1.8x90mm (For Elevator) -- 1 pc.
PLYWOOD 3x49x113mm (For Throttle Servo) -- 1 pc.
BALSA 6x6x46mm (For Throttle Servo Stand ) -- 2 pcs
16. COWLING -- 1 pc.
TRANSPARENT DUMMY COWLING -- 1 pc.
SILICON GROMMET d1.5xD6.5mm -- 4 pcs
SPINNER Ø62mm PL2111062 -- 1 pc.
SCREW PWA2.6x12mm -- 4 pcs
17. CANOPY -- 1 pc.
SILICON GROMMET d1.5xD6.5mm -- 4 pcs
SCREW PWA2.3x12mm -- 4 pcs
PILOT PC001063A -- 1 pc.
18. SCREW HM4x40mm -- 2 pcs
WASHER d4xD15mm -- 2 pcs
19. DECALS: GA014DEC --1 set
GA014PO28971303
