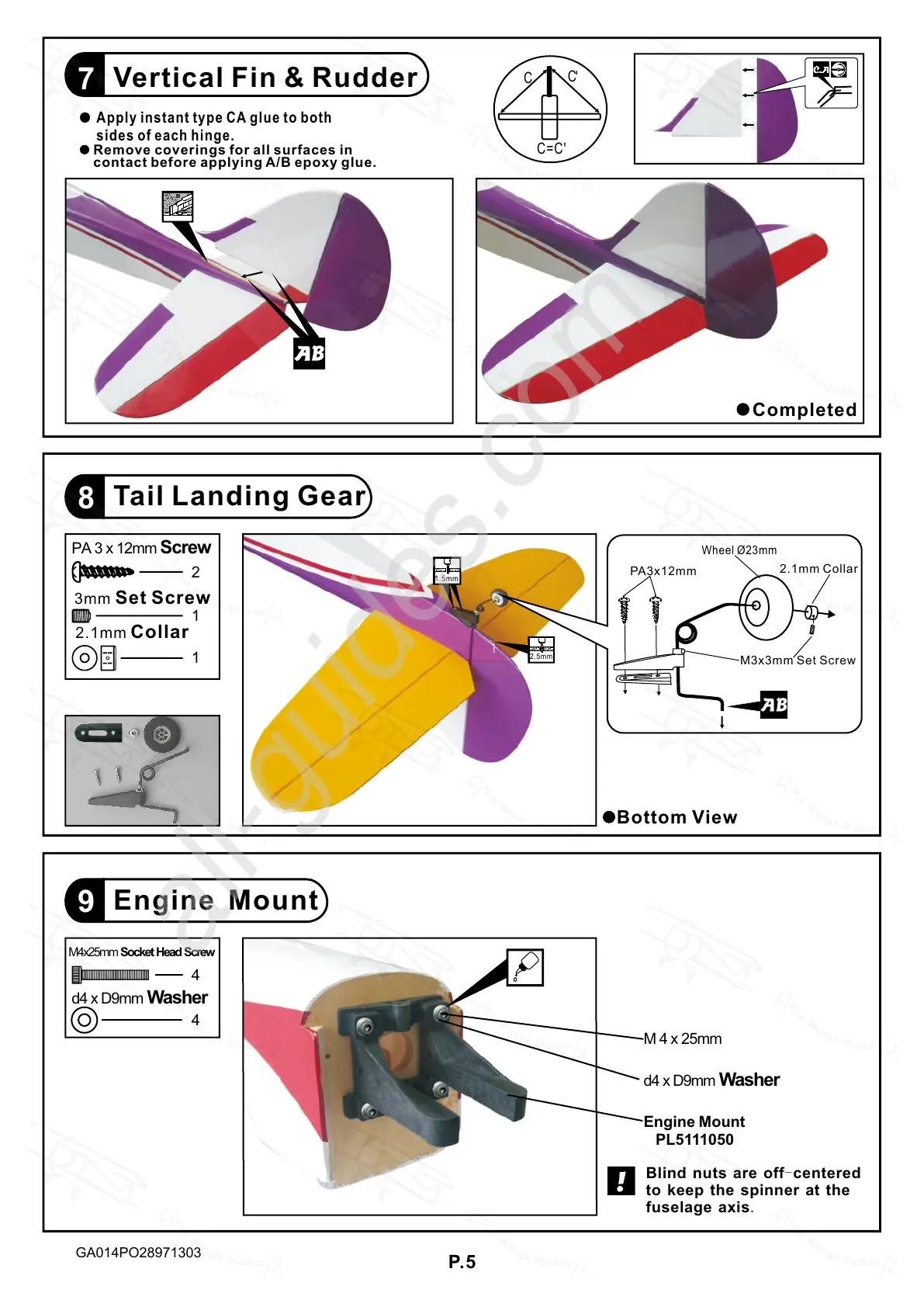

The Wings Maker Flyboy 50 - Page 6

P.5
7
Vertical Fin & Rudder
Apply instant type CA glue to both
sides of each hinge.
Tail Landing Gear
8
3mm Set Screw
2.1mm Collar
2
1
1
PA 3 x 12mm Screw
1.5mm
Engine Mount
9
4
M4x25mm SocketHead Screw
4
d4 x D9mm Washer
C=C'
C
C
Completed
2.5mm
Bottom View
M3x3mm Set Screw
PA3x12mm
2.1mm Collar
Wheel 23mmØ
Blind nuts are off-centered
to keep the spinner at the
fuselage axis.
Engine Mount
PL5111050
d4 x D9mm Washer
M 4 x 25mm
Remove coverings for all surfaces in
contact before applying A/B epoxy glue.
GA014PO28971303
