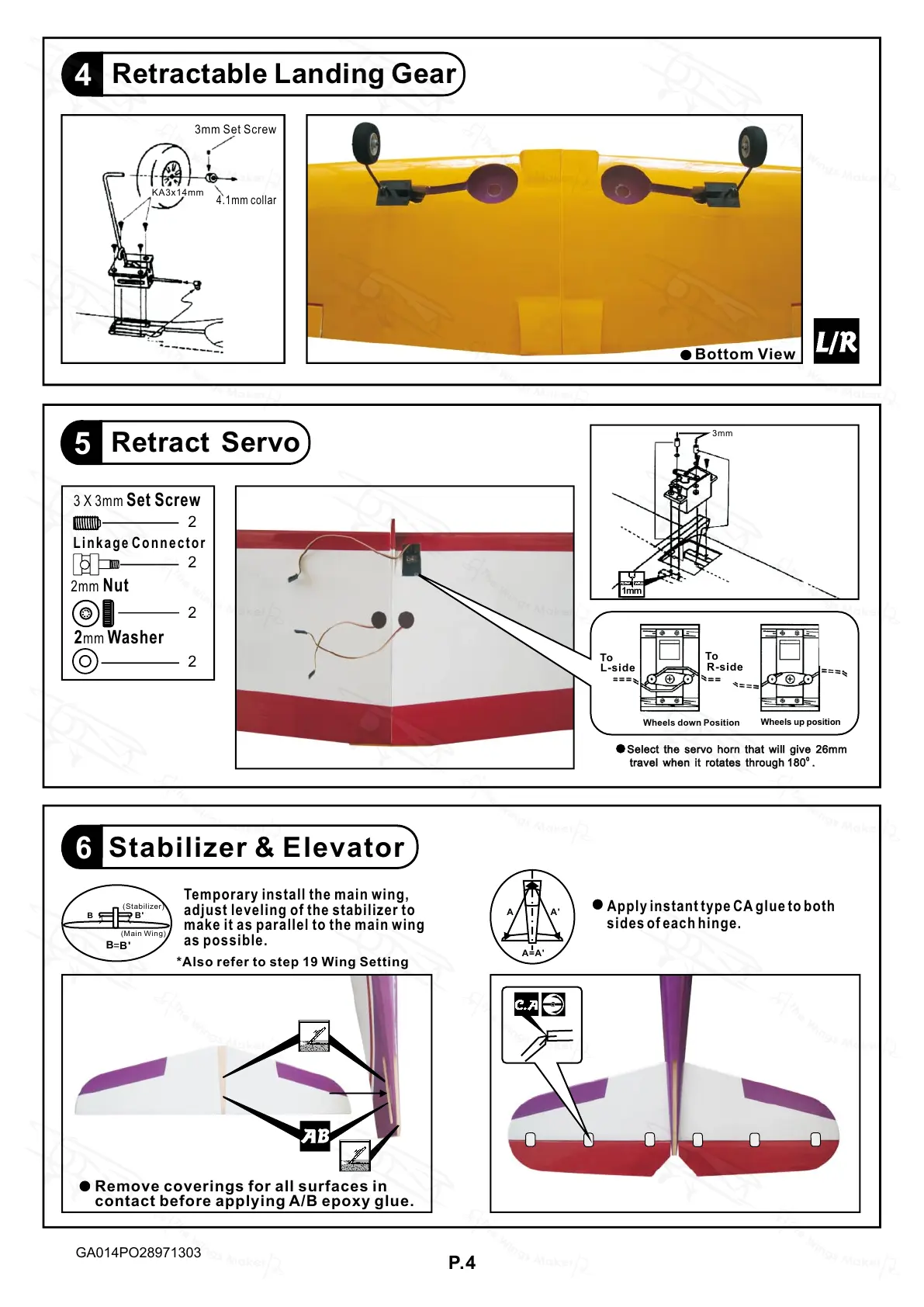

P.4
Retractable Landing Gear
4
3mm Set Screw
KA3x14mm
4.1mm collar
Bottom View
Retract Servo
5
3 X 3mm Set Screw
2
L i n k a g e C o n n e c t o r
2
2mm Nut
2
2mm Washer
2
Select the servo horn that will give 26mm
0
travel when it rotates through 180 .
Wheels up position
Wheels down Position
To
R-side
To
L-side
1mm
3mm
6
Stabilizer & Elevator
A A'
A=A'
Temporary install the main wing,
adjust leveling of the stabilizer to
make it as parallel to the main wing
as possible.
Apply
instant
type
CA
glue
to
both
sides
of
each
hinge.
*Also refer to step 19 Wing Setting
Remove coverings for all surfaces in
contact before applying A/B epoxy glue.
GA014PO28971303
