Up Button ▲  Push to scroll UP when using the LCD display.
Enter Button   Push to confirm information entered into the LCD display.
Escape Button ESC
 Push to leave the current LCD menu.
N4200 series:

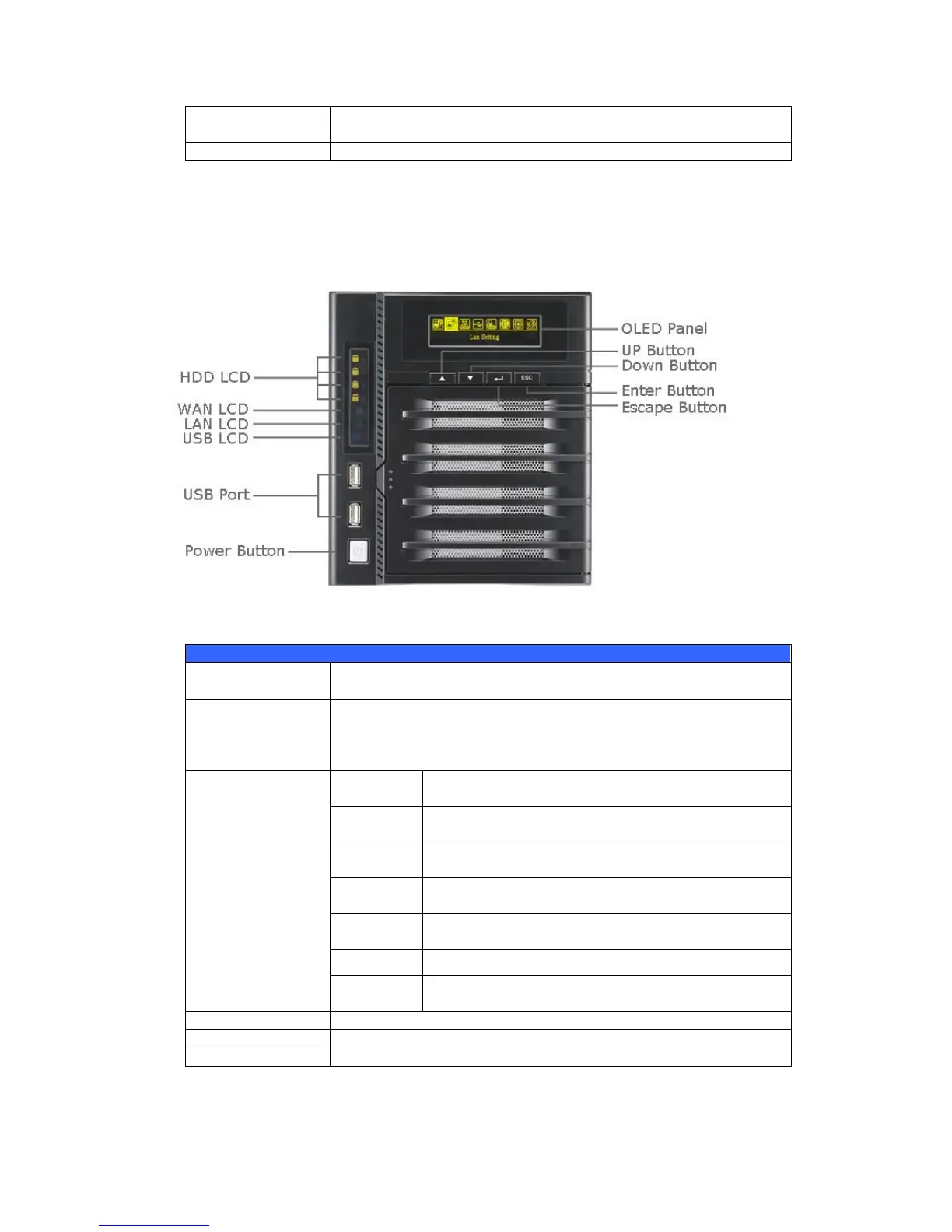

The Thecus N4200series front panel has the device’s controls, indicators, and hard
disk trays:
Front Panel
Item Description
Power Button  Power on/off N4200series
OLED  Displays current system status and messages
 OLED screen saver will be enabled after screen is left idle for more
than 3 mins
 OLED screen will be diabled after it is left idle for more than 6 mins
HDD 1 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 2 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 3 LED
 Yellow: HDD activity
 Red: HDD failure
HDD 4 LED
 Yellow: HDD activity
 Red: HDD failure
WAN/LAN1
LED
 Blinking green: network activity
LAN2 LED  Blinking green: network activity
OLED
USB Copy ● Blue: USB Copy activity
● Red: USB Copy failure
HDD Tray  Four HDD trays support 4x 3.5" or 4 x 2.5” HDDs
USB Copy Button  Copies USB storage contents to the N4200 series.
USB Port  USB 2.0 port for compatible USB devices, such as USB disks.
