N7700 Series:

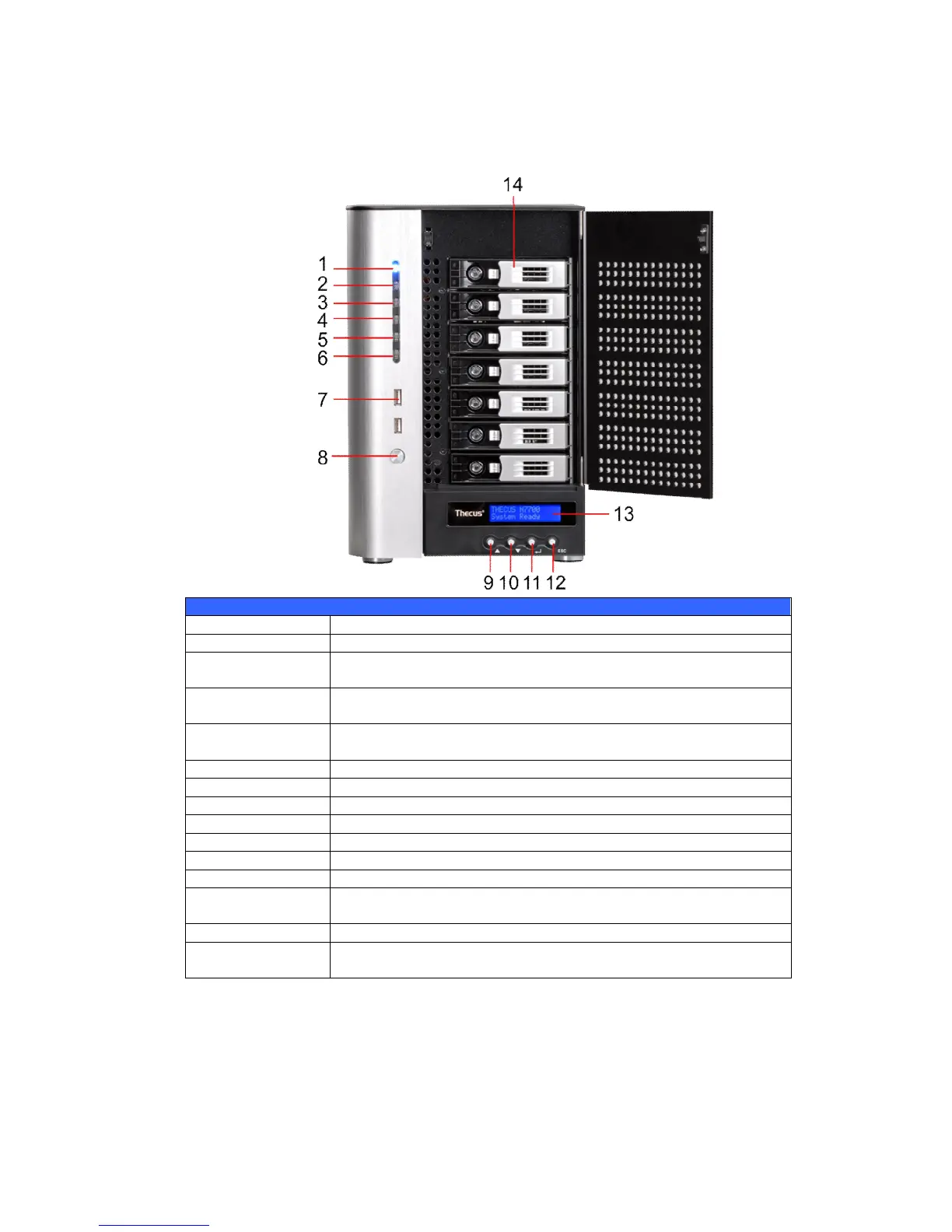

The Thecus N7700 series front panel has the device’s controls, indicators, and hard
disk trays:
Front Panel
Item Description
1.Power LED  Solid blue: System is power on.
2.System LED  Solid orange: system is being upgraded or system startup; data
currently inaccessible
3.WAN/LAN1 LED  Solid green: network link
 Blinking green: network activity
4.LAN2 LED  Solid green: network link
 Blinking green: network activity
5.USB Copy LED  Solid blue: files are being copied from a USB storage device
6.eSATA link LED  Solid blue: external eSATA device has connected
7.USB Port  USB 2.0 port for compatible USB devices, such as USB disks.
8.Power Button  Power on/off N7700
9.Up Button ▲  Push to scroll up when using the LCD display
10.Down Button ▼
 Push to enter USB copy operation screen
11.Enter Button   Push to enter LCD operate password for basic system setting
12.Escape Button
ESC
 Push to leave the current LCD menu
13.LCD Display  Displays current system status and warning messages
14.HDD Trays  Seven 3.5” SATA HDD trays
 Locks are provided for added security
