Thermador MES301HS Installation Manual

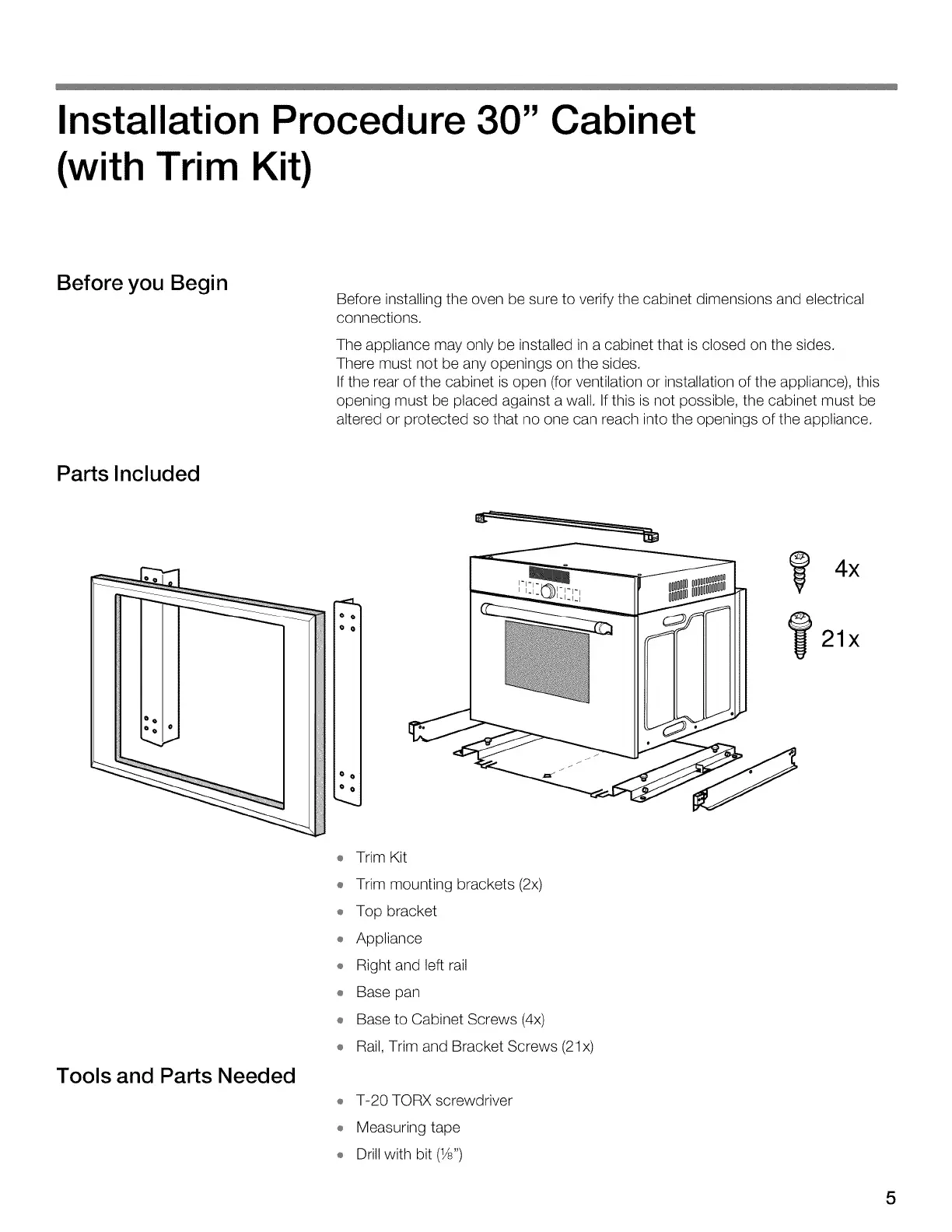

Installation Procedure 30” Cabinet
(with Trim Kit)
Before you Begin
Parts Included
Tools and Parts Needed
Before installing the oven be sure to verify the cabinet dimensions and electrical
connections.
The appliance may only be installed in a cabinet that is closed on the sides.
There must not be any openings on the sides.
if the rear of the cabinet is open (for ventilation or installation of the appliance), this
opening must be placed against a wall. If this is not possible, the cabinet must be
altered or protected so that no one can reach into the openings of the appliance.
00000
oe
e Trimkit
e Trim mounting brackets (2x)
« Top bracket
e Appliance
e Right and left rail
« Base pan
e Base to Cabinet Screws (4x)
e Rail, Trim and Bracket Screws (21x)
@ 7-20 TORX screwdriver
e Measuring tape
@ Drill with bit (”)

Thermador MES301HS Specifications

General

Brand	Thermador
Model	MES301HS
Category	Oven
Language	English
