TO REMOVE THE TOP OVEN CELL FROM MID PLENUM:
1) DISCONNECT THE 2 LIGHT HARNESS PLUGS.
2) DISCONNECT UPPER AND LOWER PROBE HARNESSES AT THE RELAY BOARD.
3) DISCONNECT WIRES AT BAKE ELEMENT.
4) REMOVE 4 SCREWS ON EACH SIDE THAT ATTACH THE TOP OVEN CAN CELL TO THE
MID PLENUM.
5) REMOVE 4 SCREWS IN REAR THAT ATTACH THE TOP OVEN CAN CELL TO THE MID
PLENUM.
6) LIFT THE TOP OVEN CAN CELL OFF OF THE MID PLENUM.

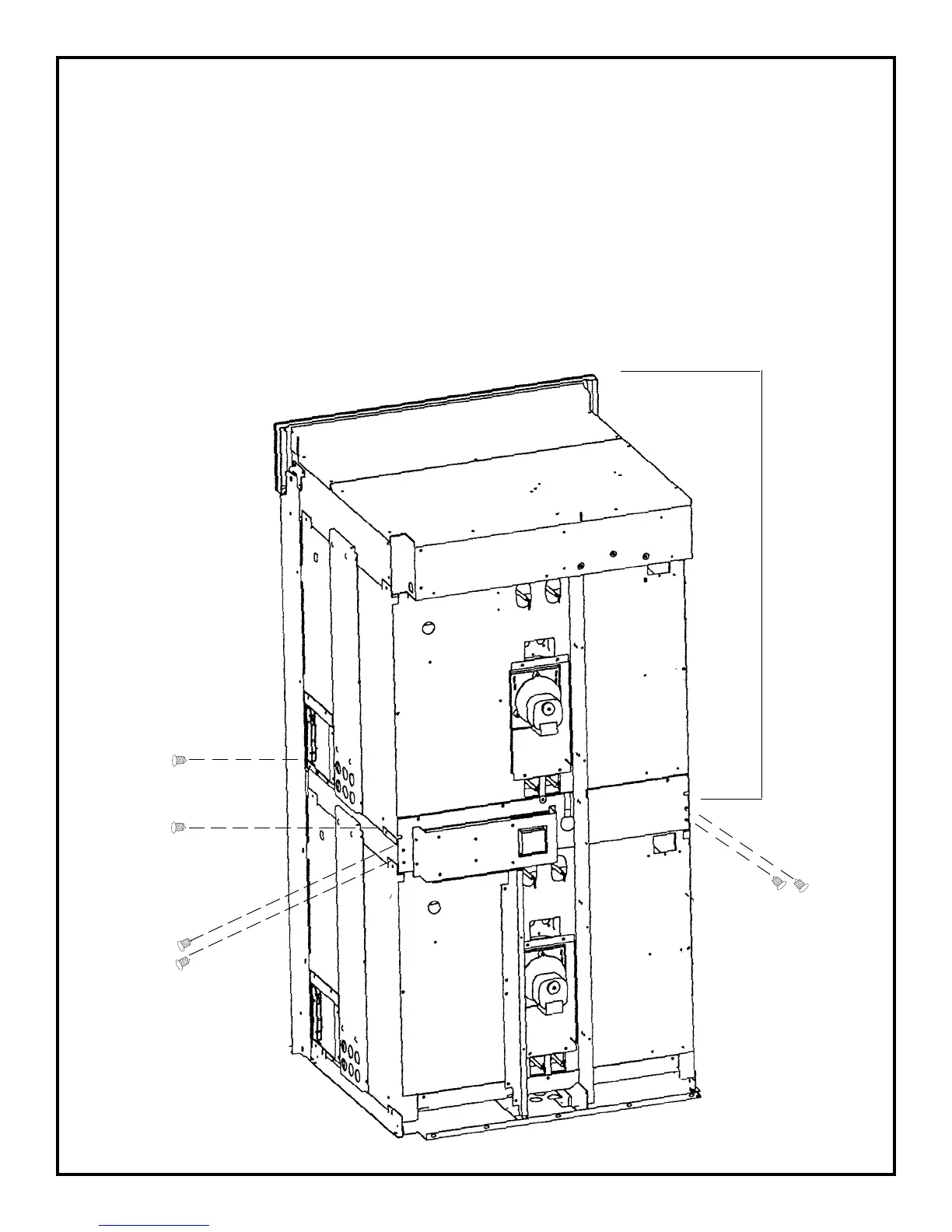

FIGURE 16.
(Relay Board)
Inside
Side Screws
Top Oven
Can Cell
Lift Up
Rear Screws
