Thermador SC272T - Lower Plenum Securing and Sealing

17

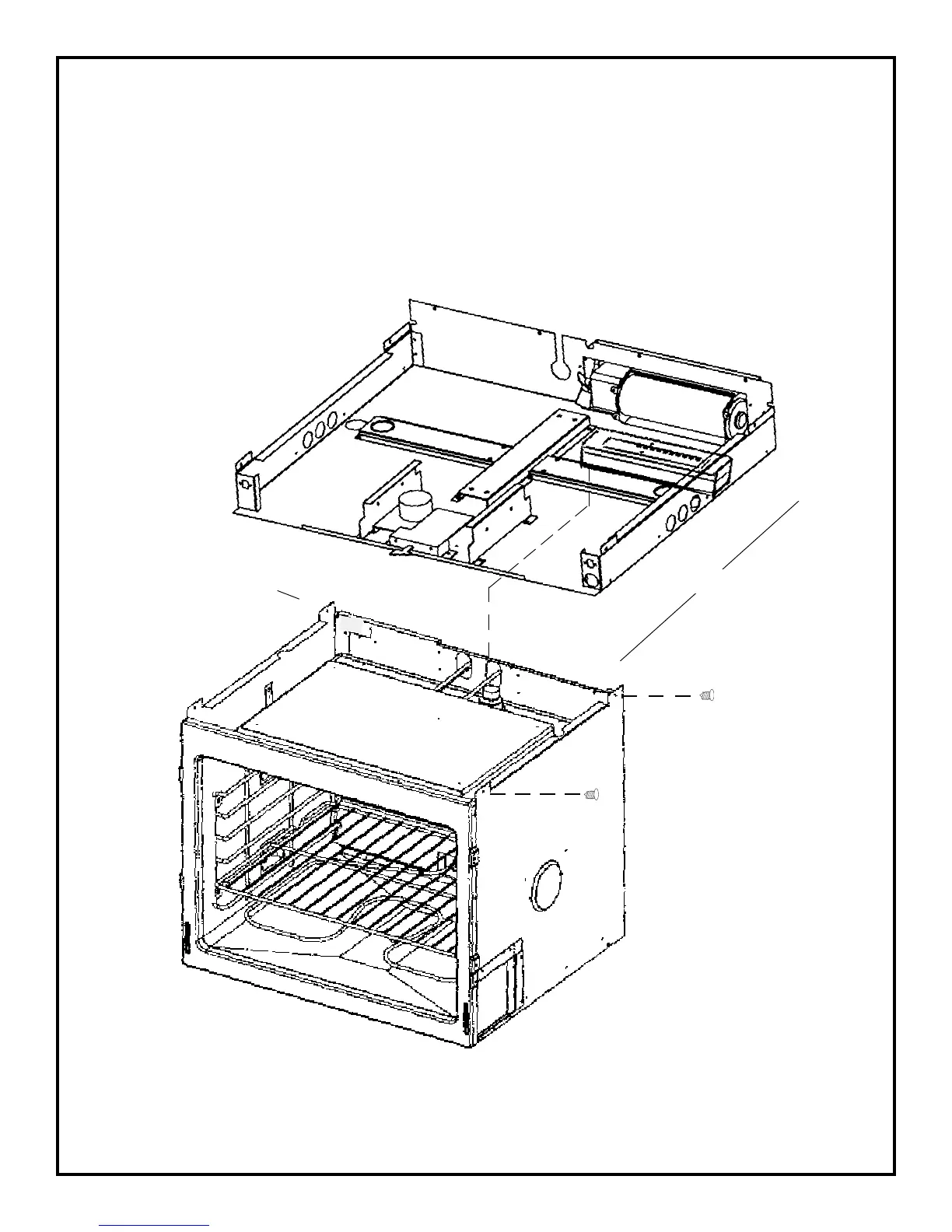

3) SLIDE PLENUM OVER TOP OF OVEN CELL AND LINE UP NEW VENT TUBE WITH CATALYST:
4) SECURE PLENUM TO LOWER OVEN CELL.
5) COVER SQUARE HOLE FOR OLD VENT TUBE WITH ALUMINUM TAPE.
(Line Up)
Square Hole with
Aluminum Tape
FIGURE 22.
➛
➛
➛
Slide Plenum
➛
(4) Side Screws
➛
