Thermador SC272T - Final Assembly and Calibration; Oven Reassembly Procedures

18
RE ASSEMBLE OVEN:
1) REINSTALL THE TOP OVEN CELL ON TO THE MID PLENUM.
2) REINSTALL VERTICAL VENT TUBE FOR STRUCTURE SUPPORT.
3) REISTALL VERTICAL CHANNEL SUPPORT.
4) REINSTALL WIRE HOLDERS.❋
5) REINSTALL RED WIRE TIES. ✫
6) RECONNECT BAKE AND BROIL WIRES.
7) RECONNECT WIRES AT CONVECTION MOTOR.
8) REINSTALL REAR PANEL COVER.

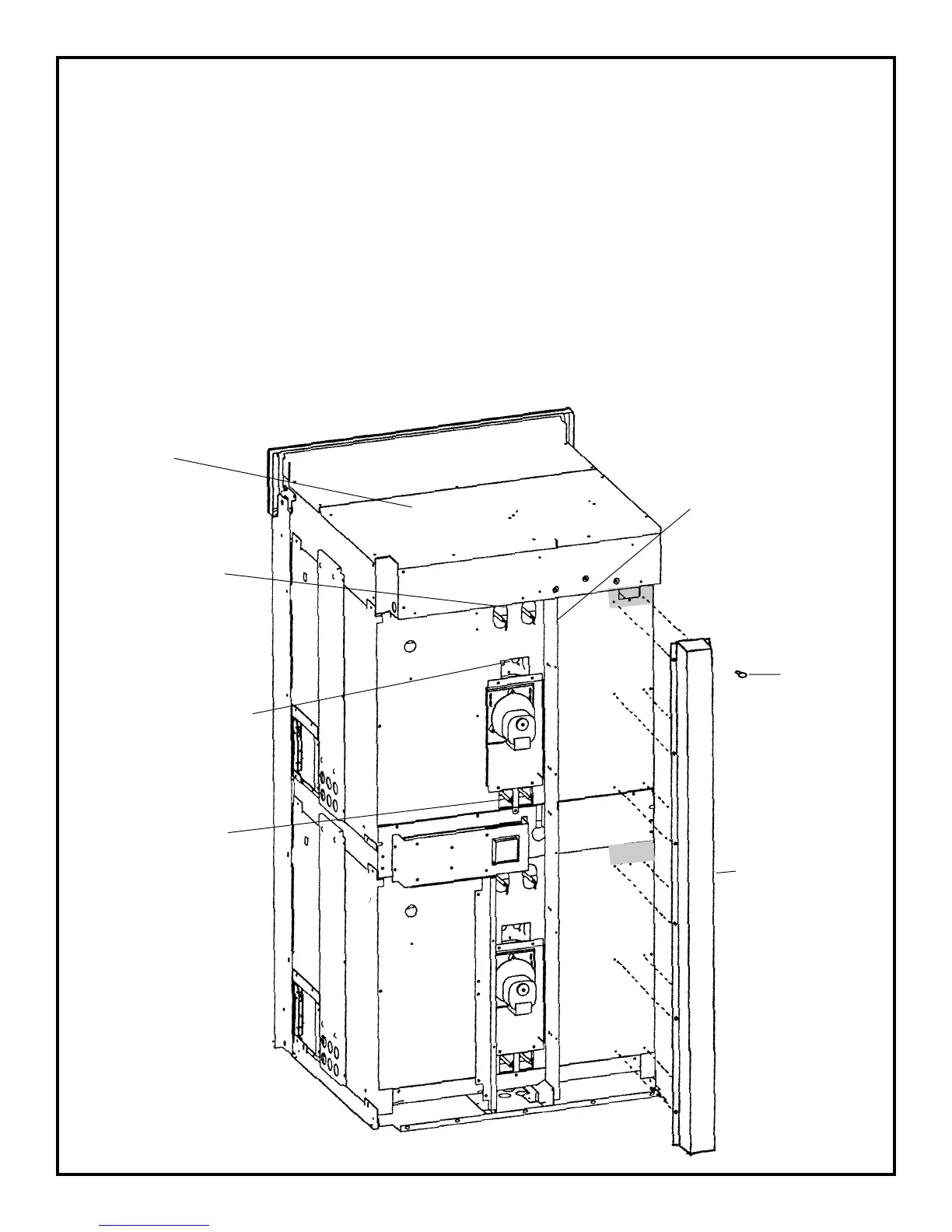

Vertical Channel Support
Top Plenum
Broil Element Wires
Convection Motor Wires
FIGURE 23
Screws (10)
Vertical Vent Tube
Bake Element Wires
✫
✫
✫
❋
❋
❋
❋
❋
➛
➛
➛
➛
➛
➛
