OVEN DOOR
Pull Clips
Out Of Holes
In Oven Door
Remove & Discard
GASKET
INSET
WARNING
With the door off, never release the levers
and try to close the hinges. Without the
weight of the door, the powerful springs
will snap the hinges closed with great force.
Raise Clip to “Locked Position”
to Remove Door
Lower
Clip
After
Door is
Replaced
Hinge Arm
Latch Hinge
REINSTALL OVEN DOOR:
1) GRASP THE SIDES OF THE DOOR AT THE CENTER AND INSERT THE ENDS OF THE HINGES
INTO THE SLOTS IN THE OVEN FRONT FRAME AS FAR AS THEY WILL GO (SEE ILLUSTRATION
BELOW).
2) WITH THE DOOR OPEN ALL THE WAY, LOWER THE TWO LOCKING CLIPS.
3) REMOVE AND DISCARD THE CENTER INSERT DOOR GASKET. SEE FIGURE 24.
4) RAISE THE OVEN DOOR AND MAKE SURE THAT IT FITS EVENLY WITH THE FRONT SIDES.

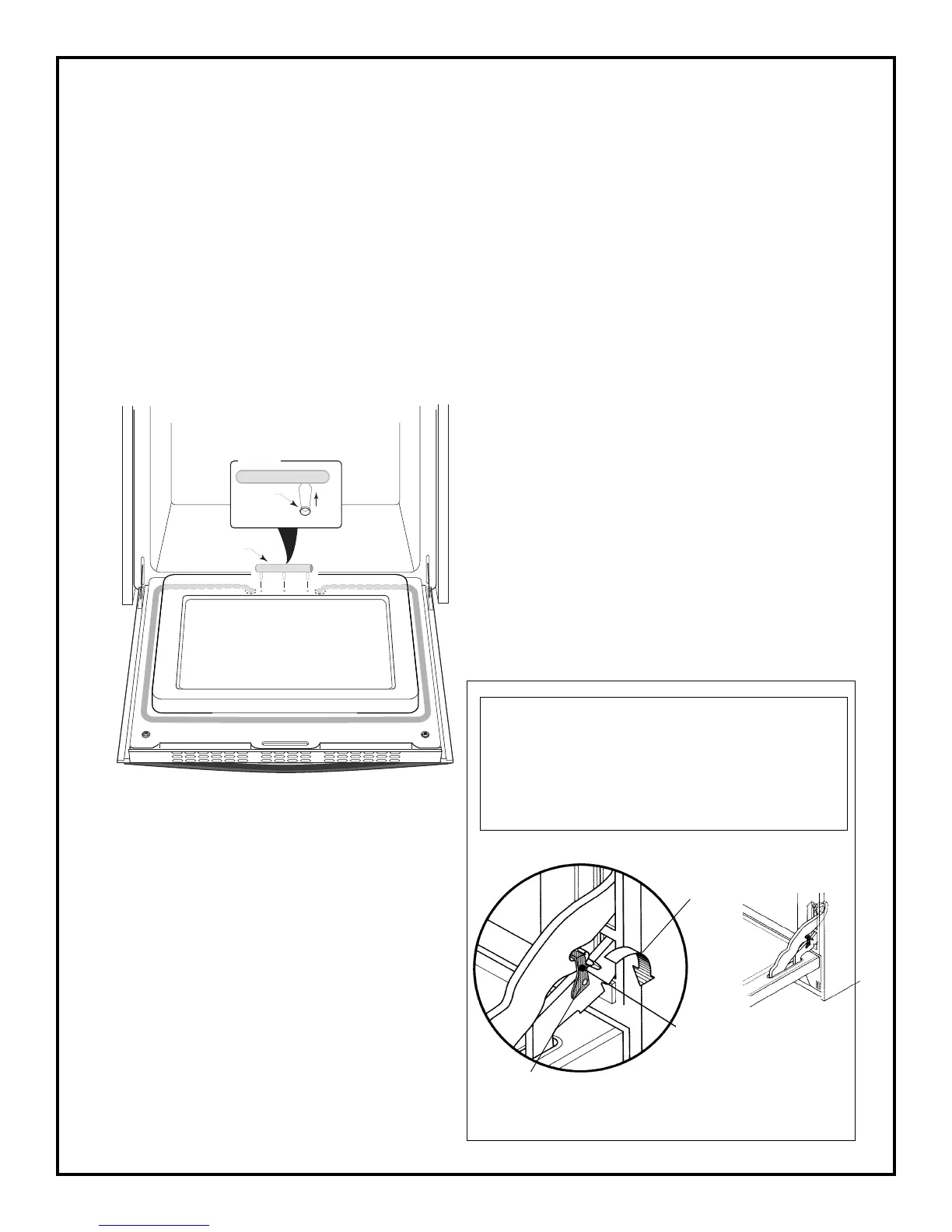

FIGURE 24.
To Next Page
