2
To Remove the Oven Door
1. Fully open the oven door.
2. Raise the U-clip over the hook on each of the
hinges to the “locked” position (see illustration
below). This will prevent the hinge from snap-
ping closed when the door is removed.
3. Grasp the door by the sides toward the back.
Raise the front of the door several inches (there
will be some spring resistance to overcome be-
cause of the hinge being locked). When the front
of the door is high enough, you will be able to
lift the hinges to clear the indents.
4. Pull the hinges out of the slots in the oven front
frame.
WARNING
Turn of the electrical power circuit to the
oven at the main junction box, before
servicing this unit.
WARNING
With the door off, never release the levers
and try; to close the hinges. Without the
weight of the door, the powerful springs will
snap the hinges closed with great force.

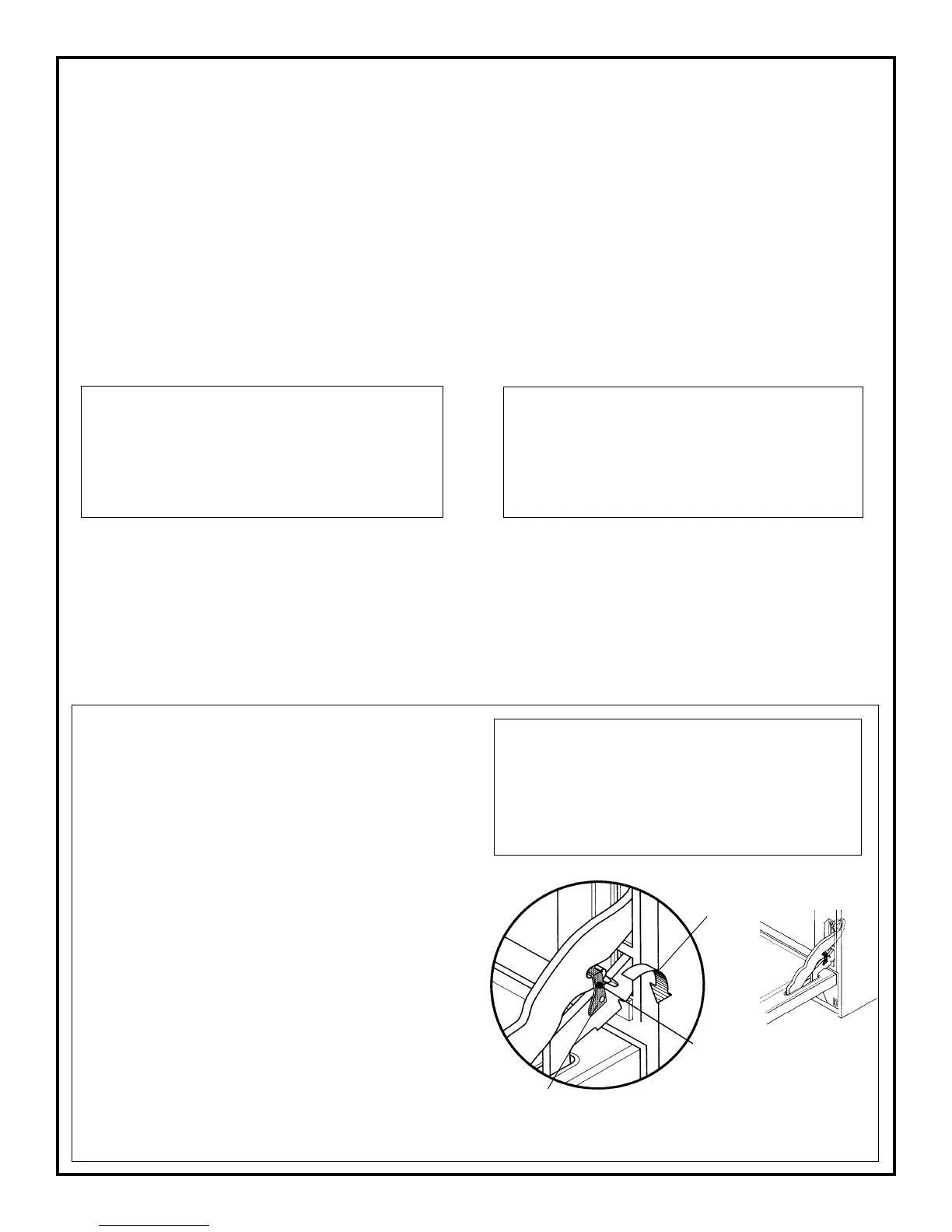

FIGURE 1.
Raise Clip to “Locked Position
to Remove Door
Lower
Clip
After
Door is
Replaced
Hinge Arm
Latch Hinge
THESE KITS WILL BE COMPRISED OF THE FOLLOWING:
Quantity Description Part Number
1 Upper Vent Tube 16-10-058
1 Lower Vent Tube 16-10-059
2 Insulation 14-38-692
2 Templets (Inside of Instructions)
8 Screws 14-91-102
1 Kit Instructions 96-93-563 Rev A
1 Bracket Blower Mounts 14-38-482-01
NOTE: THE OVEN WAS SHIPPED WITH THE THERMOSTAT ADJUSTED AT +25 DEGREES.
WITH THE NEW UPWARD VENT, THE OVEN NEEDS TO BE CALIBRATED TO ZERO.
INSTRUCTIONS, TAKEN FROM THE CARE AND USE MANUAL, ARE FOUND ON PAGE 20
OF THIS PUBLICATION.
CAUTION
When you work on the oven, be careful
when handling the sheet metal parts. There
are sharp edges present and you can cut
yourself if you are not careful.
TO CONVERT THE UPPER OVEN CELL
REMOVE OVEN FROM WALL:
1) TURN OFF ELECTRICITY AT CIRCUIT BREAKER.
2) REMOVE MOUNTING SCREWS FROM CABINET.
3) DISCONNECT ELECTRICAL CONNECTIONS.
4) REMOVE OVEN DOORS. Figure 1.
5) REMOVE OVEN FROM WALL AND PLACE ON DOLLY OR PROTECTED FLOOR.
