Remove the three screws 3, 4 and 5 that mount the
motor to the bracket. See Figure 8.
Remove the three screws from the blower motor bracket on the back of the plenum
and turn the assembly around so thhat the back faces you. See Figure 9.

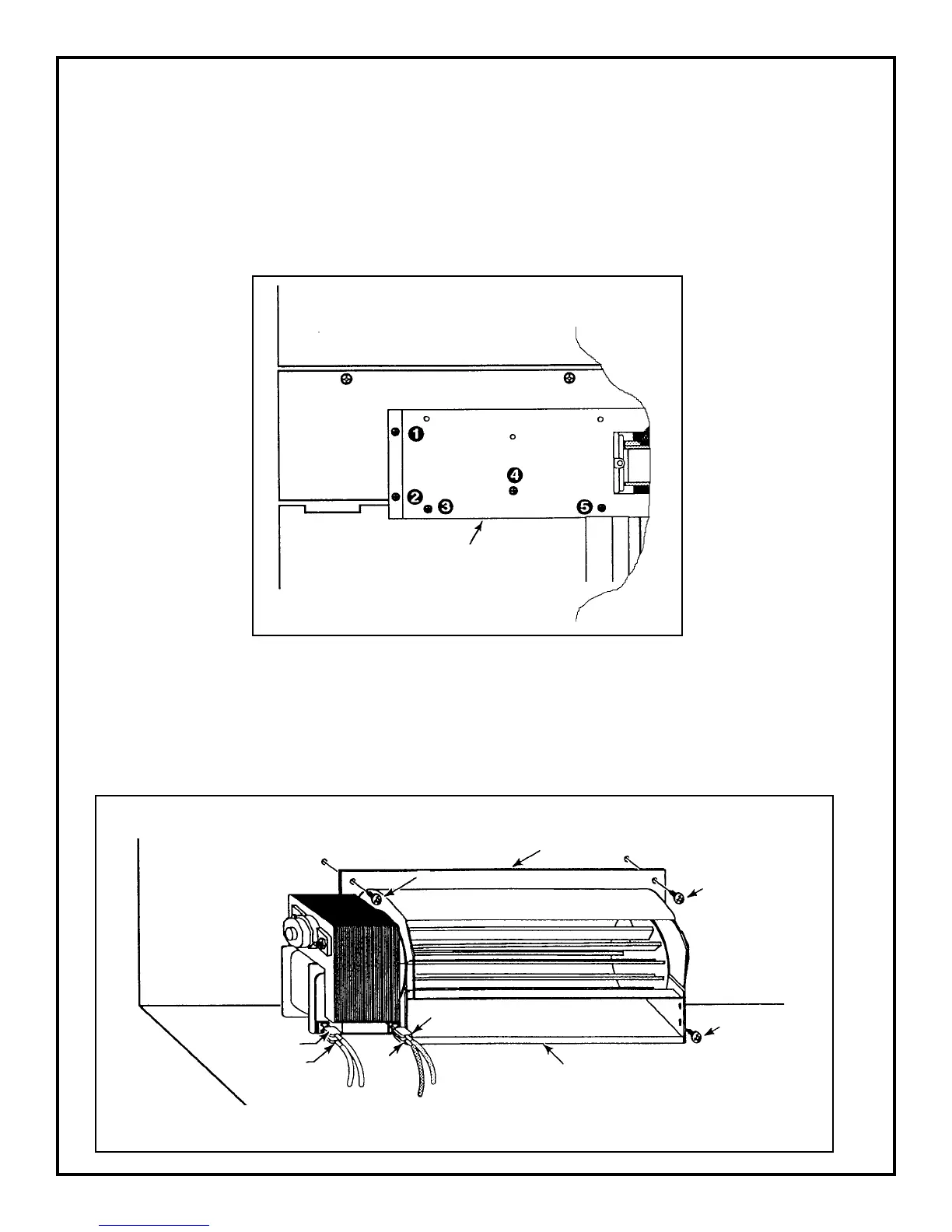

FIGURE 8. LOWER BLOWER BRACKET
Blower Bracket
FIGURE 9. BACK OF PLENUM
Upper Blower
Mounting Bracket
Screw
Screw
Screw
Lt Blue (97)
Dk Blue
(23)
White (98)
White (24)
PREPARE OVEN PLENUM FOR CONVERSION:
1) REMOVE BLOWER AND BLOWER BRACKET FROM PLENUM.
(bracket must be changed).
To Next Page
