Thermal Zone MS29A13115A - Prepare refrigeration Lines

- -
11

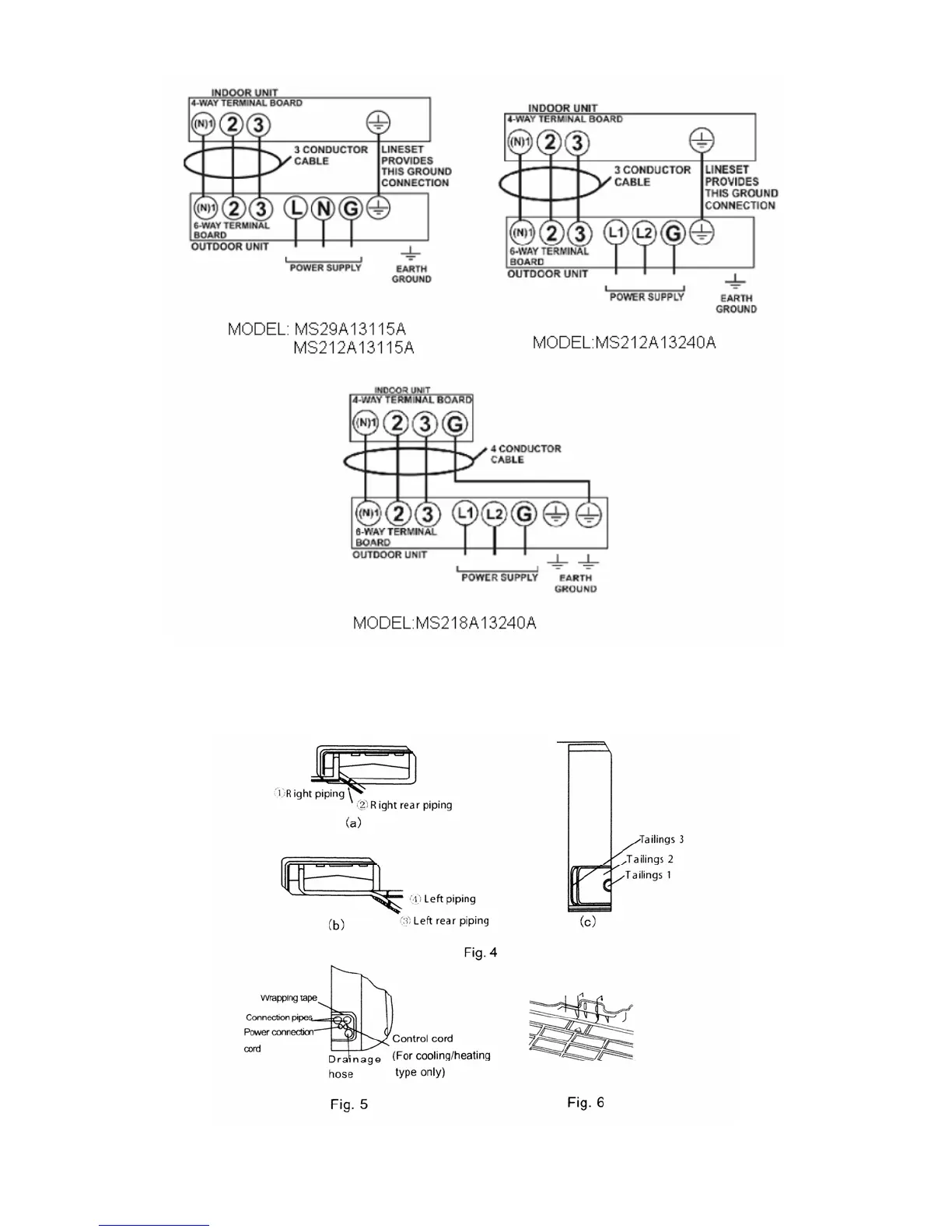

Wire the Indoor Unit (cont.)
Prepare refrigeration Lines
• Refrigeration Lines and wiring can be routed from the indoor unit several different ways using the cut-out access
pieces on the back of the unit.
• Bend the refrigeration lines carefully to the position needed to align with the drilled piping hole.
