THERMEx THW20 - Page 41

Heat Pump Manual
41
WIRING DIAGRAM

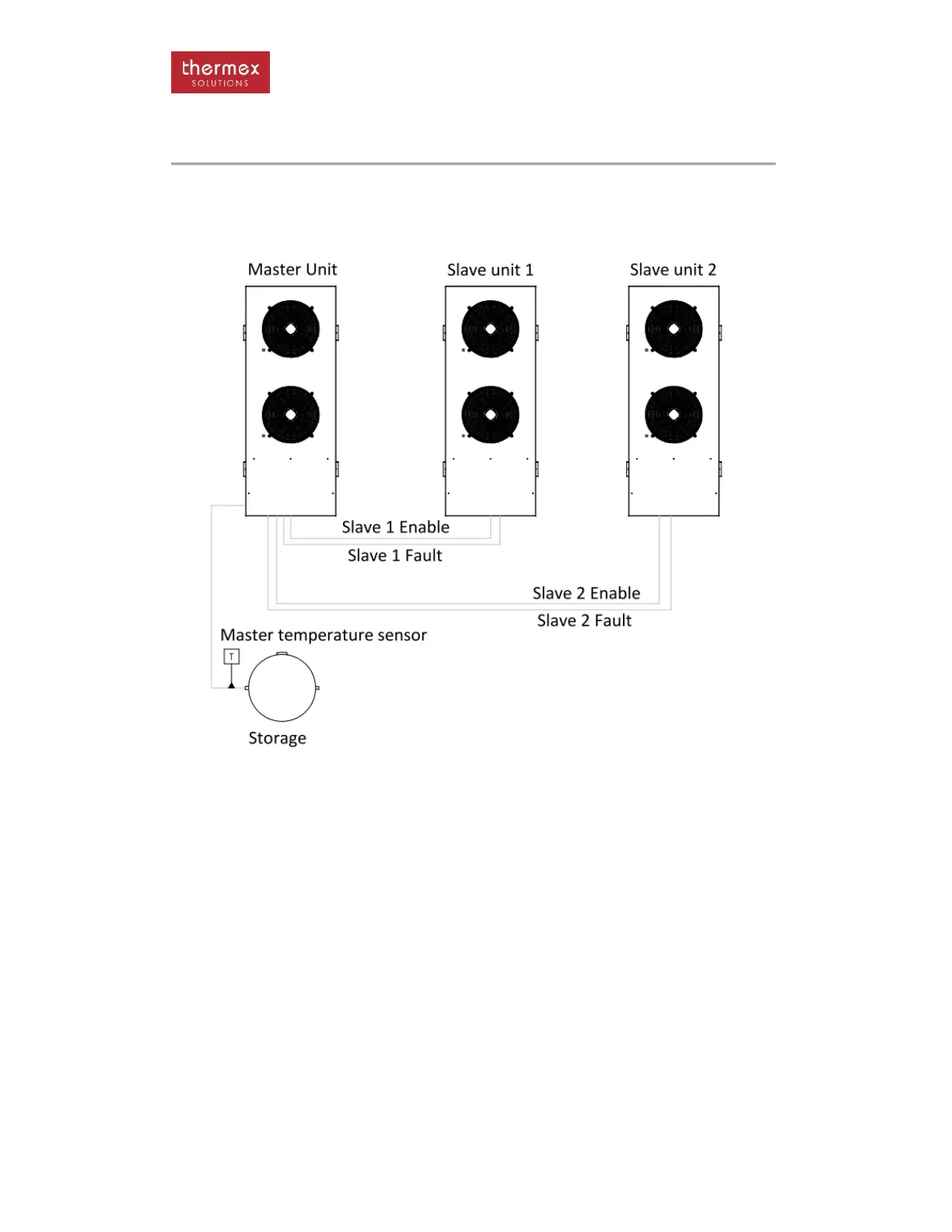

This diagram shows the basic wiring between the master and slave units.
If any of the slaves has a fault then it will report back to the master that is has a fault but the
master will not shut the system down.
