Appendix E

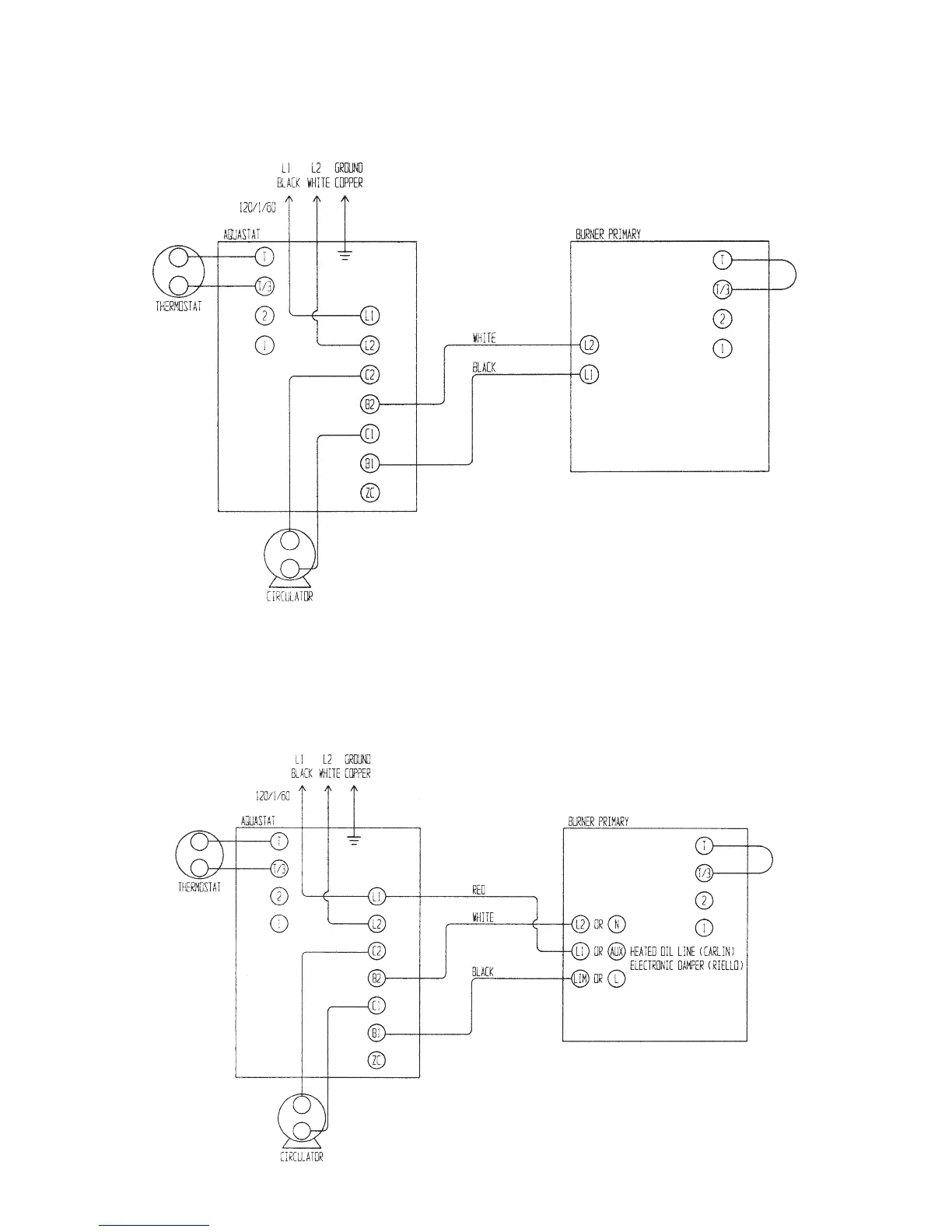

ELECTRICAL DIAGRAM FOR S SERIES BOILERS
TO CONNECT BURNER TO AQUASTAT
(APPLIES TO BECKETT CHIMNEY VENT BURNERS)
ELECTRICAL DIAGRAM FOR S SERIES BOILERS
TO CONNECT BURNER TO AQUASTAT
(APPLIES TO CARLIN CHIMNEY VENT AND RIELLO CHIMNEY VENT BURNERS)
