WIRING NOTE
• Phase (red)
• Element (brown)
• Neutral (black)
Installation Steps
• VR1 (comfort) sets the comfort temperature. Use a screw driver to adjust the temperature
between 18°C and 26°C.
• VR2 (backup) sets the backup temperature. Use a screw driver to set the temperature between
5°C and 15°C. (Recommend to set at low end of scale)
• Connect the timer wires to the power and load wires using appropriate connectors.
• Install the plastic protective barrier (supplied) as shown in fig.2 to ensure segregation between
low voltage and extra low voltage wires or components.
• Push wires into wall box and using the two screws provided secure the timer to the wall box.
Timer Only (outdoor undercover)
• To use the TT-MTC2-4A as a timer only, no thermostat control simply connect a 15K ohm
resistor to the green terminals labeled THERMO SENSOR on the back of the unit. Then adjust
VR1 to 26°C and VR2 to 5°C.

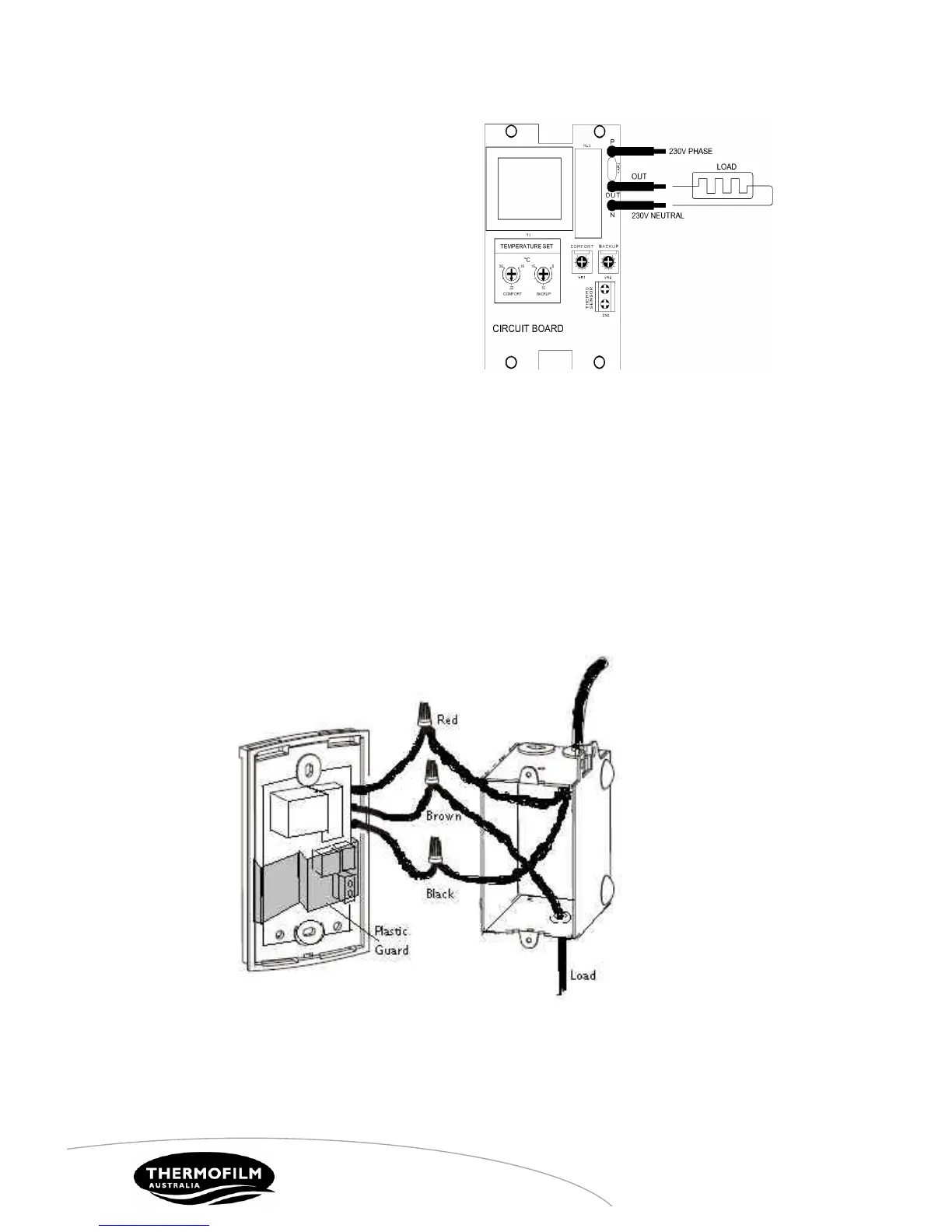

Fig.1
Fig.2
