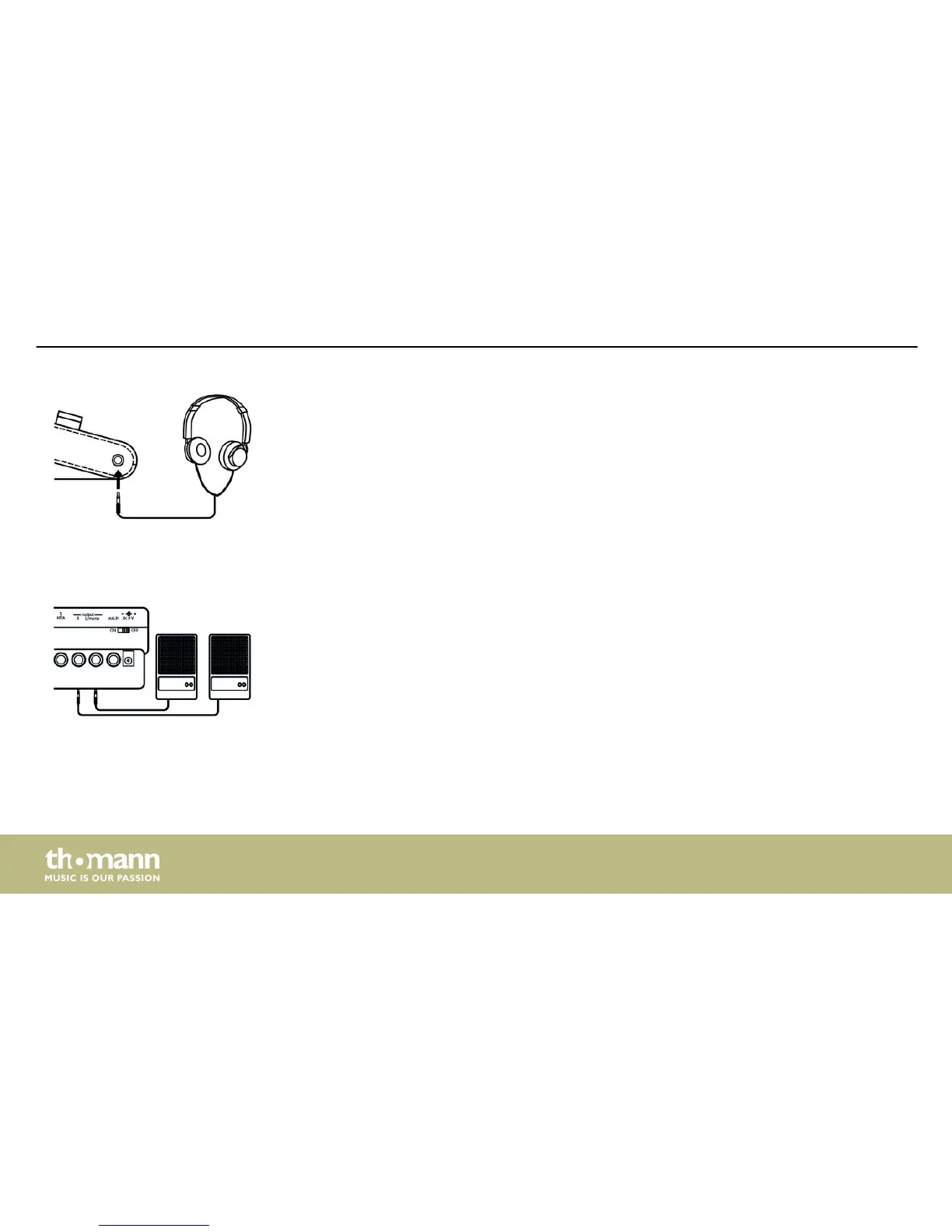

Connect the inputs of your amplifier or powered speaker to the ‘OUTPUT’ sockets of the drum
module. When using a mono amp, connect its input to the ‘L/MONO’ output socket of the
module.
Connect external MIDI devices to the ‘MIDI IN’ connections of the drum module.
Connecting audio devices
Connecting MIDI devices
Installation
e-drum module
