13 e-drum module stand
14 Hi-hat pedal

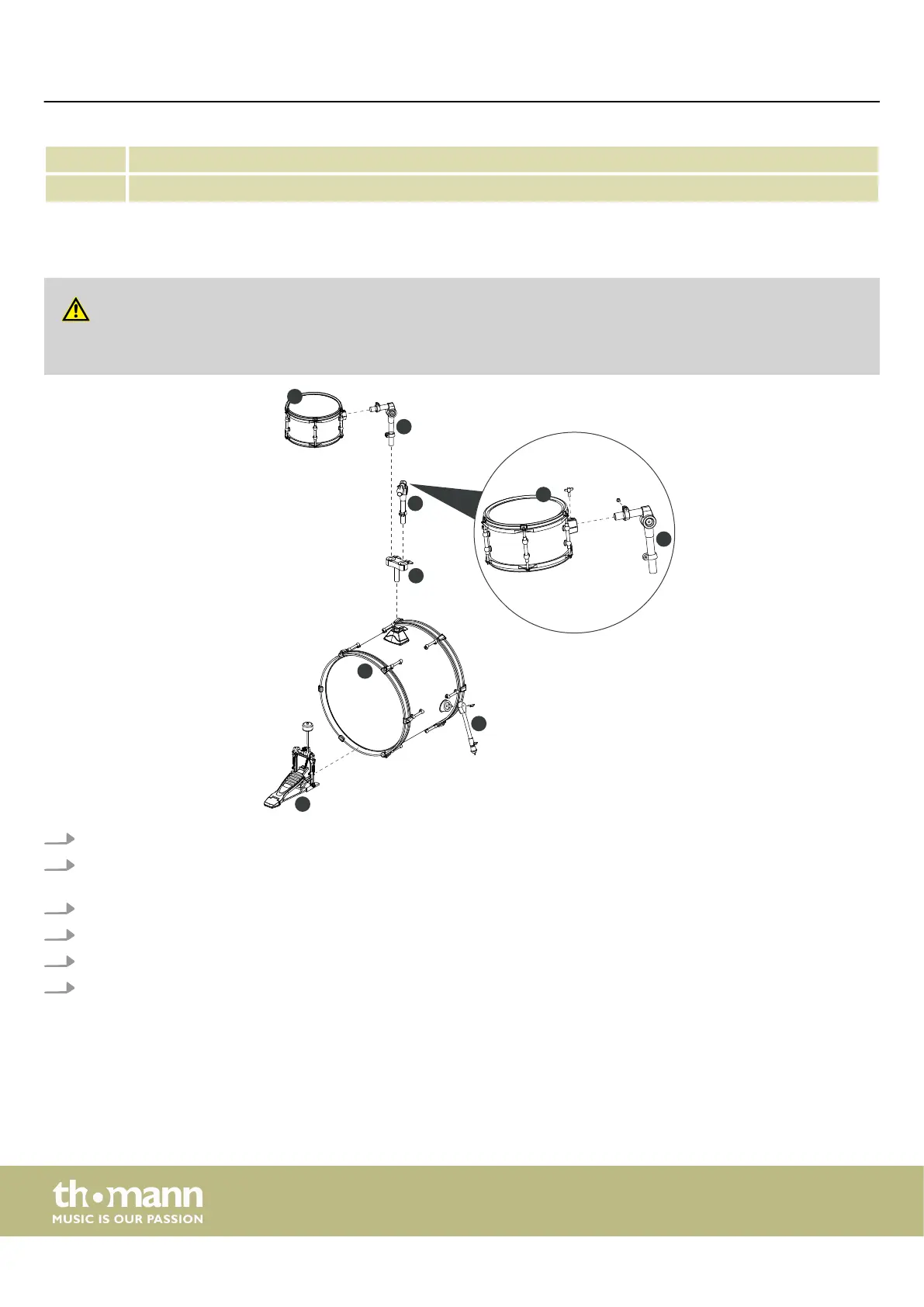

Bass drum and Tom pads
CAUTION!
Danger of cuts on hands and ngers
When connecting the parts, take care for sharp edges on the stands, screws etc.
1. Fasten the two bass drum spurs (1) to the bass drum (2) with the wing nuts of the fastening clamps.
2. Fasten the bass drum pedal (3) to the hoop of the bass drum (2), place the pedal in the appropriate position and attach it to
the pedal with the wing nut.
3. Attach the tom holder mount (4) in the recess provided in the bass drum (2) with the wing nut of the fastening clamps.
4. Attach the tom holders (5) in the tom holder bracket (4) and hand-tighten the screws of the fastening clamps.
5. Place the tom pads (6, 7) in the tom holder (5) and hand-tighten the screws of the fastening clamps.
6. Align the tom pads according to your needs and then tighten the screws of the tom holder mount (4) and tom holder (5)
evenly.
Assembly
e-drum set
8
