Assembly steps

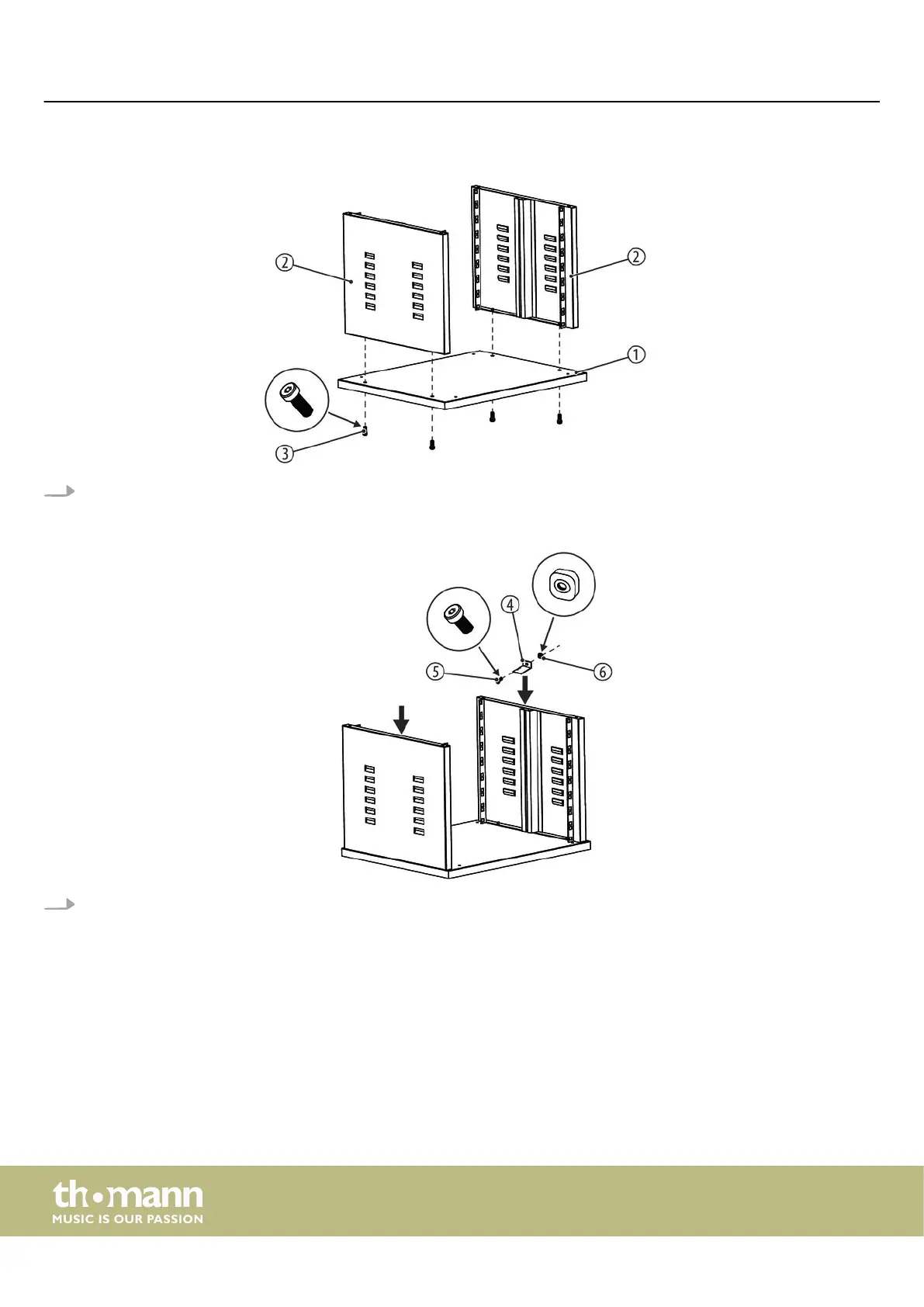

1. Turn the baseplate (1) so that you can screw the two side panels (2) in the baseplate (1) with each two Allen screws
M6 × 20 (3) using the Allen key supplied.
Use a soft padding to prevent damage to the mounting or housing surface.
2. Place the assembled unit with the baseplate facing down on a suitable mounting surface. Use a soft padding to prevent
damage to the mounting or housing surface.
Screw the heavy duty angles (4), the M6 × 15 Allen screws (5) and the heavy duty angle nuts (6) in the guide rails of the side
panels using the Allen wrench as shown. Make sure that the heavy duty angle nut (6) is inside the guide rail.
Installation
studio rack
8
