Thomas AP-30 - YP-70 VC Diaphragm Switch Deactivation Instruction

7

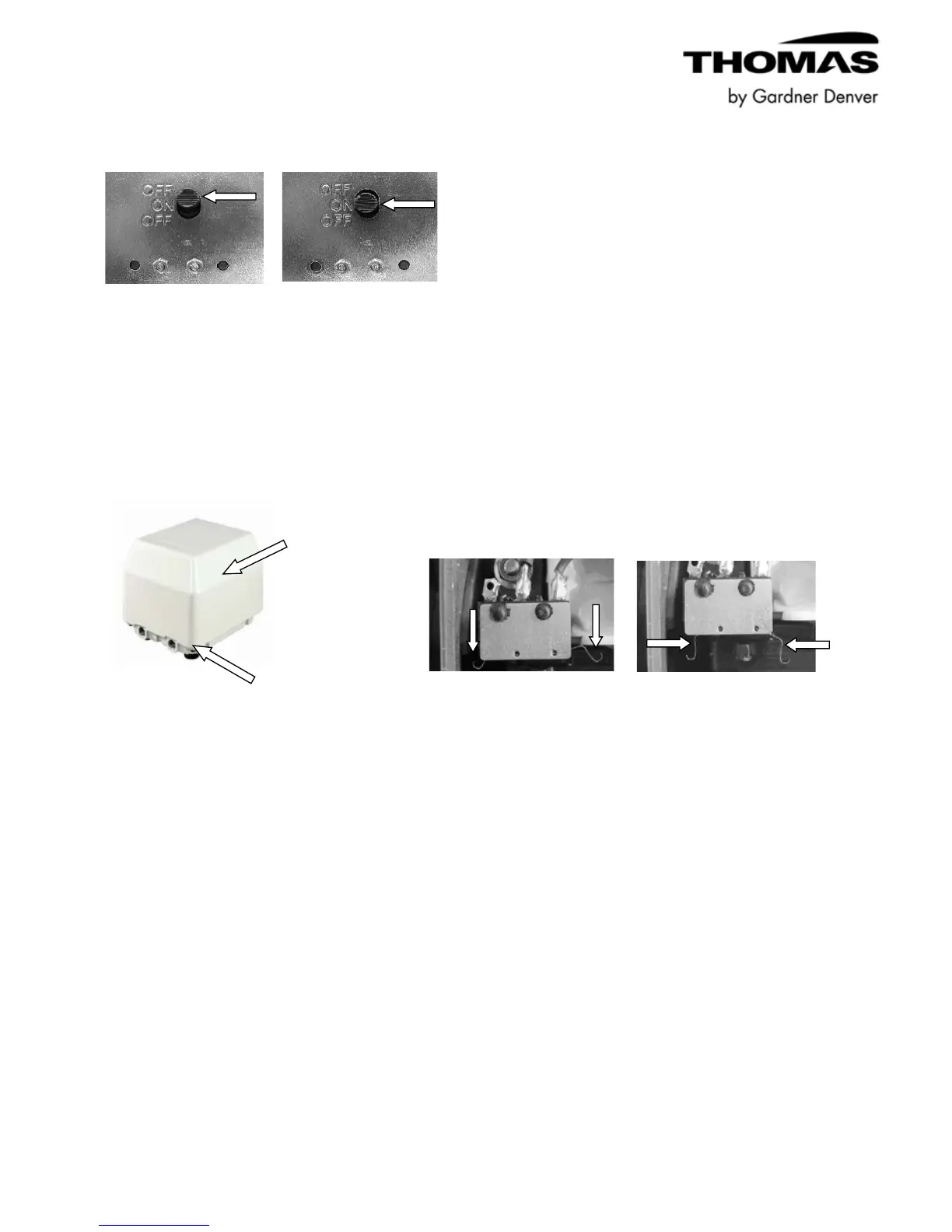

After positioning diaphragm protection switch
lever to “ON” position to deactivate switch,
reassemble unit.
Diaphragm protective Diaphragm protective
switch activated. switch not activated.
(Pump will not run.) (Normal operation mode.)
YP-70VC Diaphragm Switch Deactivation Instruction:
Disconnect power.
Remove housing screws and housing.
For more information, please see www.gd-thomas.com.
The information contained in this document is the property of Gardner Denver Thomas. This
document, or parts thereof, may not be made available, directly or indirectly, to third parties, nor
published or distributed in any manner without written consent.
Gardner Denver Thomas GmbH
Livry-Gargan-Str. 10
82256 Fürstenfeldbruck/Germany
YP Housing
(4) Housing screws
After positioning diaphragm protection switch
levers to proper positions to deactivate switch,
reassemble unit.
Diaphragm protective Diaphragm protective
switch activated. switch not activated.
(Pump will not run.) (Normal operation mode.)
