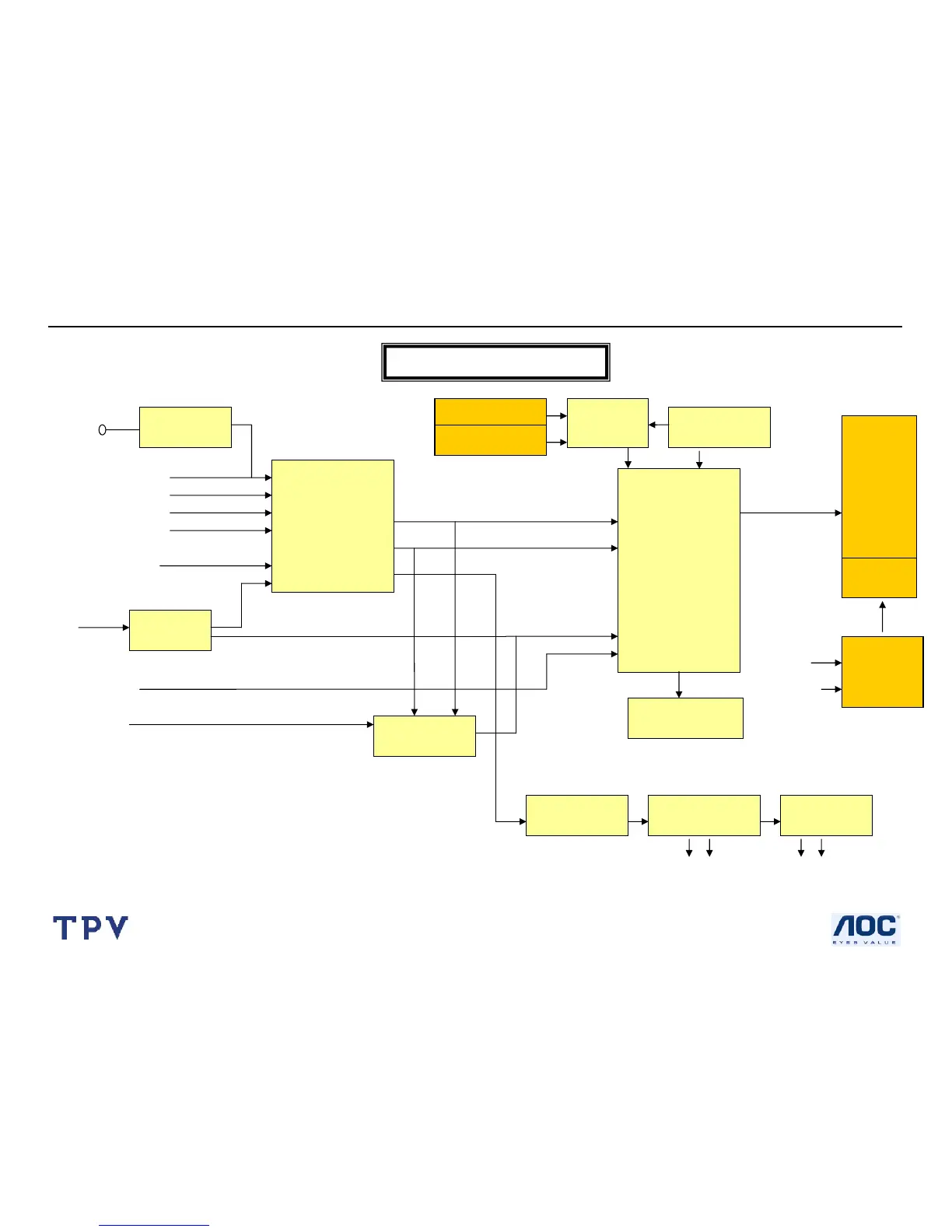

9. Block Diagram
9.1 Main board
32” TV Main Board
Trident
EX52 Scalar
De-interlace
OSD
TxT/CC
Key PAD Board M30620SP
GP
CPU
IR/LED Board
Flash memory
A29040BL
EM6A9320BI-5MG
DDR
Power
Board
(Built in)
Inverter
32”
Panel
DC Output
AC 110/240 V
SAA7117A
Video Decoder
Panasonic Selector
AN15857A
Sil9011
HDMI
Video(24bits R/G/B)
SCART1 (CVBS)
SCART2 (CVBS/Y/C)
Audio
Philips
Tuner
ANT
AV (CVBS)
S-VIDEO
CVBS
Y/C
SCART1 (RGB)
All mode Audio
MSP3410G
Audio Decoder
PT2308S
Headphone driver
MAX9704
AMPLIFIER
Earphone Speaker
VGA RGB
Component
Audio
