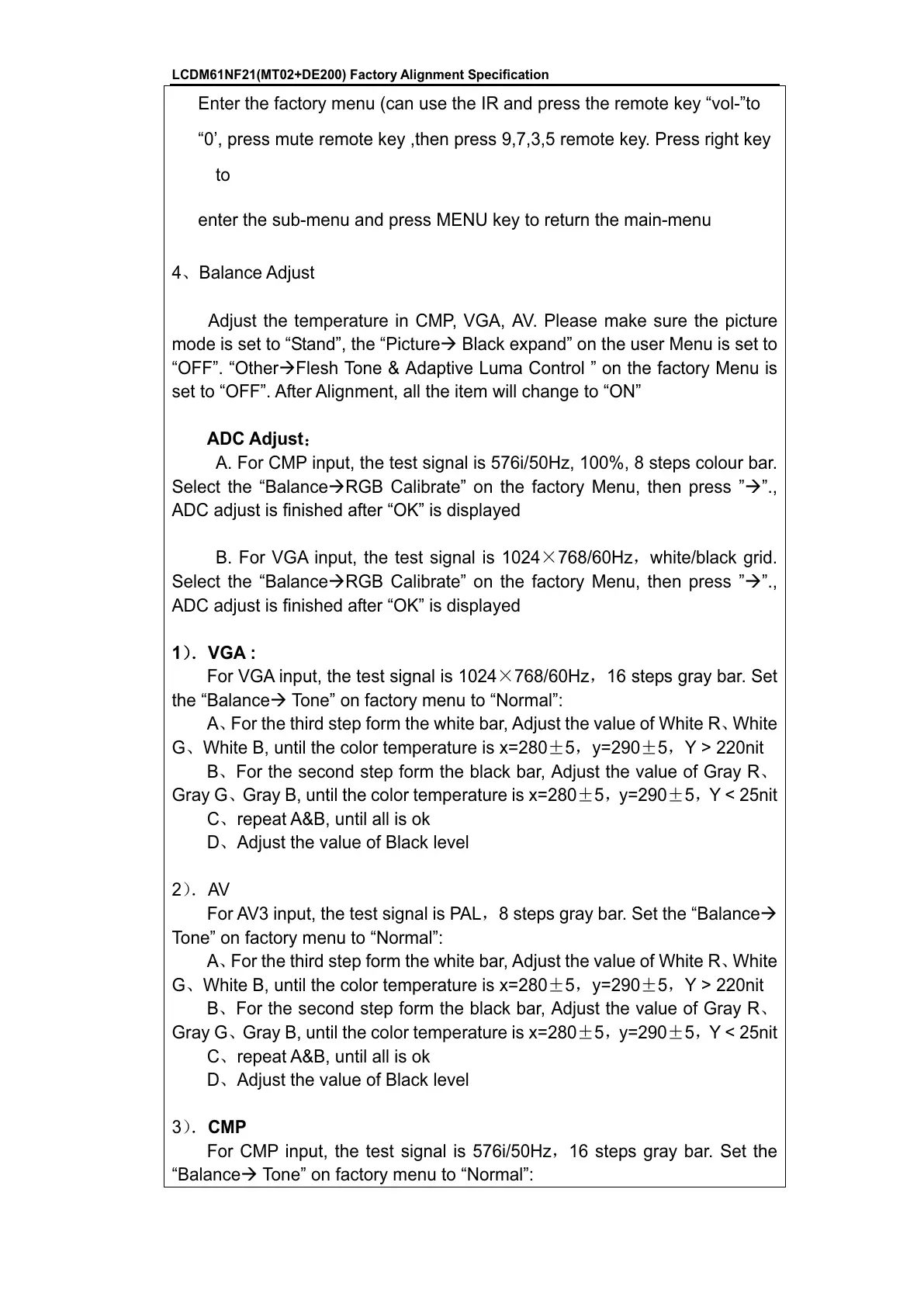

LCDM61NF21(MT02+DE200) Factory Alignment Specification
Enter the factory menu (can use the IR and press the remote key “vol-”to
“0’, press mute remote key ,then press 9,7,3,5 remote key. Press right key
to
enter the sub-menu and press MENU key to return the main-menu
4ǃBalance Adjust
Adjust the temperature in CMP, VGA, AV. Please make sure the picture
mode is set to “Stand”, the “PictureÆ Black expand” on the user Menu is set to
“OFF”. “OtherÆFlesh Tone & Adaptive Luma Control ” on the factory Menu is
set to “OFF”. After Alignment, all the item will change to “ON”
ADC Adjust
˖
A. For CMP input, the test signal is 576i/50Hz, 100%, 8 steps colour bar.
Select the “BalanceÆRGB Calibrate” on the factory Menu, then press ”Æ”.,
ADC adjust is finished after “OK” is displayed
B. For VGA input, the test signal is 1024h768/60Hzˈwhite/black grid.
Select the “BalanceÆRGB Calibrate” on the factory Menu, then press ”Æ”.,
ADC adjust is finished after “OK” is displayed
1
˅ˊ
VGA :
For VGA input, the test signal is 1024h768/60Hzˈ16 steps gray bar. Set
the “BalanceÆ Tone” on factory menu to “Normal”:
AǃFor the third step form the white bar, Adjust the value of White RǃWhite
GǃWhite B, until the color temperature is x=280f5ˈy=290f5ˈY > 220nit
BǃFor the second step form the black bar, Adjust the value of Gray Rǃ
Gray GǃGray B, until the color temperature is x=280f5ˈy=290f5ˈY < 25nit
Cǃrepeat A&B, until all is ok
DǃAdjust the value of Black level
2˅ˊAV
For AV3 input, the test signal is PALˈ8 steps gray bar. Set the “BalanceÆ
Tone” on factory menu to “Normal”:
AǃFor the third step form the white bar, Adjust the value of White RǃWhite
GǃWhite B, until the color temperature is x=280f5ˈy=290f5ˈY > 220nit
BǃFor the second step form the black bar, Adjust the value of Gray Rǃ
Gray GǃGray B, until the color temperature is x=280f5ˈy=290f5ˈY < 25nit
Cǃrepeat A&B, until all is ok
DǃAdjust the value of Black level
3˅ˊCMP
For CMP input, the test signal is 576i/50Hzˈ16 steps gray bar. Set the
“BalanceÆ
Tone” on factory menu to “Normal”:
