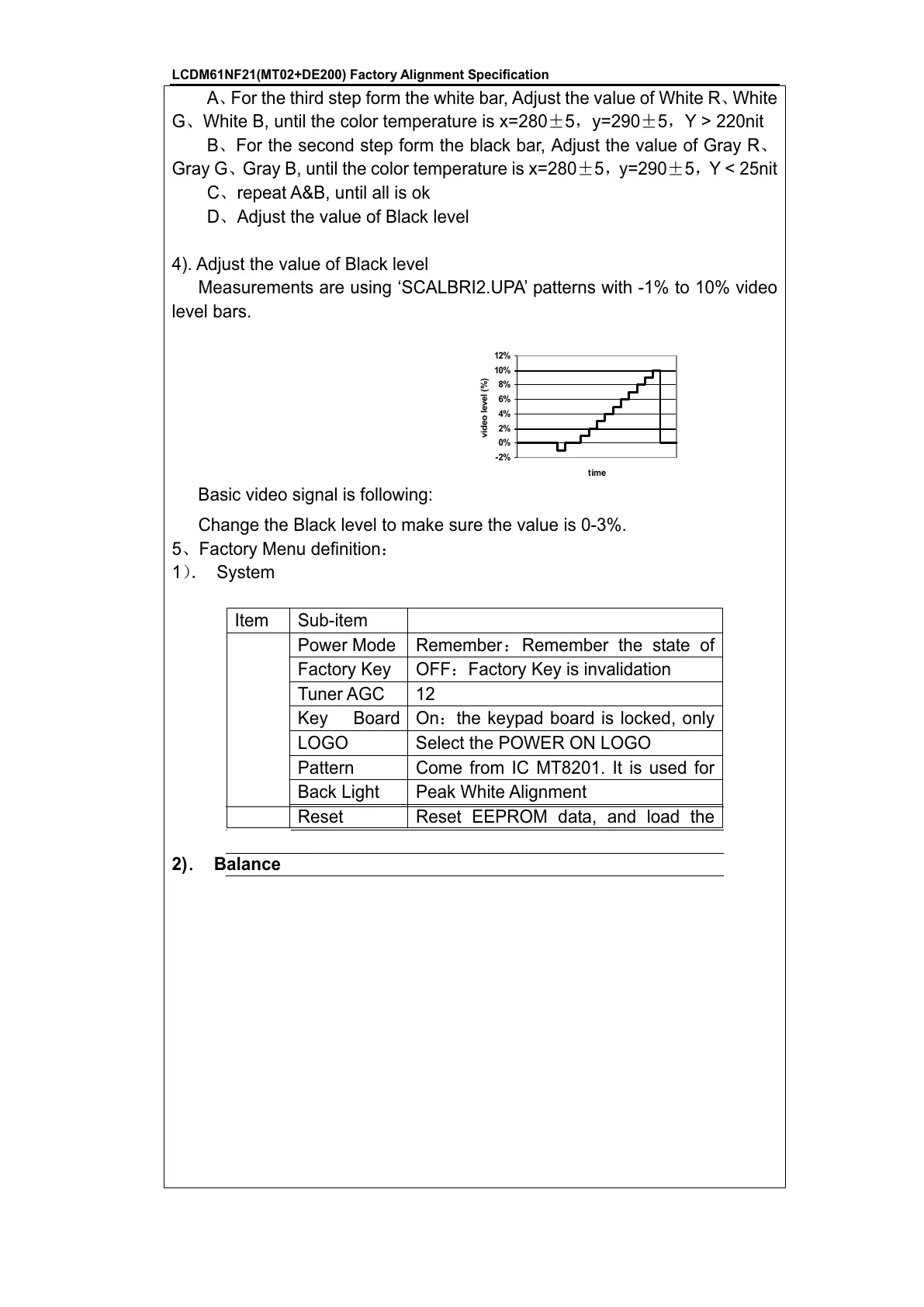

LCDM61NF21(MT02+DE200) Factory Alignment Specification
AǃFor the third step form the white bar, Adjust the value of White RǃWhite
GǃWhite B, until the color temperature is x=280f5ˈy=290f5ˈY > 220nit
BǃFor the second step form the black bar, Adjust the value of Gray Rǃ
Gray GǃGray B, until the color temperature is x=280f5ˈy=290f5ˈY < 25nit
Cǃrepeat A&B, until all is ok
DǃAdjust the value of Black level
4). Adjust the value of Black level
Measurements are using ‘SCALBRI2.UPA’ patterns with -1% to 10% video
level bars.
Basic video signal is following:
-2%
0%
2%
4%
6%
8%
10%
12%
time
video level ( %)
Change the Black level to make sure the value is 0-3%.
5ǃFactory Menu definition˖
1˅ˊ System
Item Sub-item
Power Mode Remember˖Remember the state of
Factory Key OFF˖Factory Key is invalidation
Tuner AGC 12
Key Board On˖the keypad board is locked, only
LOGO Select the POWER ON LOGO
Pattern Come from IC MT8201. It is used for
Back Light Peak White Alignment
Reset Reset EEPROM data, and load the
2)
