THOMSON 42M61NF21 - Page 15

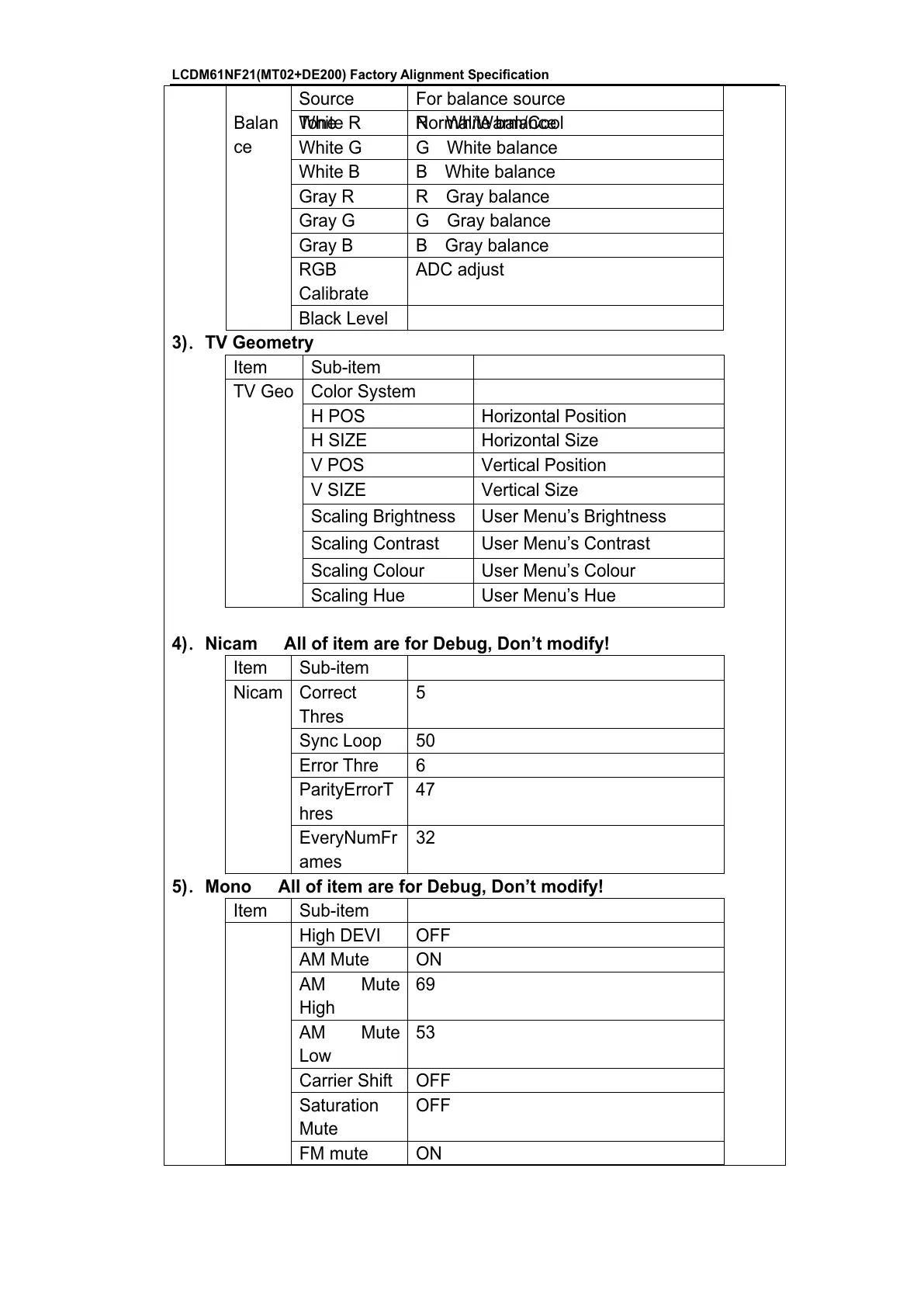

LCDM61NF21(MT02+DE200) Factory Alignment Specification
Source For balance source
Tone Normal/Warm/Cool White R R White balance
White G G White balance
White B B White balance
Gray R R Gray balance
Gray G G Gray balance
Gray B B Gray balance
RGB
Calibrate
ADC adjust
Balan
ce
Black Level
3)
ˊ
TV Geometry
Item Sub-item
Color System
H POS Horizontal Position
H SIZE Horizontal Size
V POS Vertical Position
V SIZE Vertical Size
Scaling Brightness User Menu’s Brightness
Scaling Contrast User Menu’s Contrast
Scaling Colour User Menu’s Colour
TV Geo
Scaling Hue User Menu’s Hue
4)
ˊ
Nicam All of item are for Debug, Don’t modify!
Item Sub-item
Correct
Thres
5
Sync Loop 50
Error Thre 6
ParityErrorT
hres
47
Nicam
EveryNumFr
ames
32
5)
ˊ
Mono All of item are for Debug, Don’t modify!
Item Sub-item
High DEVI OFF
AM Mute ON
AM Mute
High
69
AM Mute
Low
53
Carrier Shift OFF
Saturation
Mute
OFF
FM mute ON
