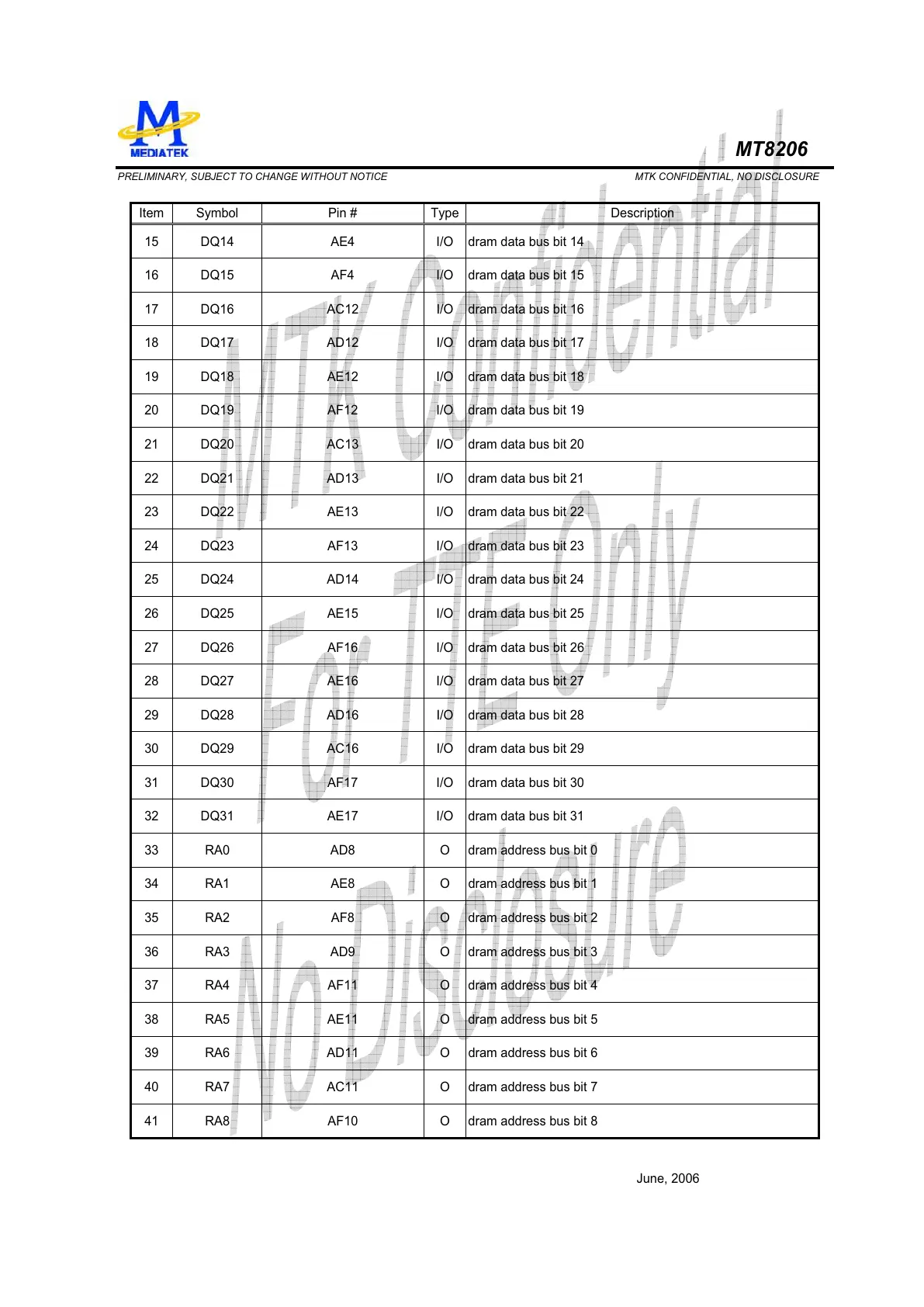

MT8206
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
June, 2006
Item Symbol Pin # Type Description
15 DQ14 AE4 I/O dram data bus bit 14
16 DQ15 AF4 I/O dram data bus bit 15
17 DQ16 AC12 I/O dram data bus bit 16
18 DQ17 AD12 I/O dram data bus bit 17
19 DQ18 AE12 I/O dram data bus bit 18
20 DQ19 AF12 I/O dram data bus bit 19
21 DQ20 AC13 I/O dram data bus bit 20
22 DQ21 AD13 I/O dram data bus bit 21
23 DQ22 AE13 I/O dram data bus bit 22
24 DQ23 AF13 I/O dram data bus bit 23
25 DQ24 AD14 I/O dram data bus bit 24
26 DQ25 AE15 I/O dram data bus bit 25
27 DQ26 AF16 I/O dram data bus bit 26
28 DQ27 AE16 I/O dram data bus bit 27
29 DQ28 AD16 I/O dram data bus bit 28
30 DQ29 AC16 I/O dram data bus bit 29
31 DQ30 AF17 I/O dram data bus bit 30
32 DQ31 AE17 I/O dram data bus bit 31
33 RA0 AD8 O dram address bus bit 0
34 RA1 AE8 O dram address bus bit 1
35 RA2 AF8 O dram address bus bit 2
36 RA3 AD9 O dram address bus bit 3
37 RA4 AF11 O dram address bus bit 4
38 RA5 AE11 O dram address bus bit 5
39 RA6 AD11 O dram address bus bit 6
40 RA7 AC11 O dram address bus bit 7
41 RA8 AF10 O dram address bus bit 8
